SICK W12 - Page 81

WTF12L-xxxxx2xx:
0
2
(0.08)
100
(3.94)
50
(1.97)
0
y
x
Minimum object height in mm (inch)
Example:
Reliable detection of the object
Background
Distance in mm (inch)
Recommended sensing range for
the best performance
10
(0.39)
8
(0.31)
6
(0.24)
4
(0.16)
150
(5.91)
y
x
White background (90 % radiance factor)
Distance of sensor to background x = 80 mm
Required minimum object height y = 0.7 mm
For all objects regardless of their colors
6%/90%
90%/90%
2
1
6%/6%
90%/6%

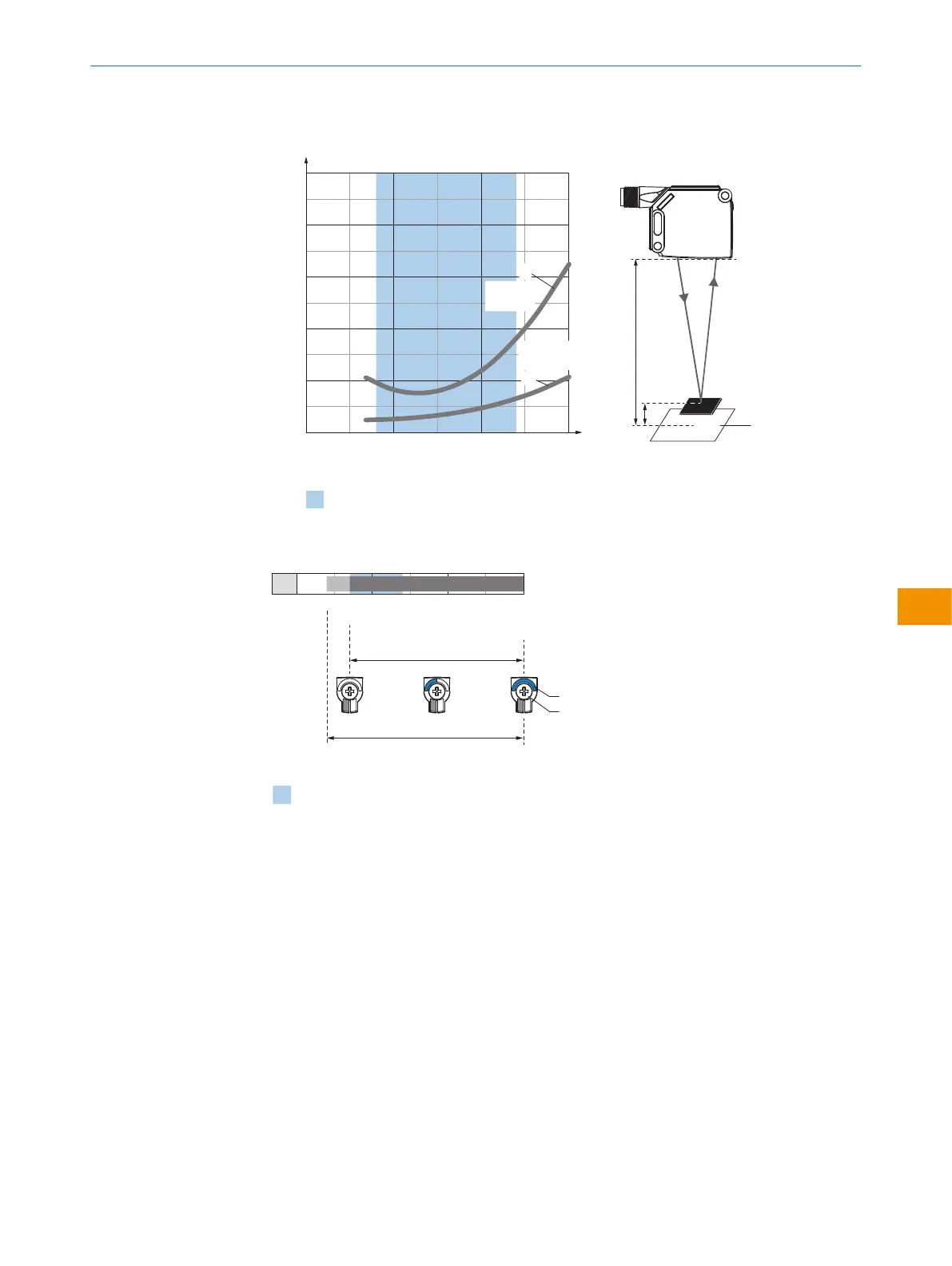

Illustration 6: WTF12L-xxxxx2xx
0
Distance in mm (inch)
20 150
35
D
C
A B
BluePilot
E
F
Recommended sensing range for the best performance
100
(3.94)
50
(1.97)
150
(5.91)
Illustration 7: WTF12L-xxxxx2xx
A Distance de commutation min. en mm
B Distance de commutation max. en mm
C Champ de vision
D Plage de réglage seuil de commutation pour l’élimination de premier plan
E Indication de la distance de commutation
F Bouton poussoir rotatif
bleue Plage de distance de commutation recommandée pour la meilleure performance
