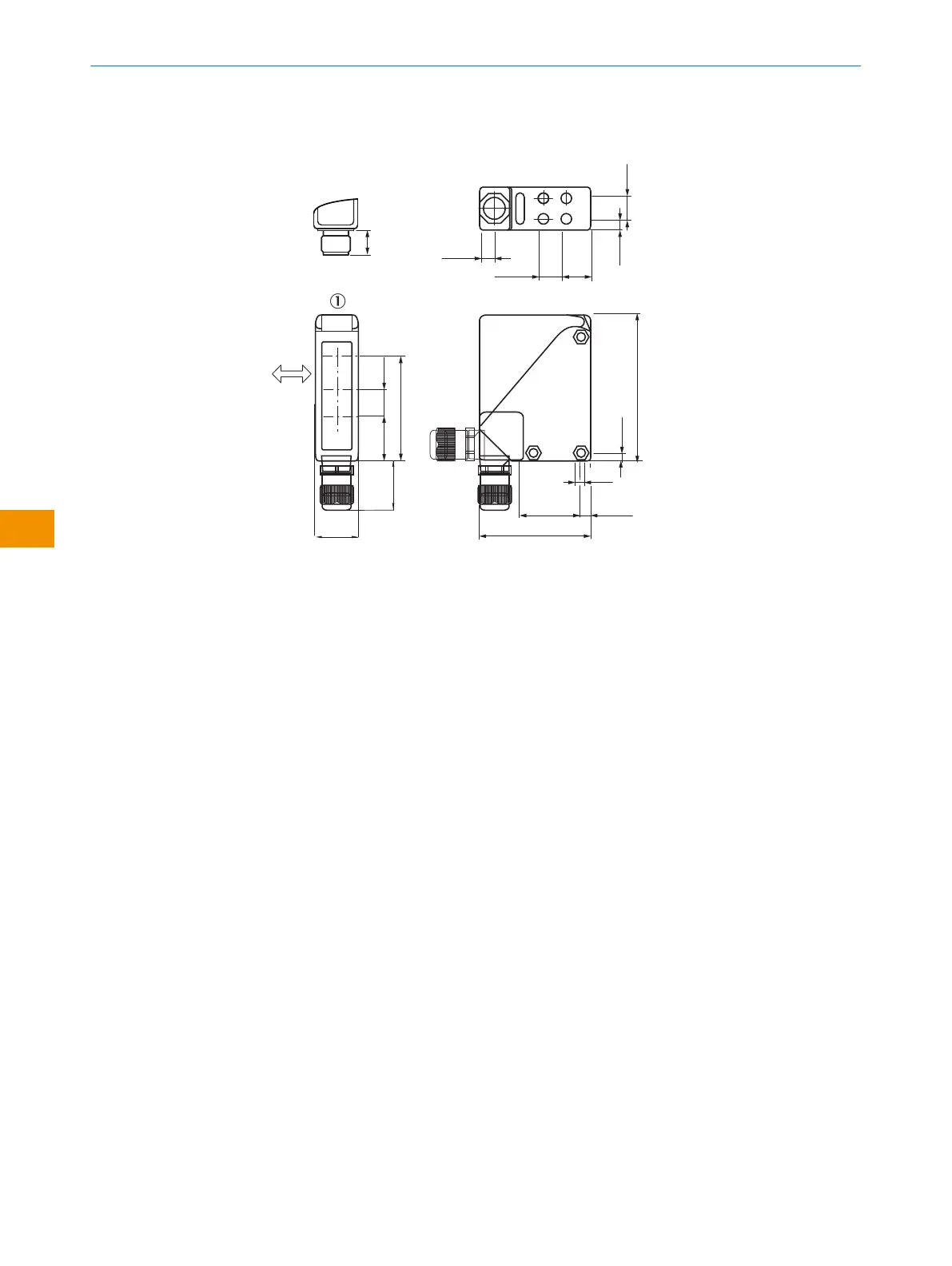

12.1 Dimensional drawing
6
1
2
7
8
27
(1.06)
max. 32
(1.26)
14
(0.55)
6.5
(0.26)
10.5
(0.41)
14
(0.55)
15.5
(0.61)
70 (2.76)
M5
6.2
(0.24)
30 (1.18)
92 (3.62)
5
(0.20)
3
4
5
6
15
(0.59)
26
(1.02)
61 (2.40)
14,4
(0.57)
8
Figure 8: Dimensional drawing
1
Alignment sight
2
Yellow LED
3
Preferred direction of the target object
4
Center of optical axis / Sender
5
Center of optical axis / receiver at close range
6
Center of optical axis / receiver at long range
7
Mounting hole ø 5.5mm, both sides for hexagon nut M5
8
M16 fitting or male connector can be rotated by 90°
13 Annex
13.1 Conformities and certificates
You can obtain declarations of conformity, certificates, and the current operating
instructions for the product at www.sick.com. To do so, enter the product part number
in the search field (part number: see the entry in the “P/N” or “Ident. no.” field on the
type label).
