8.4 Cable Routing

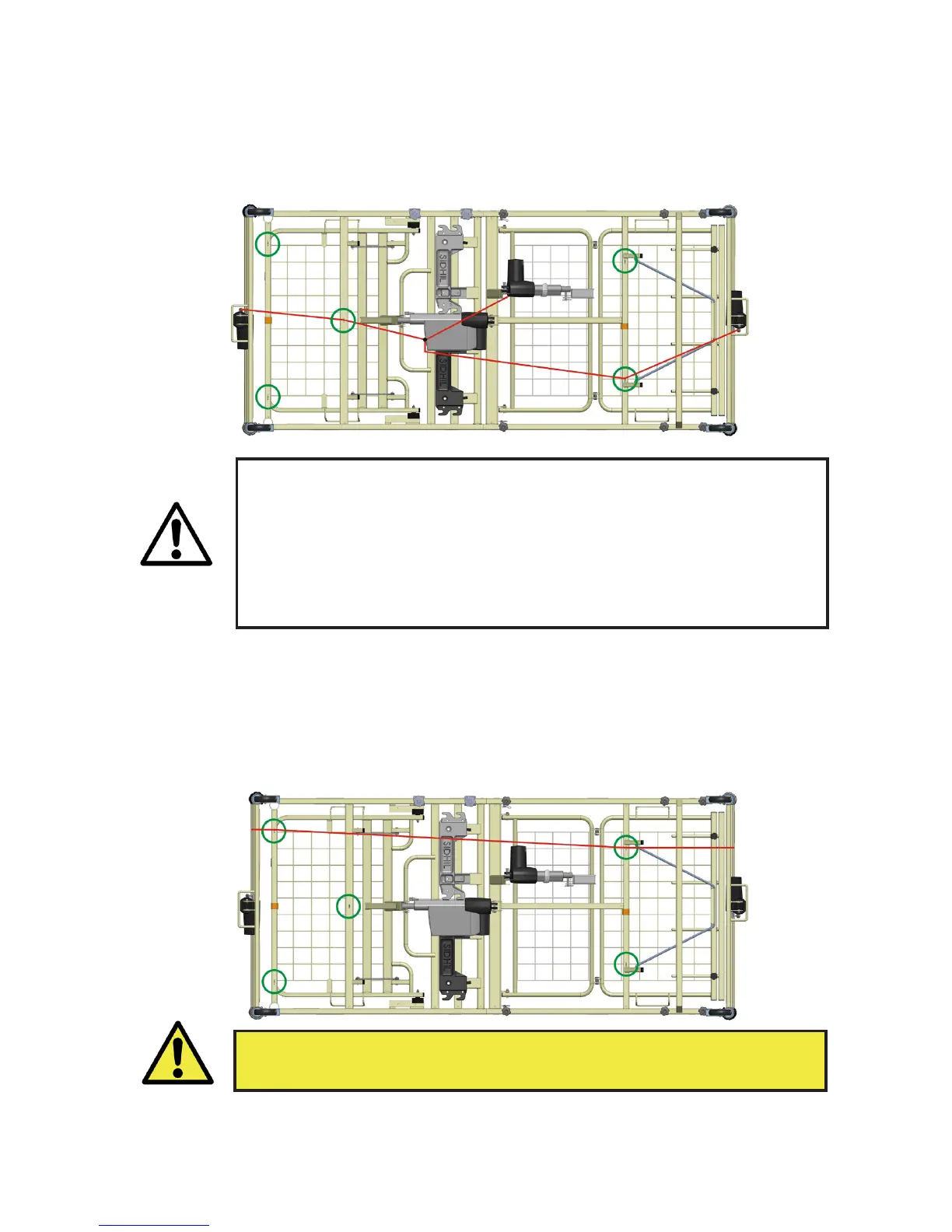

The actuator cables are to be routed on the bed frame as shown below:
• Ensureallcablesarefreefrommovingpartsandarenotunder 
excessive tension.
• Ensurethetwohigh/lowactuatorsarepluggedintothecorrect
ports, If the tilt function is not functioning as expected the cables
may have been incorrectly located, double check against the diagram
on the control box.
Caution
8.5 Ancillary Product Cable Routing
When fitting ancillary electrical equipment the ancillary mains cable is to be routed
using the plastic clips located underneath the bed.
Ensure all cables are free from moving parts and are not under excessive
tension.
Warning
Cable Clips
Cable Route
Cable Clips
Cable Route
