Sidite SR882 - Technical Data

SR882 operation manual
~ 12 ~

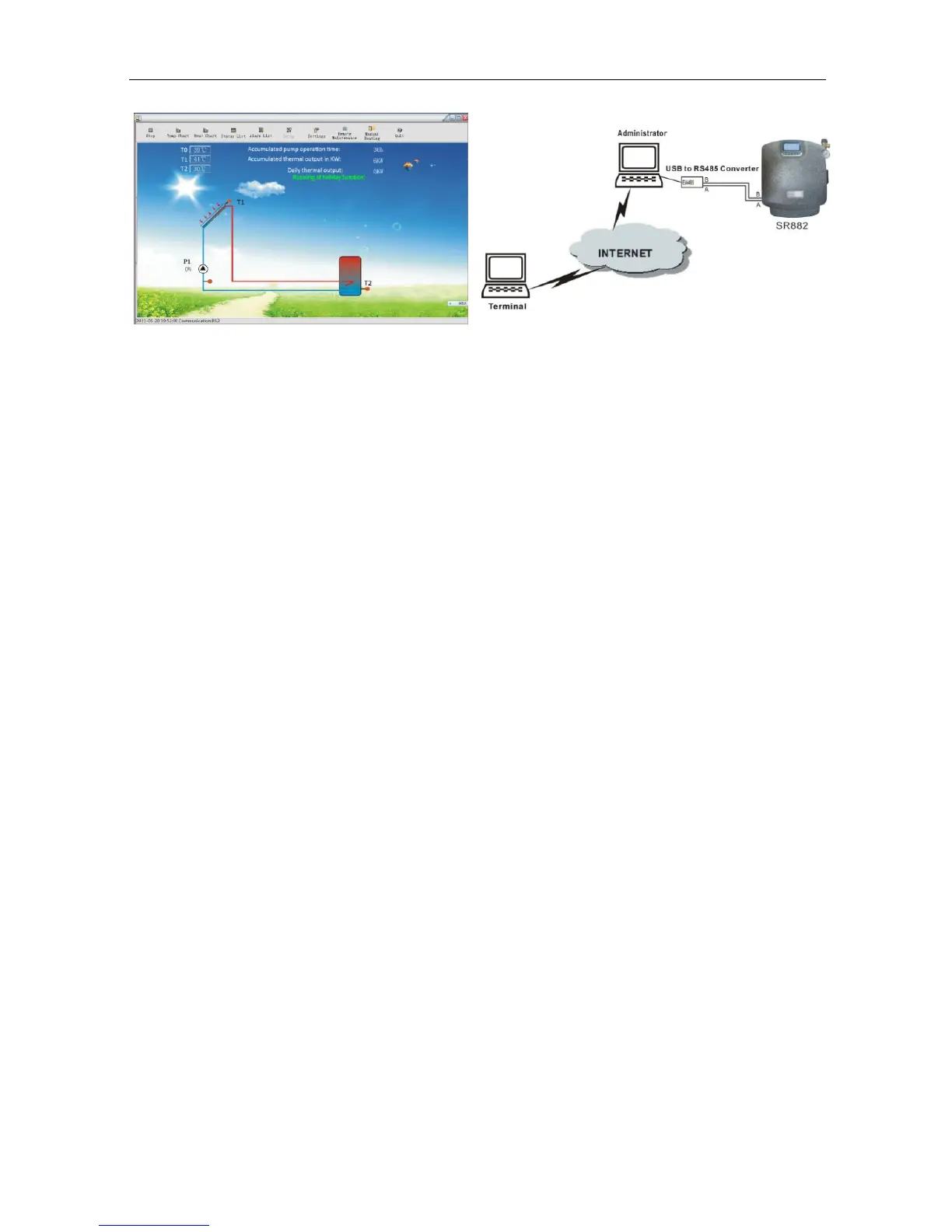

Picture 3 Picture 4
2.2 Technical data
 Material of cases: ABS
 Available ambient temperature: 0 ... 40
o
C
 Dimensions: 188 x 138 x 43 mm
 Mounting: on wall or in the electrical cases
 Operation button: 6 operation buttons on panel
 Communication port: SD card groove.
 Power supply: 100 ... 240V ~, 50 ... 60 H z
 Power consumption :＜ 1W
 Accuracy of temperature measuring : ±2
o
C
 Range of collector temperature measuring: -10- 200
o
C
 Range of tank or pipe temperature measuring: 0-110
o
C
 Inputs: 1 x Pt1000 sensor (≤500
o
C) for collector (silicon cable≤280
o
C),
5 x NTC10K, B3950 sensor (≤ 135
o
C) for tank, (PVC cable ≤105
o
C),
1 x RS485 remote control connection
 Outputs： 1 PWM outputs（≤200W）
1 relays outputs ( each available power≤300W）
1 output for electrical booster (available power≤1500W)
 Ambient temperature：-10-50
o
C
 Water proof grade：IP40
Note: SD card isn’t included within the delivery scope of controller.
