SR882 operation manual
~ 14 ~
up to 100m, and then 1.5mm
2
cable should be used.

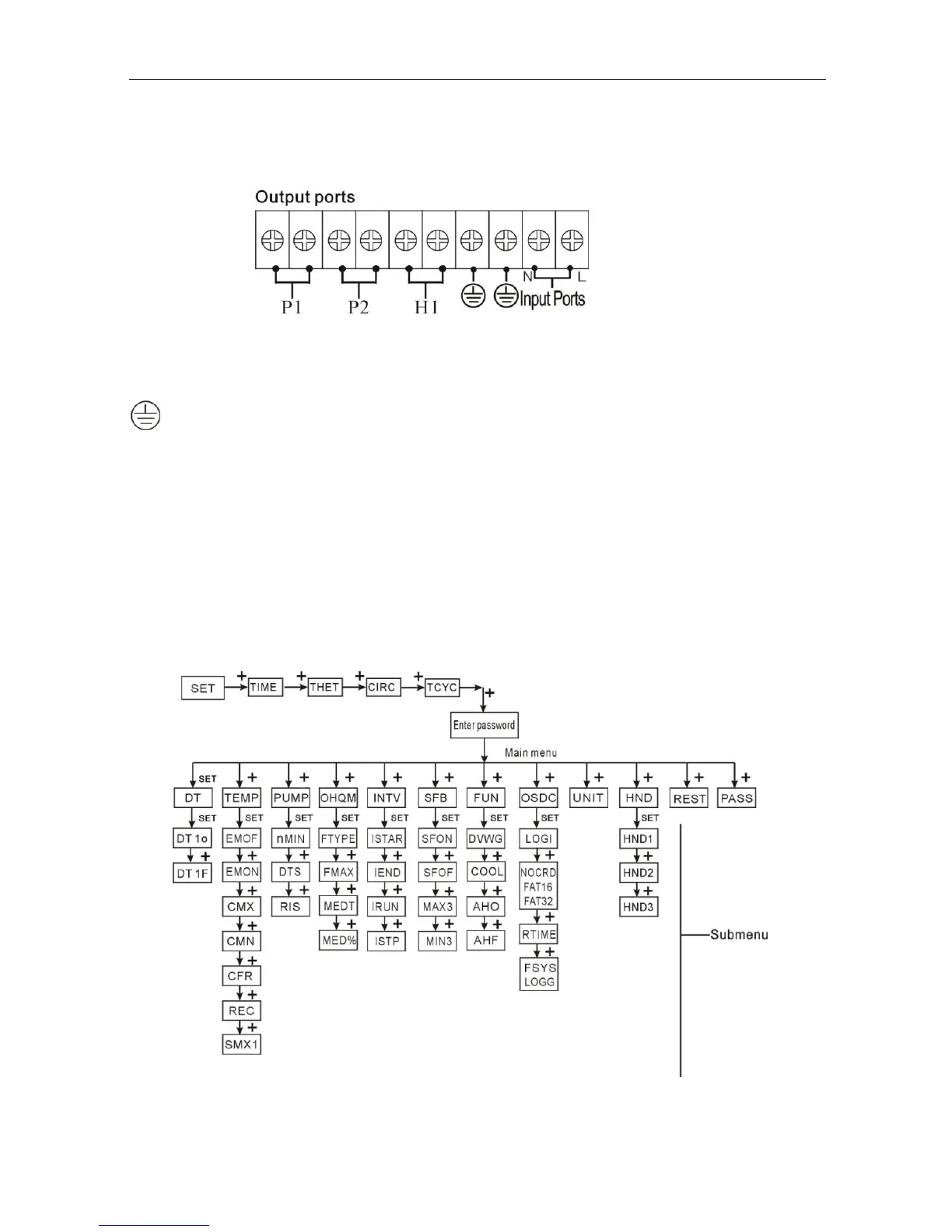

Output ports
Power terminal : L, N,GND
Input ports L, N is power connection terminal, please connect correctly.
is Ground line terminal.
Output P1：For solar circuit pump, also suitable for RMP control, semiconductor relay, max.
switching current 1A.
Output P2：Electromagnetic relay, its max. switching current 3.5A.
Output H1：For back-up electrical heater, electromagnetic relay, max. switching current
10A,
2.4 Menu Structure
Submenu:
Through submenu, user can set the parameter as desired value, please check it carefully.
