2.
Thread film end p (Fig.
6)
emerging
from film channel
between
loop
stabi-
lizer
i and pressure
roller
h,
around sound drum
I,
over
filter
roller
m and
under
sprocket
n.
3.
Close sprocket
contact
lever
g.
4.
Take film end
over
guide
roller
rand
under
guide
roller
q (
Fi
g.
6)
to take-up
reel and thread film
in
reel.
5.
Press
release
button o (Fig.
7)
to
enable
pressure
roller
h (Figs.
6,
7).
6.
Pull film
loop
below
lens
holder
downward
so that film lies sm
oothly
be-
tween
sound drum I and
loop
stabilizer
i (Figs.
6,
7).
If
lower
loop
is
too
small, pull
more
film
down
through film channel and
enlarge
upper
loop
by
pu lling
more
film from supply reel.
7.
Check running
of
film by
briefly
switch
in
g on
projector
us
in
g the automatic
inching button .
Threading
film
for
silent
projection
With
si
lent
projection,
the film
is
not
passed through the sound
head
as
in
th
e
case
of
sound film
projection.
The film
is
threaded
around
lower
sprocket n
(Fig.
6)
so that
sprocket
teeth mesh
with
sprocket holes
in
film by
pr
essing
down
pressure
roller
h (Fig.
6)
and locking
in
axial
direction.

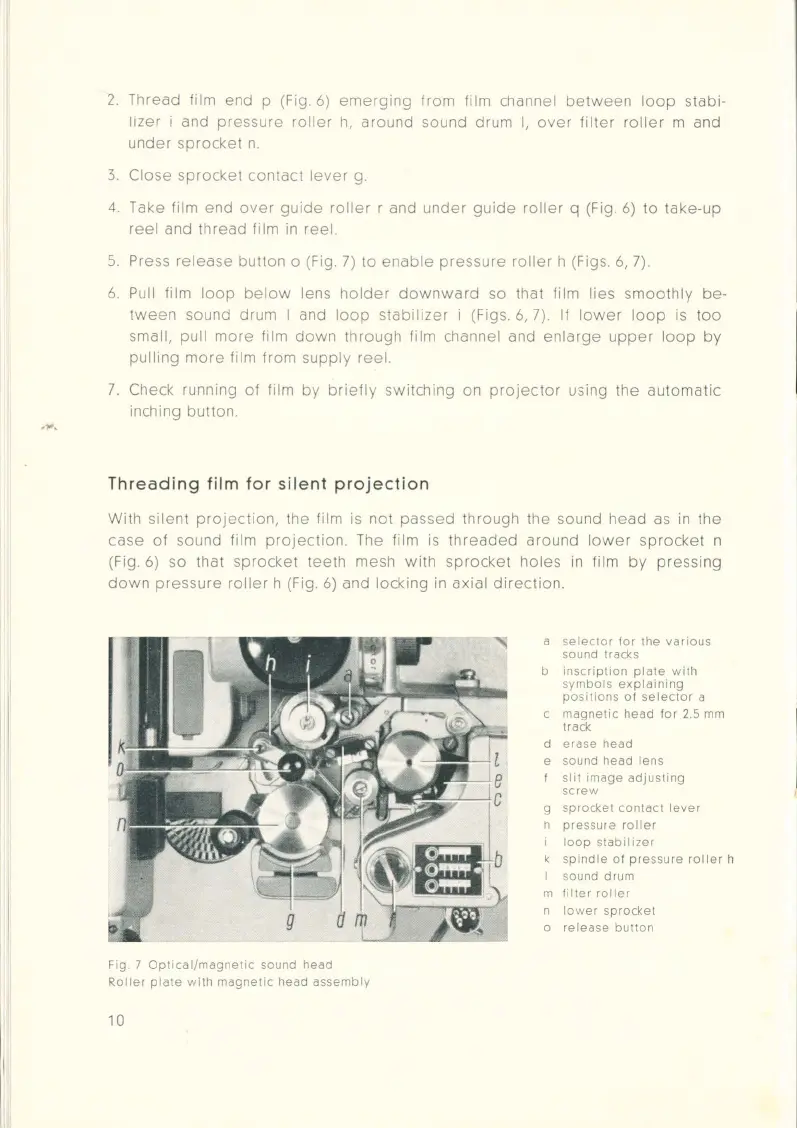

Fig. 7
Optical/magnetic
sound
head
Roller
plate
with
magnetic
head
assembly
10
a
selector
for
the
various
sound tracks
b
inscription
plate
with
symbols
explaining
positions
of
selector
a
c
magnetic
head
for
2.5
mm
track
d
erase
head
e sound
head
lens
f
slit
adjusting
screw
g
sprocket
contact
lever
h
pressure
roller
loop
stabilizer
spindle
of
p
ressure
roller
h
sound drum
m
filter
roller
n
lower
sprocket
o
release
button
