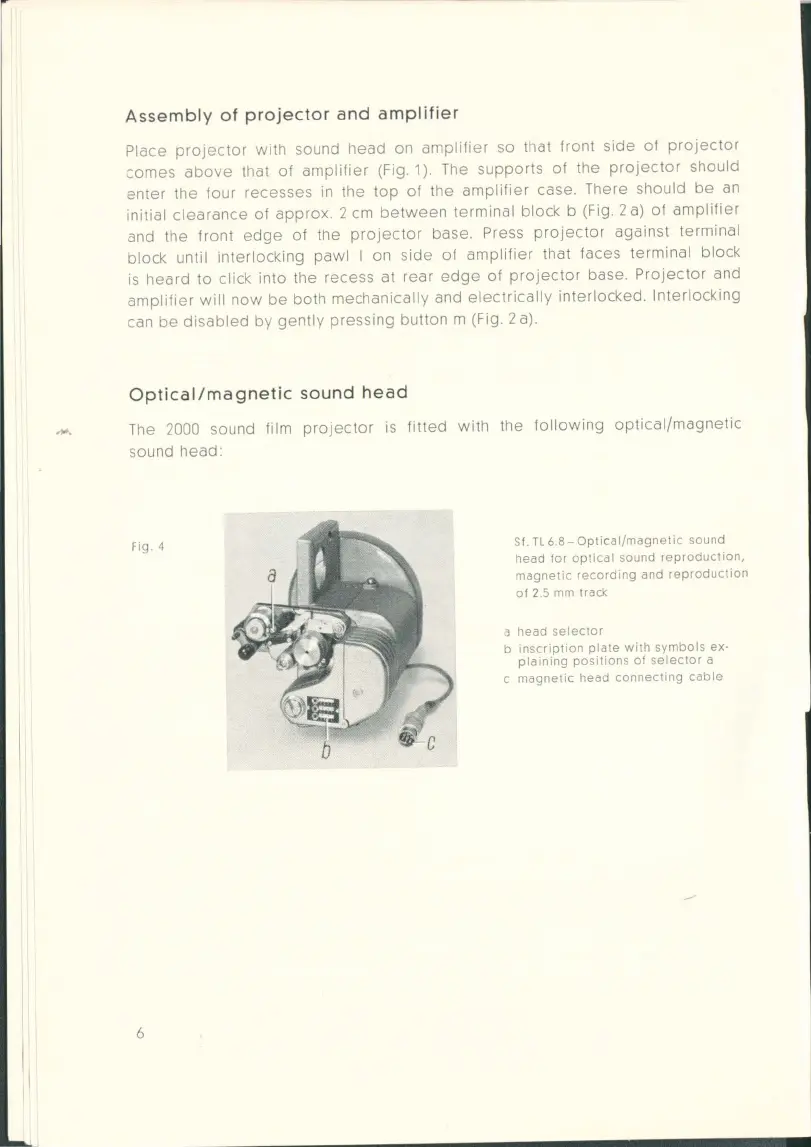

Assembly of projector and amplifier
Place projector with sound head on amplifier so that front side of projector
::omes above that of amplifier (Fig. 1 ). The supports of the projector should
enter the four recesses in the top of the amplifier case. There should be an
initial clearance of approx. 2 cm between terminal block b (Fig. 2 a) of amplifier
and the front edge of the projector base. Press projector against terminal
block until interlocking pawl I on side of amplifier that faces terminal block
is heard to click into the recess at rear edge of projector base. Projector and
amplifier will now be both mechanically and electrically interlocked. Interlocking
can be disabled by gently pressing button m (Fig. 2 a).
Optical/magnetic sound head
'"'· The 2000 sound film projector is fitted with the following optical/magnetic
sound head:
Fig. 4
6
Sf. TL 6.8- Optical/magnetic sound
head
for optical sound reproduction,
magnetic recording and reproduction
of 2.5 mm track
a head selector
b inscription plate with symbols ex-
plaining positions of selector a
c
magnetic head connecting cable
