Siemens 2000 Service Manual

....

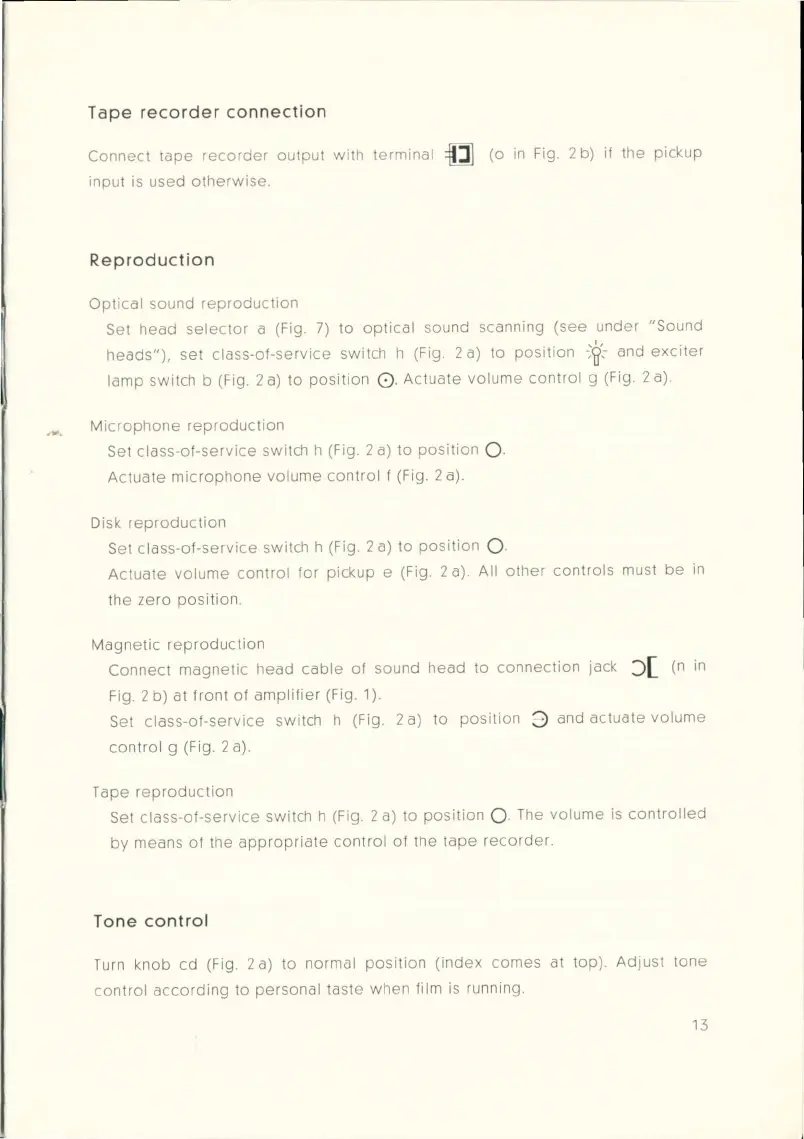

Tape recorder connection
Connect tape recorder output with terminal =lJl (o in Fig. 2 b) if the pickup
input is used
otherwise.
Reproduction
Optical sound reproduction
Set head selector a (Fig. 7) to optical sound scanning (see under "Sound
heads"), set class-of-service switch h (Fig. 2 a) to position -;~- and exciter
lamp switch b (Fig. 2 a) to position 0) . Actuate volume control g (Fig. 2 a).
Microphone reproduction
Set class-of-service switch h (Fig. 2 a) to position Q.
Actuate microphone volume control f (Fig. 2 a).
Disk
reproduction
Set class-of-service switch h (Fig. 2 a) to position Q.
Actuate volume control for pickup e (Fig. 2 a). All other controls must be in
the zero position.
Magnetic reproduction
Connect magnetic head cable of sound head to connection jack :::>[ (n in
Fig. 2 b) at front of
amplifier (Fig. 1 ).
Set class-of-service switch h (Fig. 2 a) to position 3 and actuate volume
control g (Fig. 2 a).
Tape
reproduction
Set class-of-service switch h (Fig. 2 a) to position Q. The volume is controlled
by means of the appropriate control of the tape recorder.
Tone control
Turn knob cd (Fig. 2 a) to normal position (index comes at top). Adjust tone
control according to personal taste when film is running.
13
