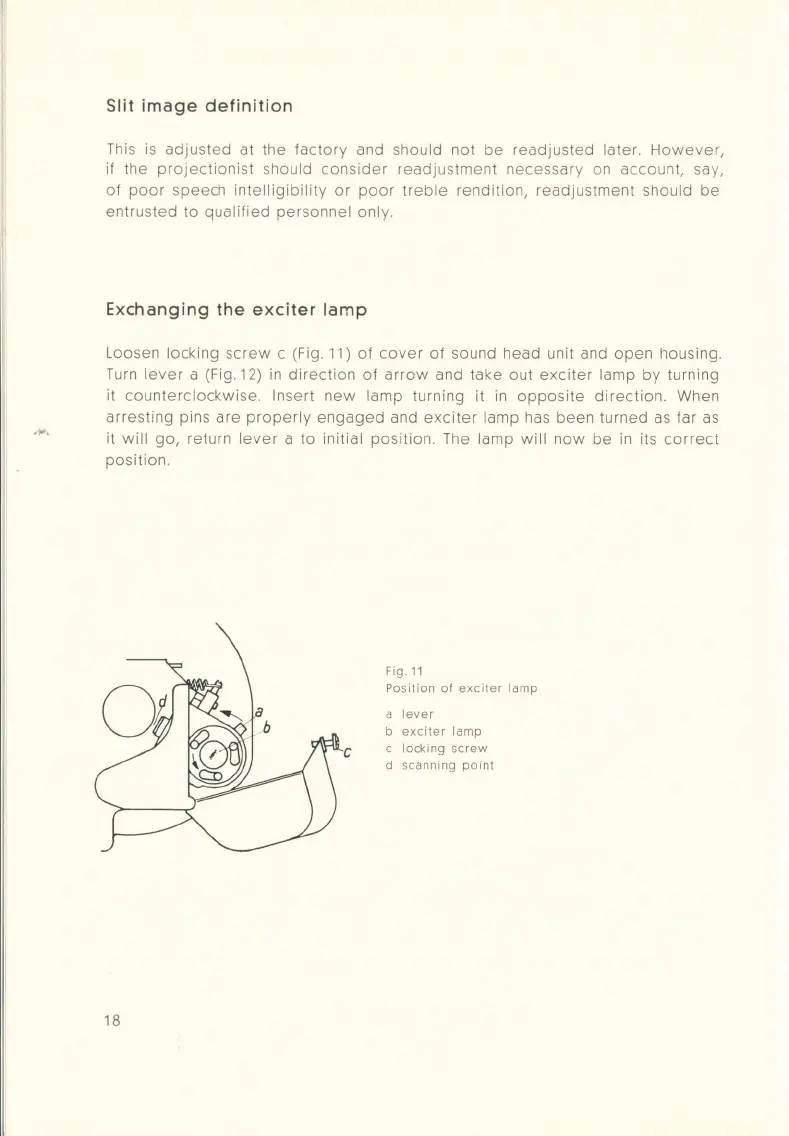

Slit image definition
This is adjusted at the factory and should not be readjusted later. However,
if the projectionist should consider readjustment necessar y on account, say,
of poor speech intelligibility or poor treble rendition, readjustment should be
entrusted to qualified personnel only .
Exchanging the excite r lamp
Loosen locking screw c (Fig. 11) of cover of sound head un it and open housing.
Turn lever a (Fig. 12) in direction of arrow and take out exciter lamp by turning
it
counterclockwise. Insert new lamp turning it in opposite direction. When
arresting pins are properly engaged and exciter lamp has been turned as far as
it
w ill go, return lever a to initial posit ion. The lamp will now be in i ts correc t
position .
18
Fig. 11
Position of exciter lamp
a leve r
b exciter lamp
c c locking screw
d scanning point
