5 Operation
I Breaking current in kA
k Weighting factor
n Max. permissible number of interruptions
X During the type tests 10000 mechanical operation cycles
were carried out.

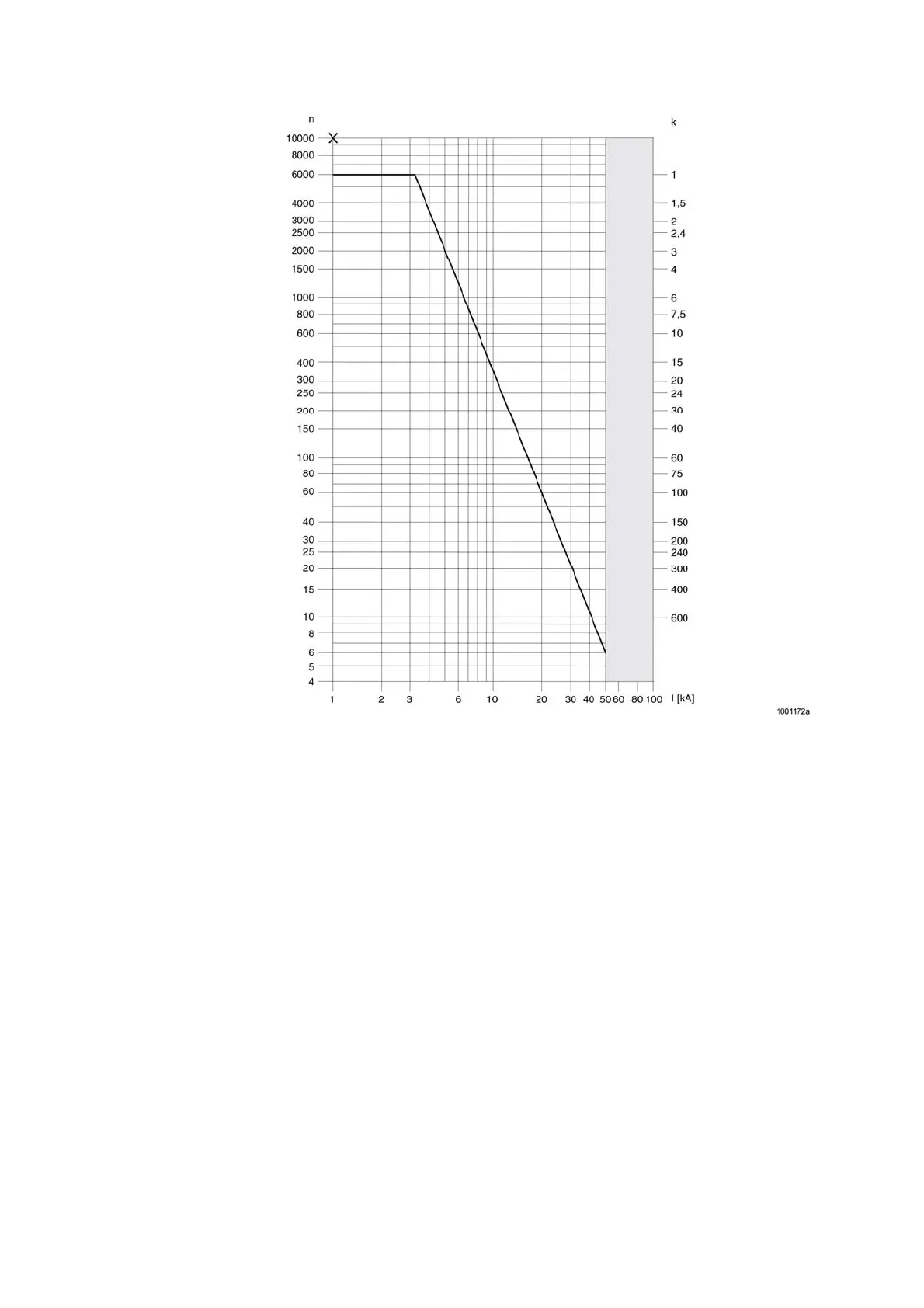

Fig. 57 Max. permissible number of interruptions as a
function of the breaking current.
The chart (Fig. 57) relates to one pole of a triple-pole circuit-breaker. Three times the number of the permissible
single-pole opening operations may thus result in a triple-pole circuit-breaker (e.g. 18 single-pole opening
operations with 50 kA).
Weighting factor k simplifies calculation of the max. permissible number of interruptions at different breaking
currents.
