09.02 Parameter List
Siemens AG 6SE7087-6AK85-1AA0
5-41
Rectifier/Regenerating Unit Operating Instructions
PNU
*
: Conf.
Par.
OP1S parameter name
Description
Value range
[phys. unit]
Selection text
Display
Indices
Factory-
setting
See
Modify
(access /
status)

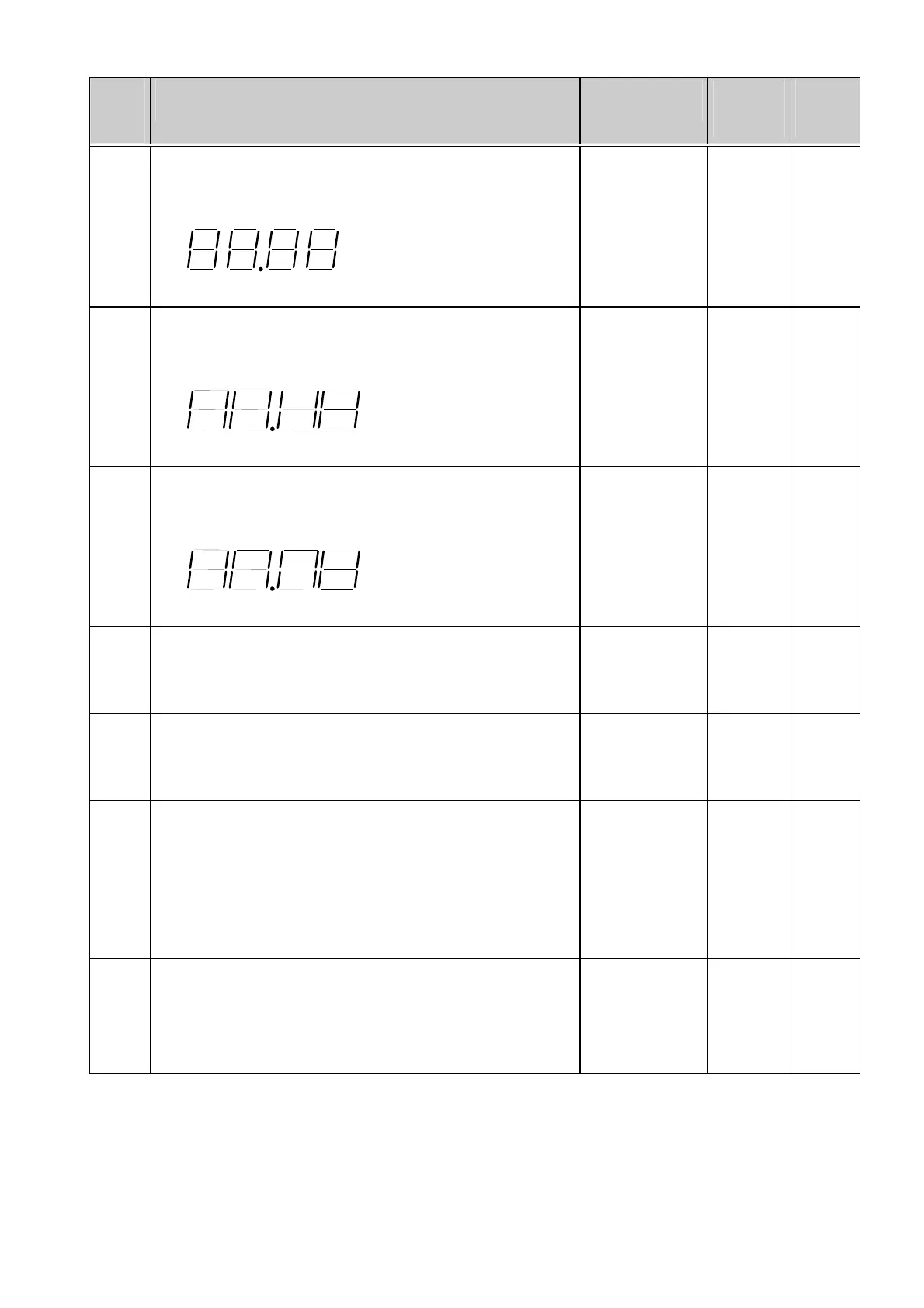

r958 Warning Param 6
Warning Parameter 6 (CB-warnings)
If a warning (numbers 80 to 96) is active, the related segment in the display
is ON
87
88
95
96
83
84
91
92
81
82
89
90
85
86
93
94
PNU=3BEHex; Type=V2; Scaling: 1Hex
=
∧
1
- 3/ BR
r959 Warning Param 7
Warning Parameter 6 (TB-warnings 1)
If a warning (numbers 97 to 112) is active, the related segment in the
display is ON
104
111
112
103
102
109
110
101
100
107
108
99
98
105
106
97
PNU=3BFHex; Type=V2; Scaling: 1Hex
=
∧
1
- 3/ BR
r960 Warning Param 8
Warning Parameter 6 (TB-warnings 2)
If a warning (numbers 113 to 128) is active, the related segment in the
display is ON
120
127
128
119
118
125
126
117
116
123
124
115
114
121
122
113
PNU=3C0Hex; Type=V2; Scaling: 1Hex
=
∧
1
- 3/ BR
r967 Control Word 1
Display parameter of control word 1 (bit 0-15)
Identical with r550 (control word 1)
PNU=3C7Hex; Type=V2; Scaling: 1Hex
=
∧
1
- 2/ BR
r968 Status Word 1
Display parameter of status word 1 (bit 0-15)
Identical with r552 (status word 1)
PNU=3C8Hex; Type=V2; Scaling: 1Hex
=
∧
1
- 2/ BR
P970
*
Factory Settings
Parameter reset to factory settings
0: Parameter reset: all parameters are reset to their original values
(factory settings). After this the parameter is reset to '1'.
1: no parameter reset
Note: This function can also be selected via P052=1.
PNU=3CAHex; Type=O2; Scaling: 1Hex
=
∧
1
0 to 1
Param.Reset
Return
-
1
3/ B
3/ B
P971
*
EEPROM Storing
Passing of the parameter values of the RAM to the EEPROM on a change
from 0 auf 1.
It takes about 15s to process all of the values. During this time, the PMU
stays in the Values mode.
PNU=3CBHex; Type=O2; Scaling: 1Hex
=
∧
1
0 to 1 -
0
3/ BR
3/ BR
