Technical references
A.3 SITRANS LC300 Pressure versus temperature curves
SITRANS LC300
Operating Instructions, 05/2021, A5E47904073-AA
53

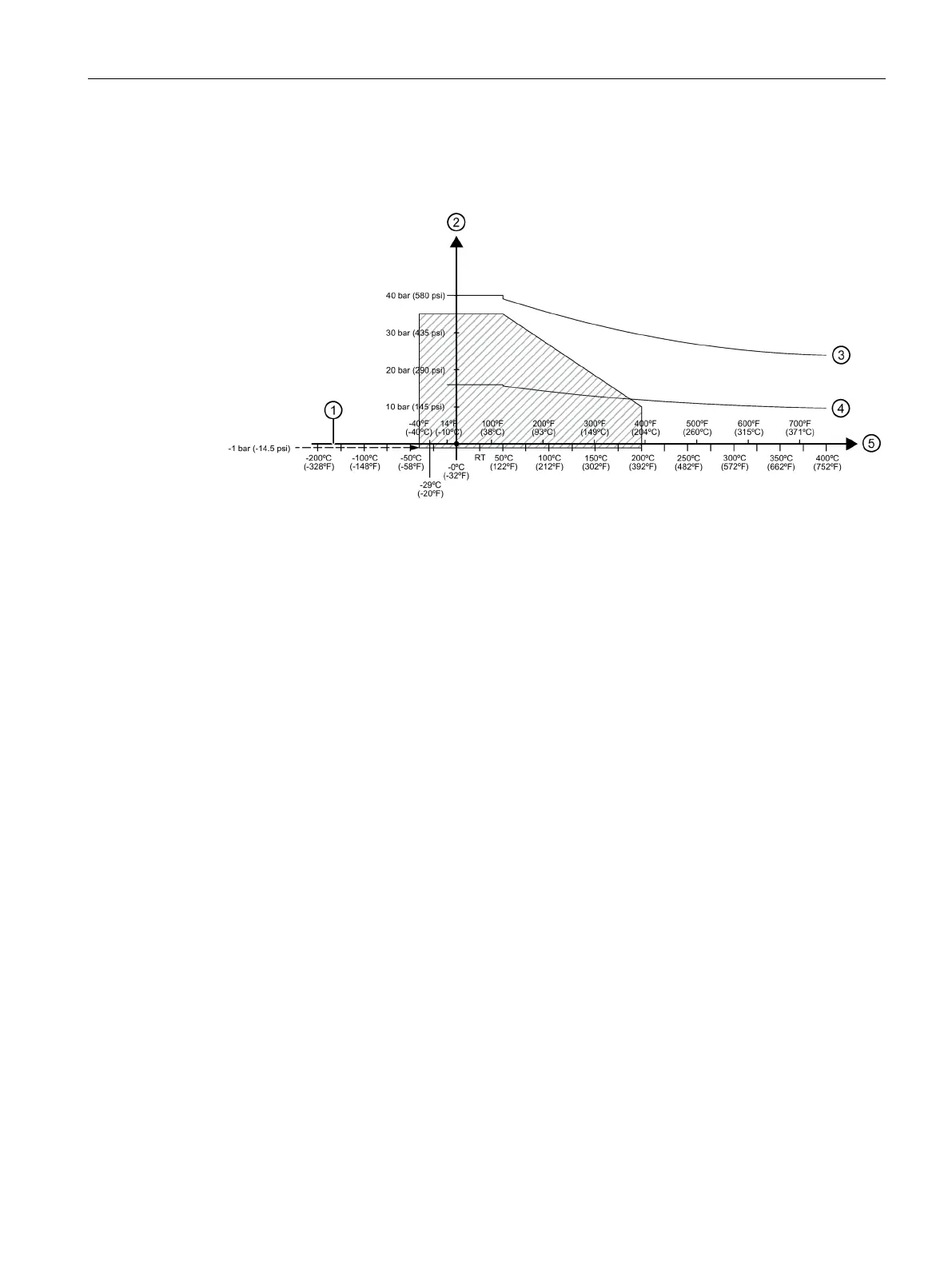

A.3.3 LC300 Standard, extended rod, and cable versions, EN flanged
P = Permitted Operating Pressure
1)
1)
T = Permitted Operating Temperature
1)
The curve denotes the minimum allowable flange class for the shaded area below.
