English 7XT7100-0*A00/DD
14 C53000-B119U-C128-1

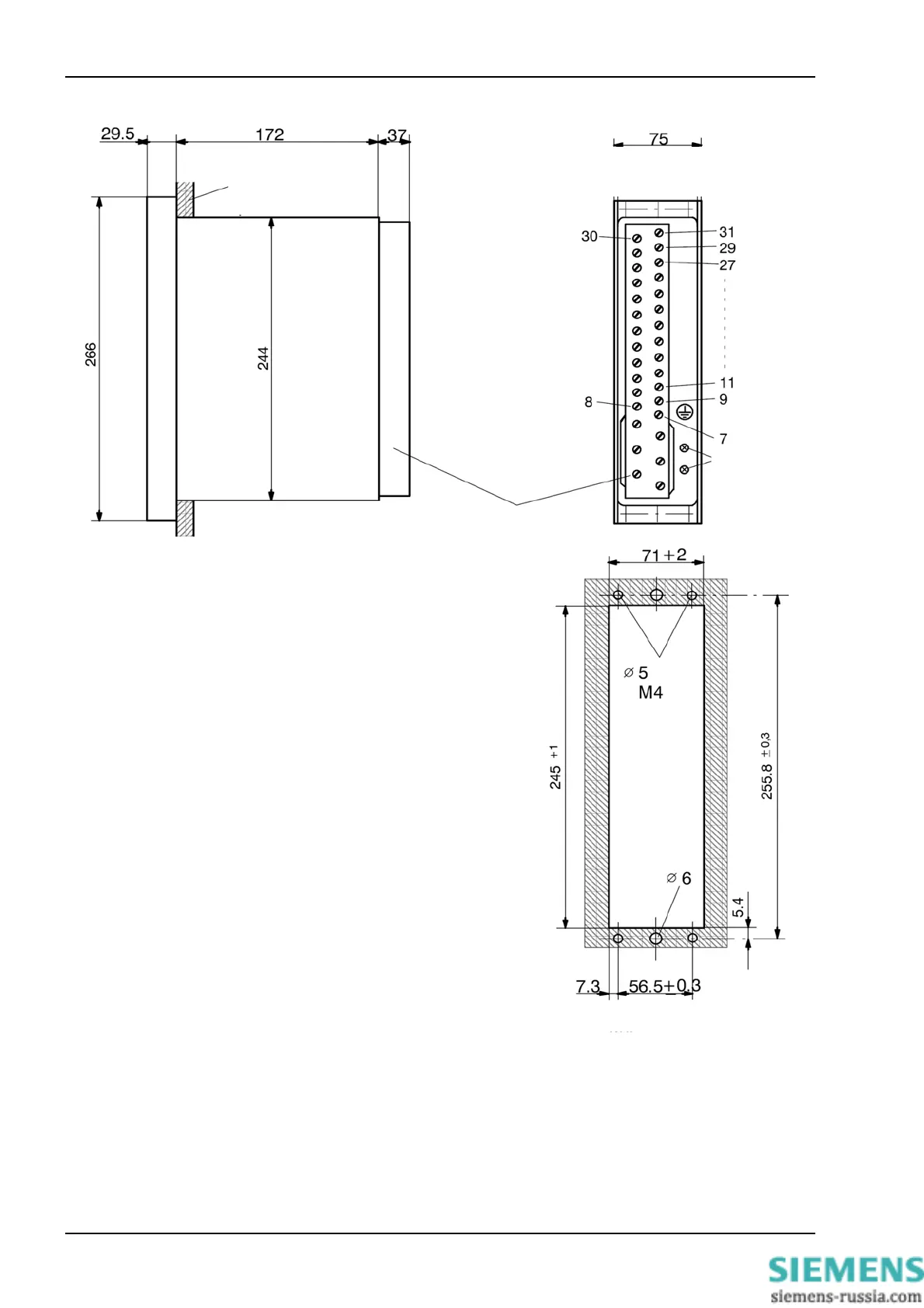

Figure 7 7XT7100-0EA00 Housing for panel flush mounting or cubicle installation
Connections
for earthing
Dimensions in mm
Mounting plate
Current connections (terminals 1 to 6):
not used in 7XT71
Voltage connections (terminals 7 to 31):
isolated ring cable lug:
for bolts 4 mm diameter
max. major diameter 9 mm
type: e.g. PIDG of Messrs.
Tyco Electronics AMP
for copper wires with cross-section
1.0 mm
2
to 2.6 mm
2
AWG 17 to 13
Snap-in terminal:
for copper wires with cross-section
0.5 mm
2
to 2.5 mm
2
AWG 20 to 13
max. torque value1.8 Nm or 16 in-lbs
Connections terminals
Panel cut-out
