English 7XT7100-0*A00/DD
20 C53000-B119U-C128-1
Design
Housing 7XP20
Dimensions see Section "Dimensions and
Connections"
Weight
- in housing for surface mounting approx. 3.5 kg
- in housing for flush mounting approx. 3.0 kg
Degree of protection acc. to EN 60529
- Housing IP 51
- Terminals IP 21

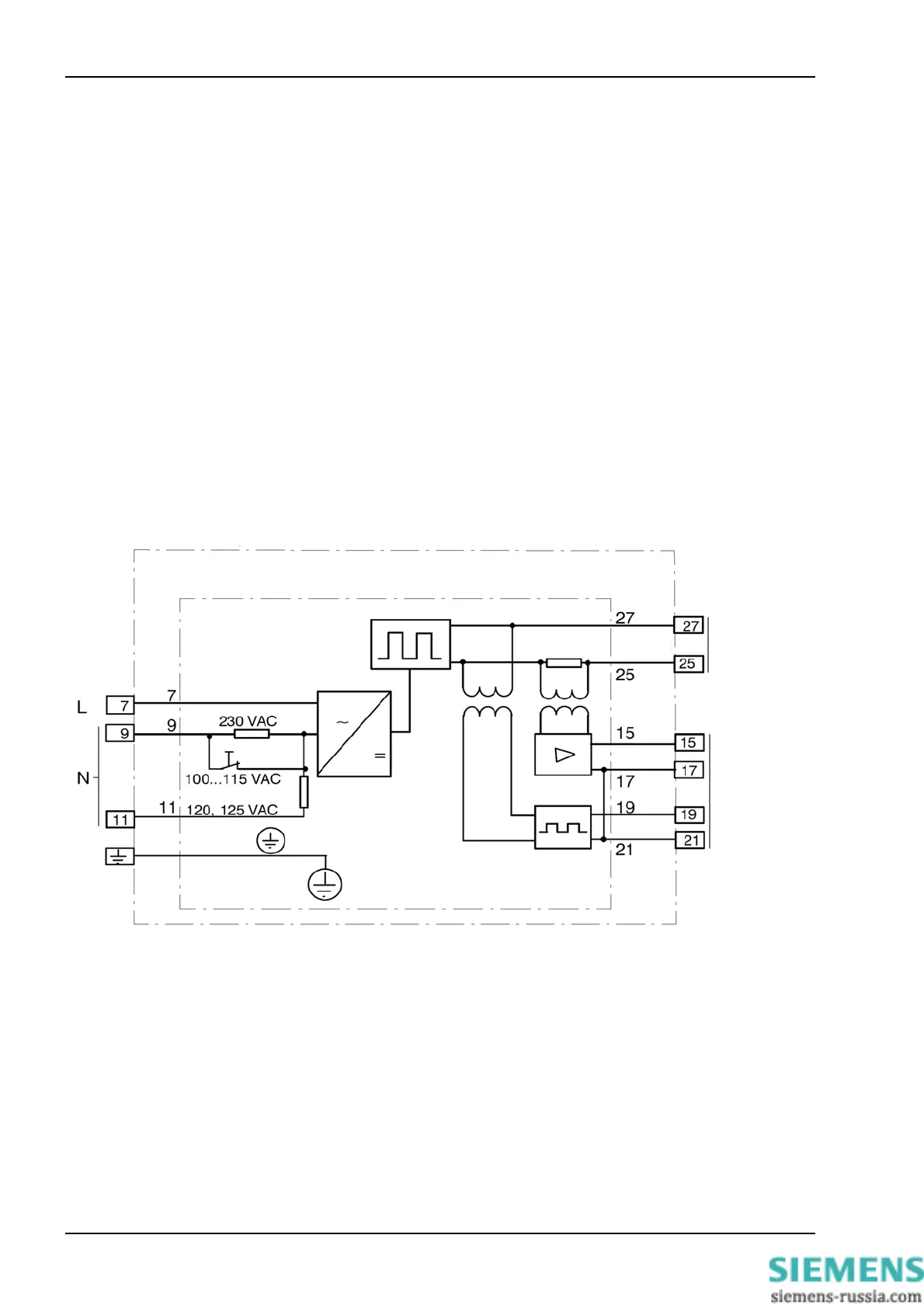

General Diagram
Figure 8 General diagram of controller unit 7XT1 00-0KA00
Auxiliary voltage
Flush mounting housing
Surface mounting housing
U
Con-
U
Mea
U
Out-
Protection
device 7UM
Factory set: 100 to 125 Vac
Coupling unit
7XR60
