Operation

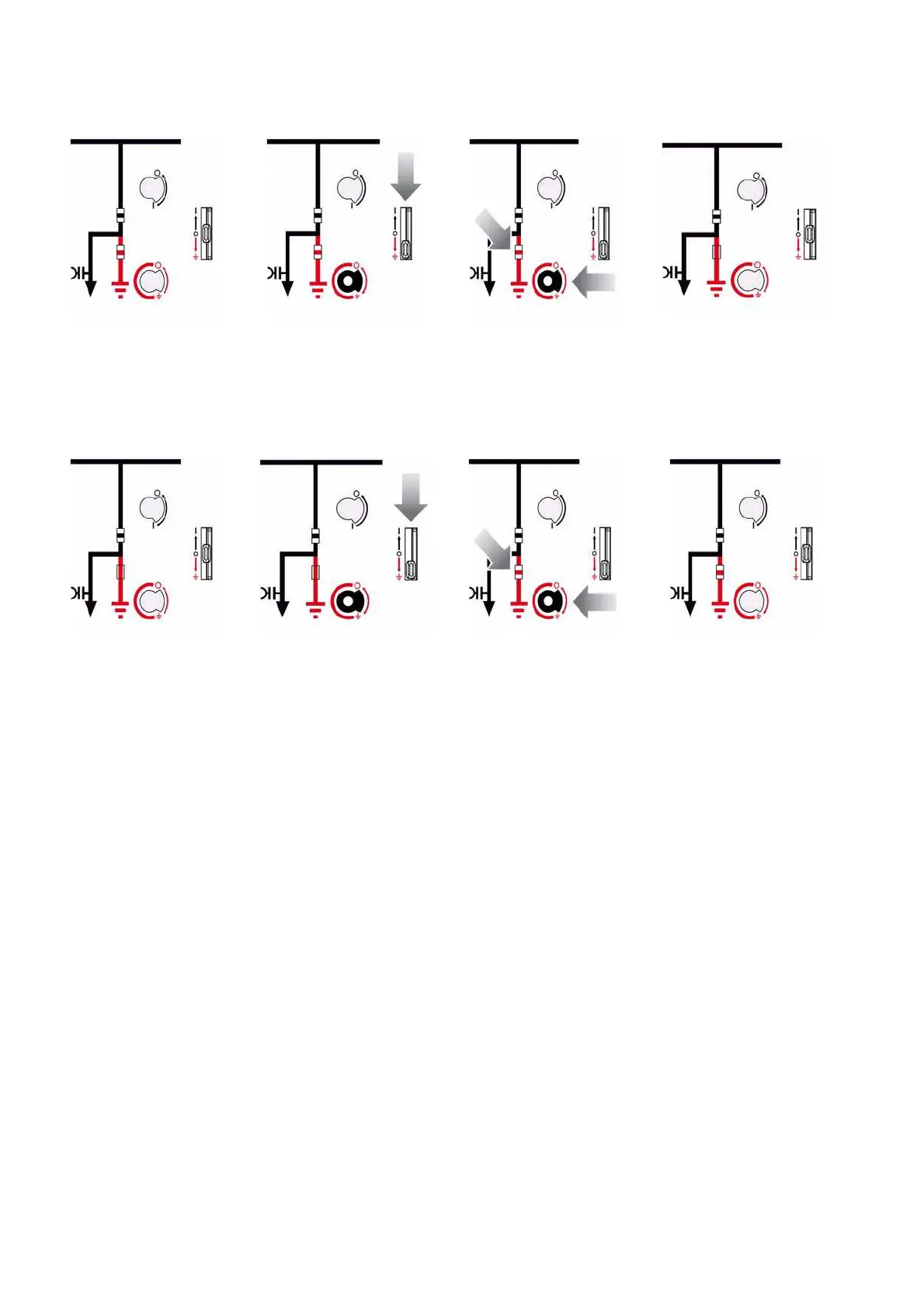

Feeder earthing:
Initial situation (three-position switch
OPEN, earthing switch OPEN)
Push control gate downwards Switch earthing switch to CLOSED
position (insert operating lever and turn
approx. 55° clockwise)
Remove operating lever (control gate
returns to its initial position)
Feeder de-earthing:
Initial situation (three-position switch
OPEN, earthing switch CLOSED)
Push control gate downwards Switch earthing switch to OPEN
position (insert operating lever and turn
approx. 55° counter-clockwise)
Remove operating lever (control gate
returns to its initial position)
