Operation
17.1 Closing the circuit-breaker type 2 "locally"
How to close the circuit-breaker depends on the equipment of the switchgear panel.
There are two versions of circuit-breaker operating mechanisms:
• Stored-energy spring mechanism
• Stored-energy spring mechanism with motor (option)
Closing with
stored-energy mechanism

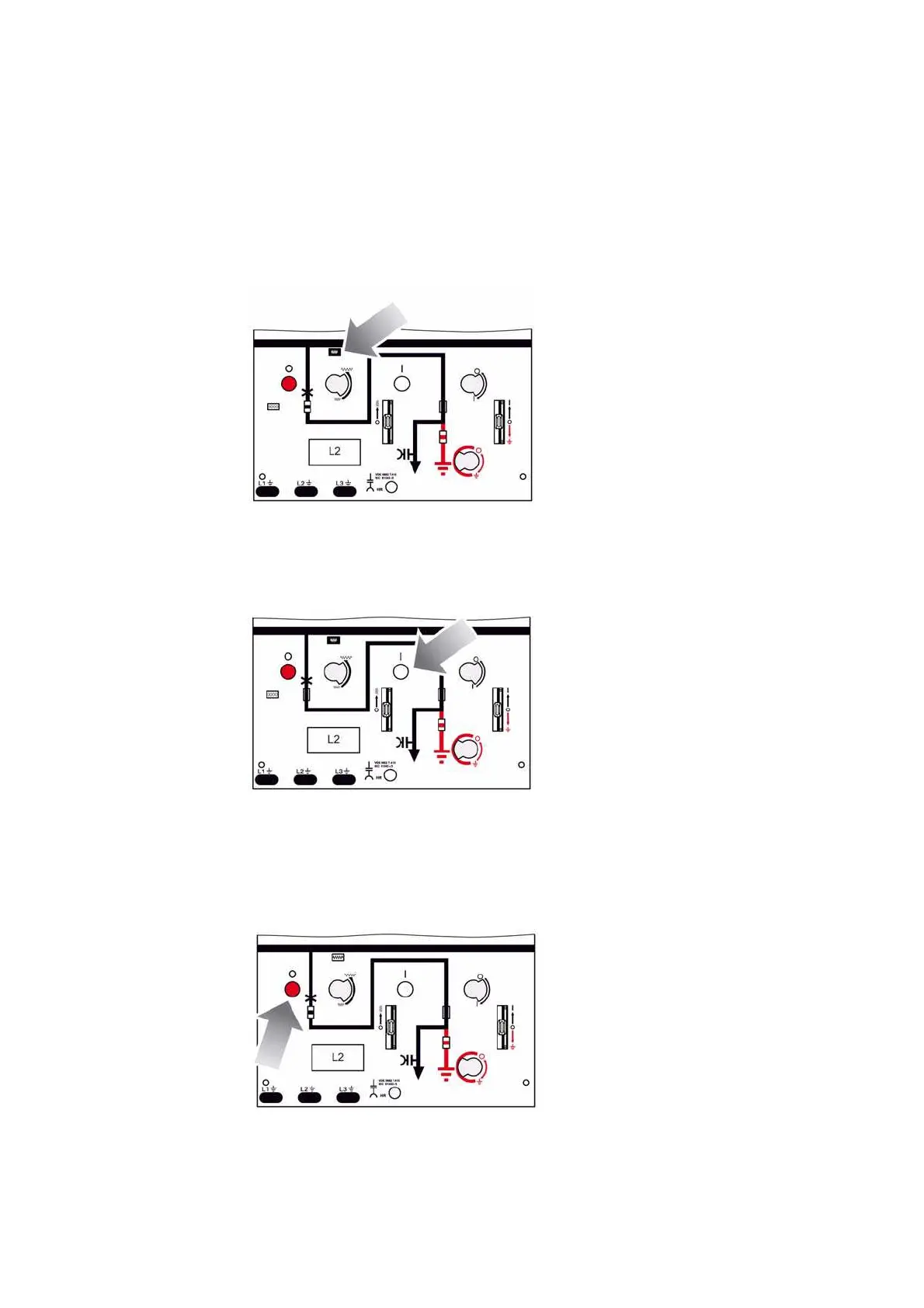

Ö Make sure that the closing and opening springs of the stored-energy mechanism
are charged.
Ö Actuate the "ON" pushbutton.
Ö The position indicator of the circuit-breaker in the mimic diagram is in
CLOSED position.
r The circuit-breaker is closed.
17.2 Opening the circuit-breaker type 2 "locally"
Ö Actuate the "OFF" pushbutton.
r The position indicator of the circuit-breaker in the mimic diagram is in OPEN position.
