17.7 Three-position disconnector in the circuit-breaker panel type 2:
Deactivating the EARTHED position

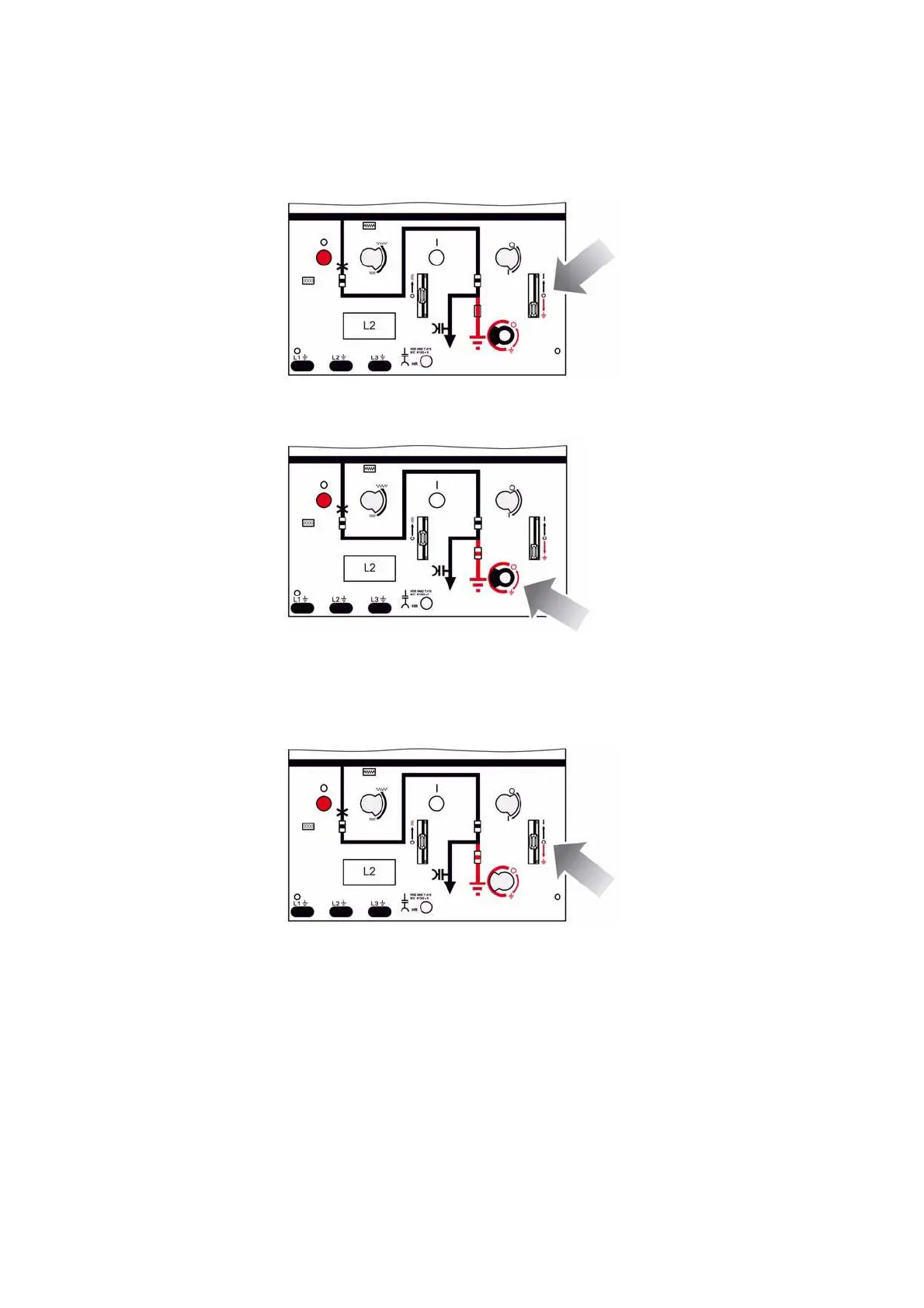

Ö Push the control gate of the disconnector downwards.
The actuating opening for the earthing switch is free.
Ö Insert the operating lever and turn 55 ° counter-clockwise.
Ö Remove the operating lever.
Ö The control gate moves to the center position automatically.
The actuating opening is closed.
Ö The circuit-breaker panel is de-earthed.
