Operation
122 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9

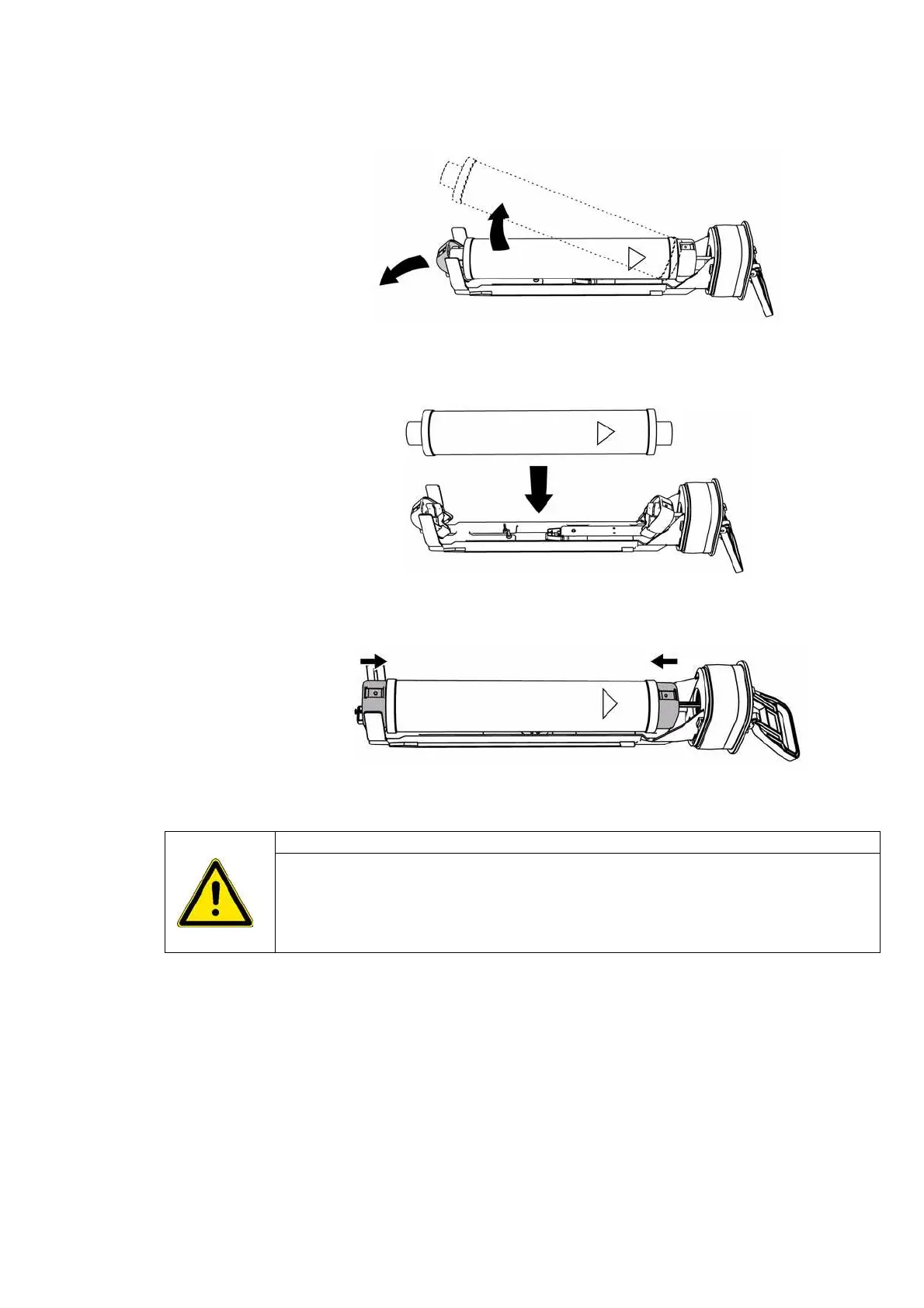

Ö Push the cover of the HV HRC fuse-link (on the opposite side of the housing cover)
aside, and pull the HV HRC fuse out of the fuse slide.
Ö Fit new HV HRC fuse-link into the contact springs observing the striker position.
The arrow on the HV HRC fuse points to the housing cover.
Ö Verify correct seating of the covers and the fuse.
Inserting
the HV HRC fuse slides
ATTENTION!
Incorrectly selected or mounted fuse-links and extension tubes can damage
the fuse box or the switchgear.
Ö 7.2 kV fuse-links with dimension 192 mm and 24 kV fuse-links with
dimension 292 mm are not permissible.
