Description
30 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
Cable connections with bolted contact for transformer feeders

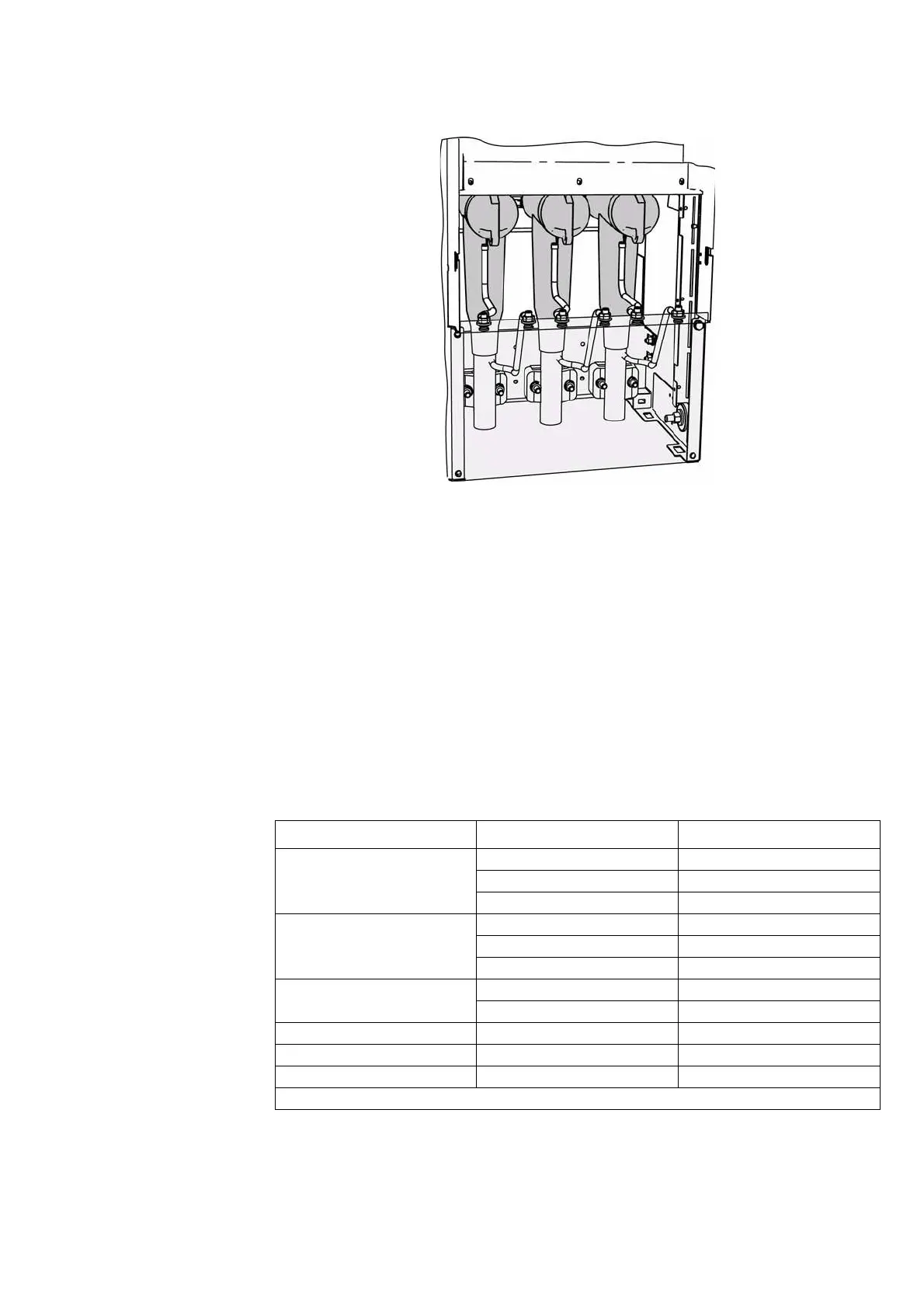

Fig. 22: Cable connection for transformer feeder: Interface type C (630 A):
E.g. Euromold K400 TB (black), nkt AB 24-630 and ASA 24-5 (gray)
Features • As plug-in contacts according to EN 50 181/DIN EN 50 181 interface type A for cable
elbow plugs or straight cable plugs
• For bushings according to EN 50 181/DIN EN 50 181 interface type C with bolted
contact M16
Cable sealing ends The transformer cables are connected with cable plugs.
Option • Mounted cable clamps on cable bracket
• Bolted contact (M16)
Selection table for plug systems
Plug systems
Manufacturer Plug type for ring-main feeders Plug type for transformer feeders
Euromold (K) 400 TB (S) (K) 158 LR
(K) 400 LB (K) 151 SR
- - - AGW (L) 10 (20); AGG (L) 10 (20)
nkt cables CB 24-630 CE 24-250
AB 24-630 EASW 10/250
- EASW 20/250
Südkabel (ABB) SEHDT 13 (23) SEHDG 11.1 (21.1)
SEHDT 13.1 (23.1) SEW 12 (24)
Prysmian Kabel (Pirelli) FMCTs(m)-400 FMCE(m)-250
Tyco Electronics Raychem RICS 51 ... RSES; RSSS
Cooper DT 400 P DE 250; DS 250
Further plug types on request
