500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 73
Installation

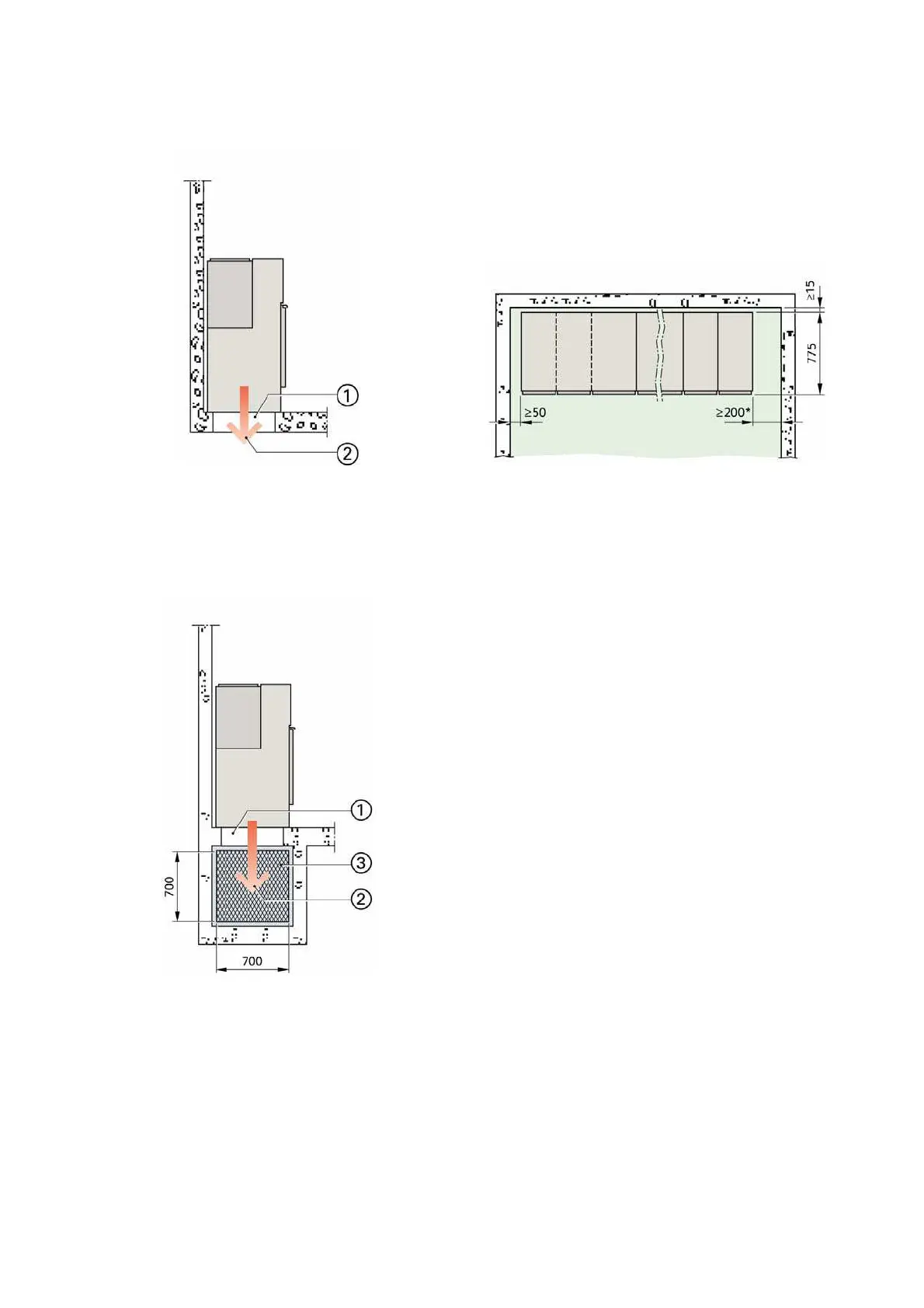

Switchgear installation with pressure relief downwards
Fig. 41: Side view
Fig. 42: Top view
Switchgear installation with pressure relief downwards / to the rear (option)
Fig. 43: Side view
a
Floor opening
d
Expanded metal (supplied by site)
s
Direction of pressure relief
* for lined up switchgear ** Depending on national requirements. For extension or panel
replacement, a control aisle of at least 1000 mm is recommended
