500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 75
Installation

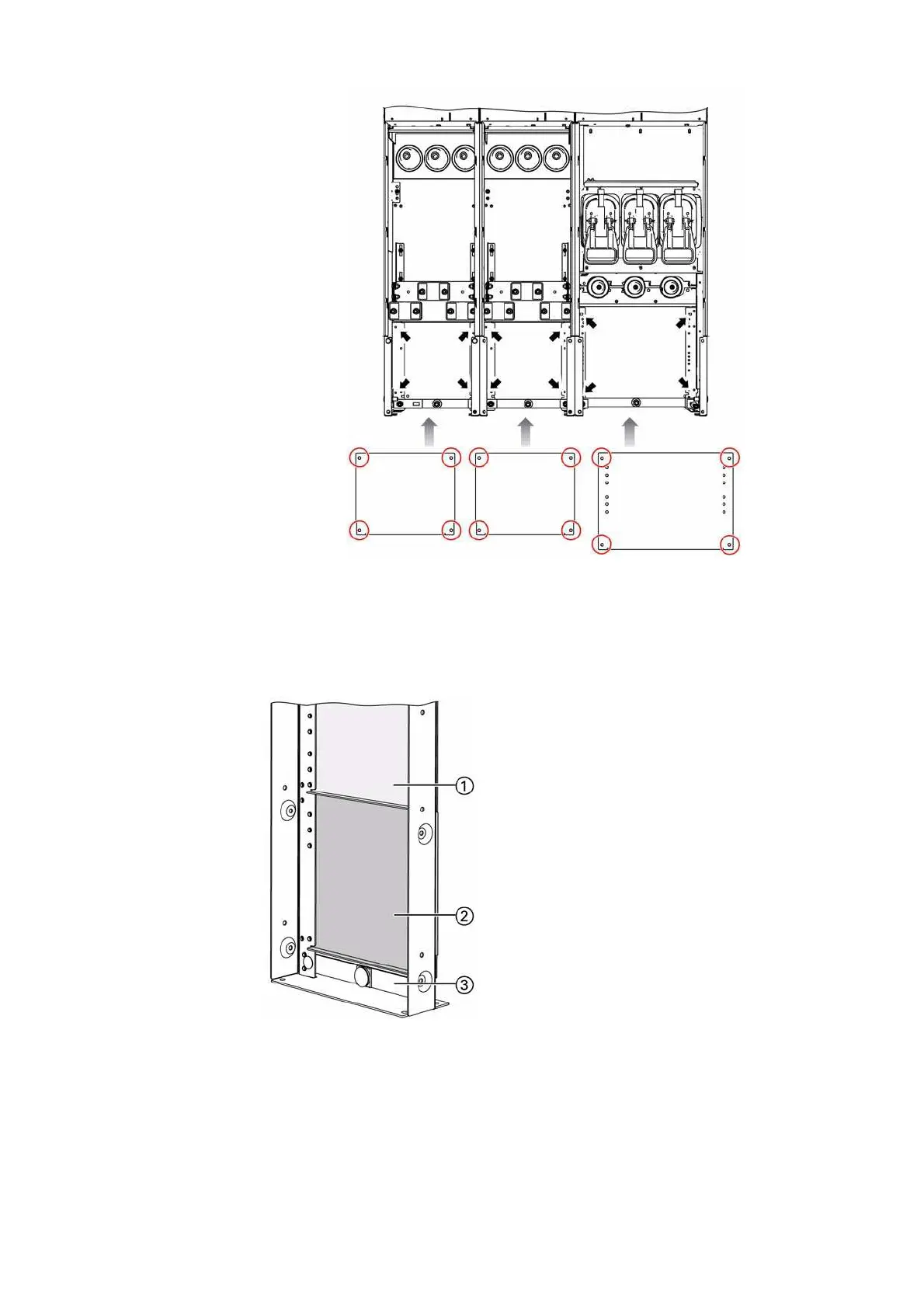

Fig. 45: Mounting the lower partition (front view)
Ö The folding edges of the partition point to the rear.
Ö Then mount the cable bracket in theT panel.
Ö Take the cable bracket out of the supplementary equipment and fasten it at the
necessary height. To do this, use M6 Torx bolts.
Tightening torque: Maximum 12 Nm.
Fig. 46: Mounting postiion of the lower
partition (rear view)
a
Upper partition
s
Lower partition
d
Earthing busbar
