Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Building Technologies Engineering 2015-05-19
The following diagram can be used to determine the cable lengths and wire cross-
sectional areas.
Cable length L
Power P

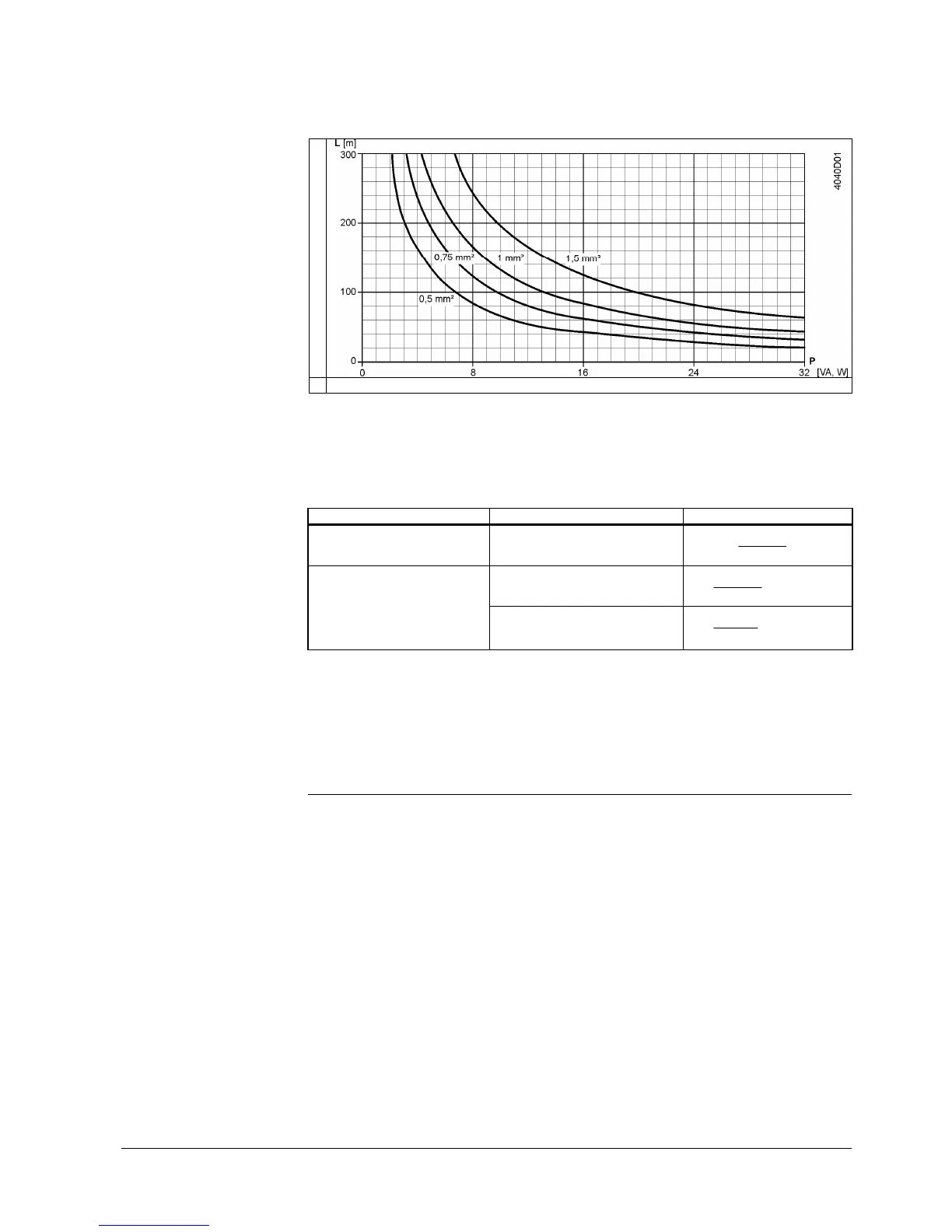

Permissible cable length L as a function of power P and cross-sectional area of wire as a parameter
P is the decisive power consumption of all actuators connected in parallel. When
operating on AC 24 V, power consumption is in VA; when operating on DC 24 V,
in W.
Operating voltage Permissible voltage drop / wire Formula for wire length
AC 230 V 2 % of AC 230 V
L = 46 ·
P
A1313 ·
[m]
AC 24 V
4 % of AC 24 V
L =
P
A1313 ·
[m]
1 % of DC 10 V
L =
(DC)I
A5.47 ·
[m]
A Cross-sectional area of wire in mm
2
L Permissible wire length in m
P Power consumption in VA (AC) or W (DC) (see actuator’s rating plate)
I(DC) DC current part (in A) on G0 wire
2.10 Warranty
The engineering data specified in chapter 2.5 Equipment combinations (page 9)
are only guaranteed in connection with the Siemens valves listed.
When using the actuators in connection with valves of other manufacture, correct
functioning must be ensured by the user, and Siemens will assume no
responsibility.
