Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Building Technologies Handling 2015-05-19

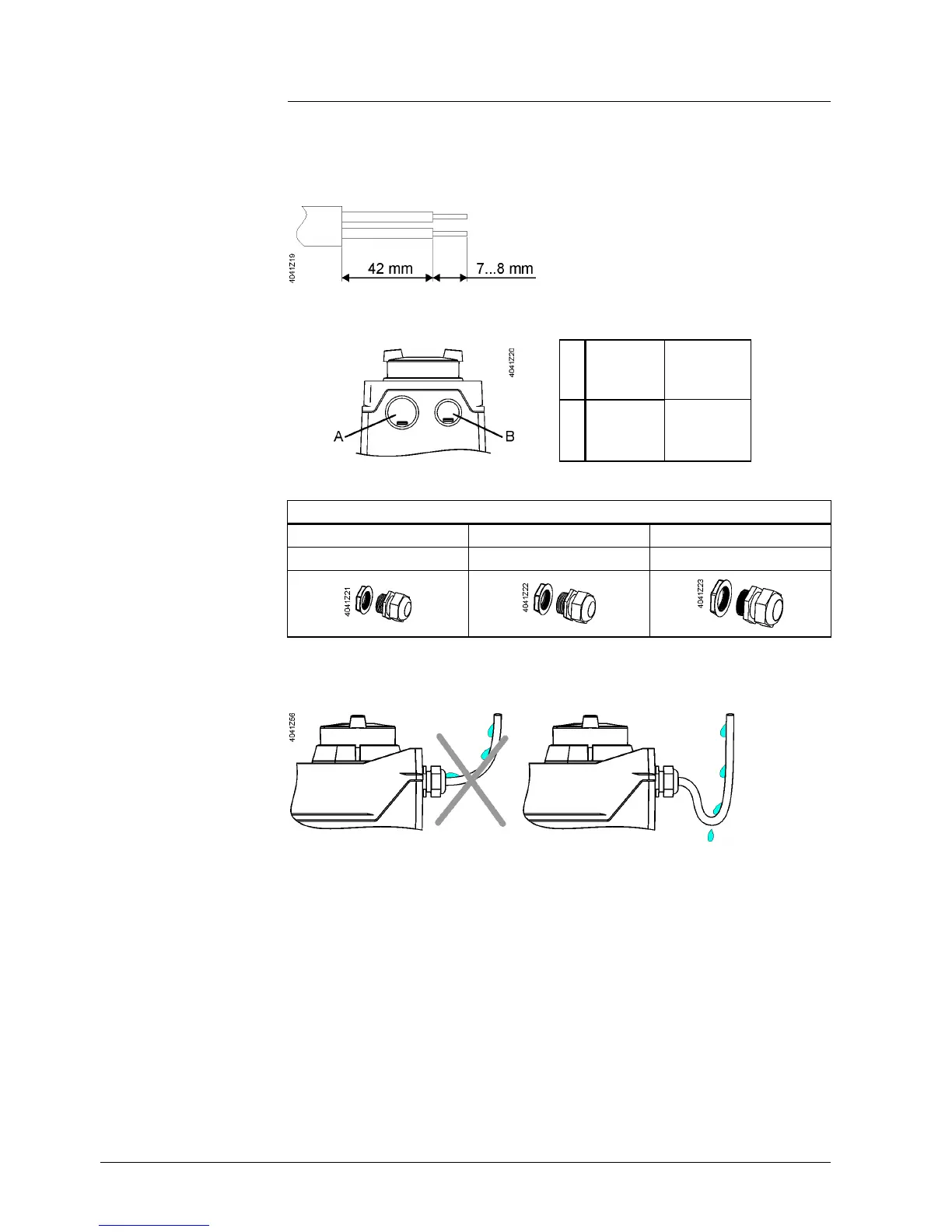

3.1.4 Wiring (installation)
Conduct the electrical connections in accordance with local regulations on
electrical installations as well as chapter 6.2 "Connection terminals" on page 39.
The cable endings must be prepared before as follows:
A
EU: M20
US: ½
Connection
actuator
B
EU: M16
US: ½
Connection
accessories
Cable glands (not contained in scope of delivery)
Metric Metric Inch thread
M16 M20 ½“
· Without cable gland IP protection is not guaranteed!
· Guide the cable in a loop to the cable gland, so water can drop off.
Prior to installation, the following preconditions must be satisfied:
· Actuator is mechanically connected to a Siemens valve.
· Housing cover is removed.
Preparation of wire
endings
Cable entries
Cable glands
Notes
Preconditions
