3 Handling
3.1 Mounting and installation

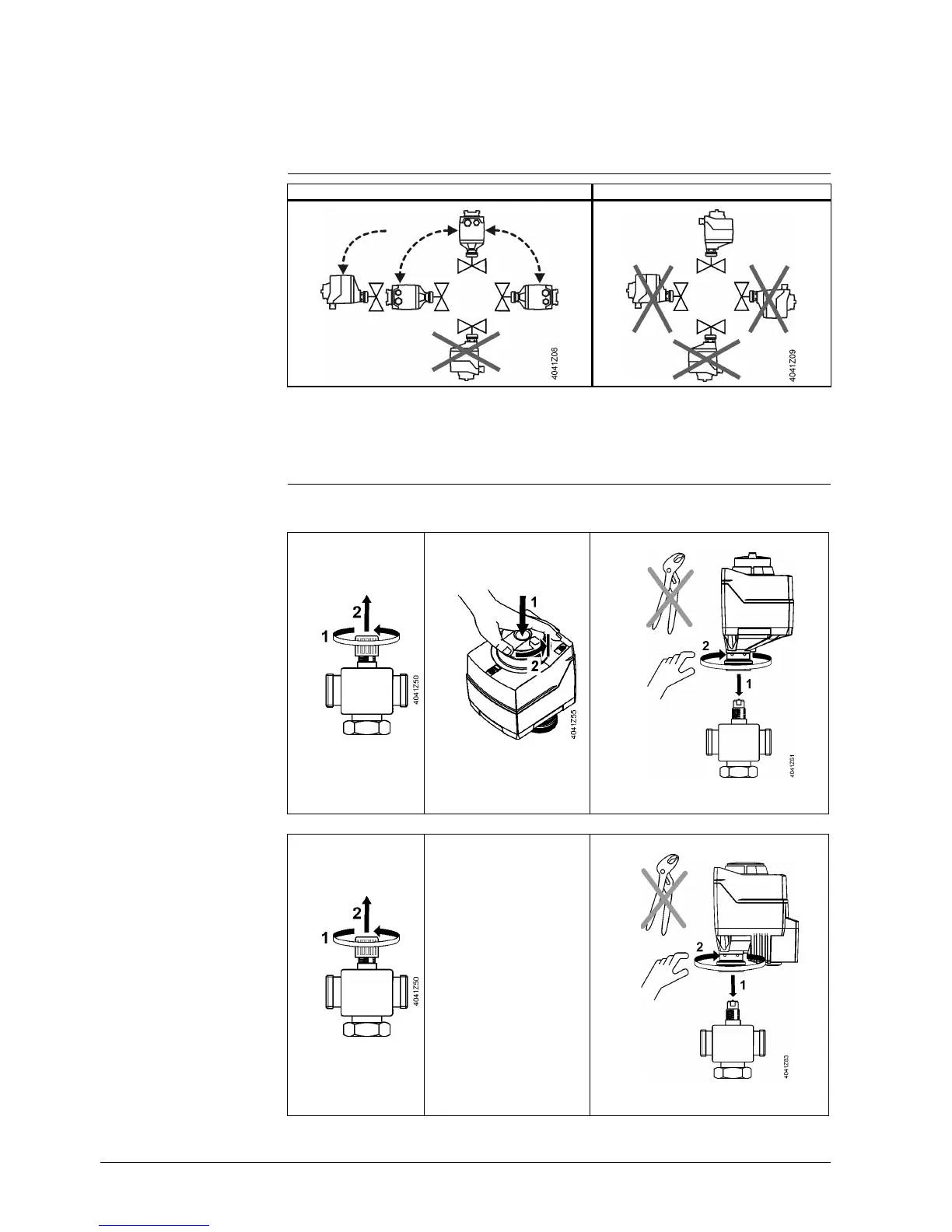

3.1.1 Mounting positions
Indoor use Outdoor use
1)
1)
Only in connection with weather shield ASK39.2, housing protection IP54 remains unchanged
3.1.2 Fitting stroke actuators SAS.. to threaded valves
First, observe chapter 3.1.1 Mounting positions.
1
2
3
tighten firmly by hand
1
2
3
-
tighten firmly by hand
SAS..0..
SAT..0..
SAS..5..
