Installation of the I.I. laser light localizer 0
• Take out laser light localizer (see(1/Fig.6/p.11).
• Connect the two plugs ((1/Fig.7/p.11) and wedge them with foam into the side of the
I.I. housing ((1/Fig.8/p.12).

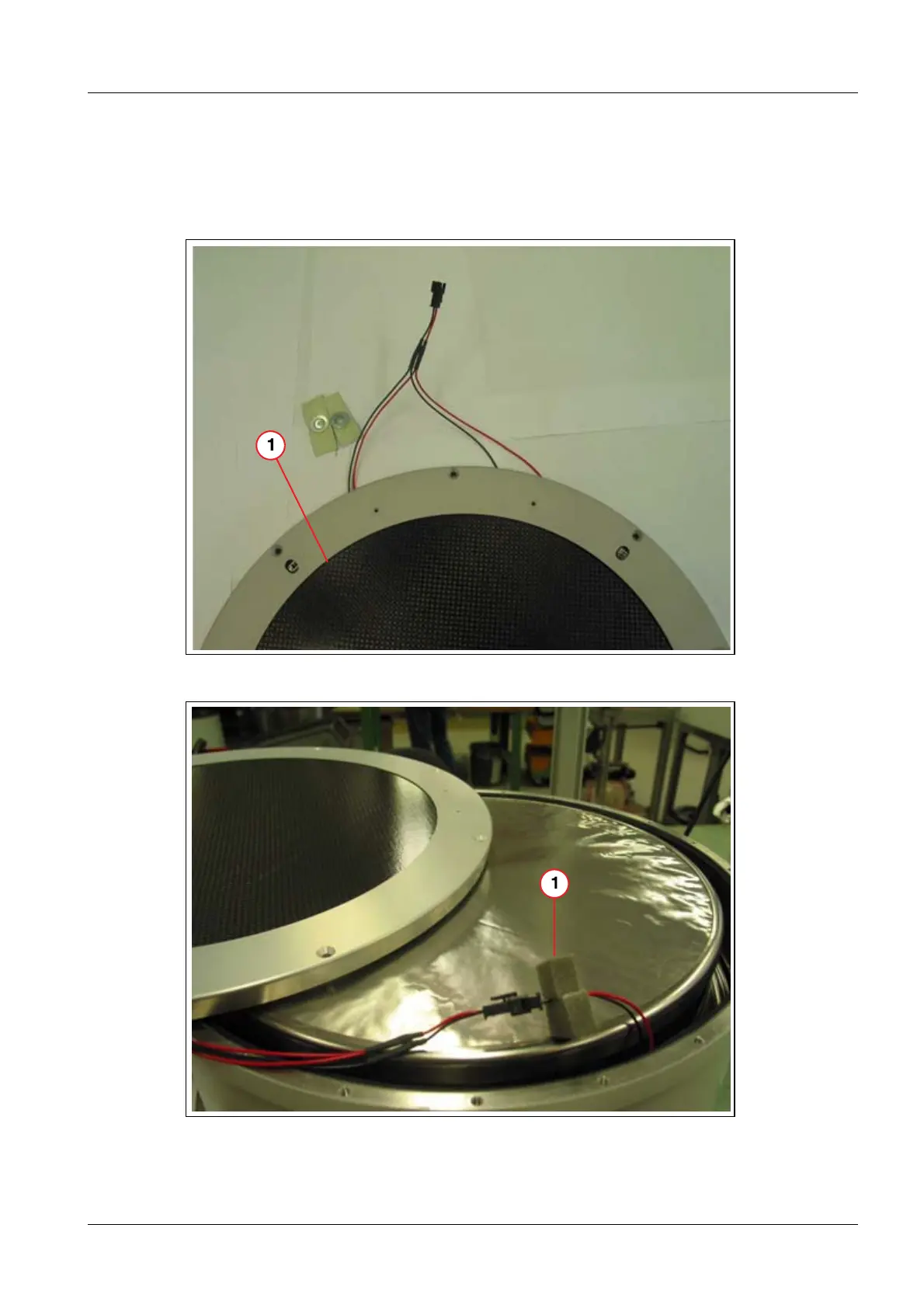

Fig. 6: I.I._1
Fig. 7: I.I._2
