Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Settings 13
Page 13 of 20
Medical Solutions
Checking the settings 0
• Switch on the I.I. laser light localizer and adjust the two laser beams so that they strike
the center of the radiation-exit window (focal point) (1/Fig. 10 / p. 13) (center of the iris
diaphragm), using the two adjustment screws (AT THE SIDE OF THE LASER RING).
Adjustment is done in the basic position (I.I. up, X-ray head down).

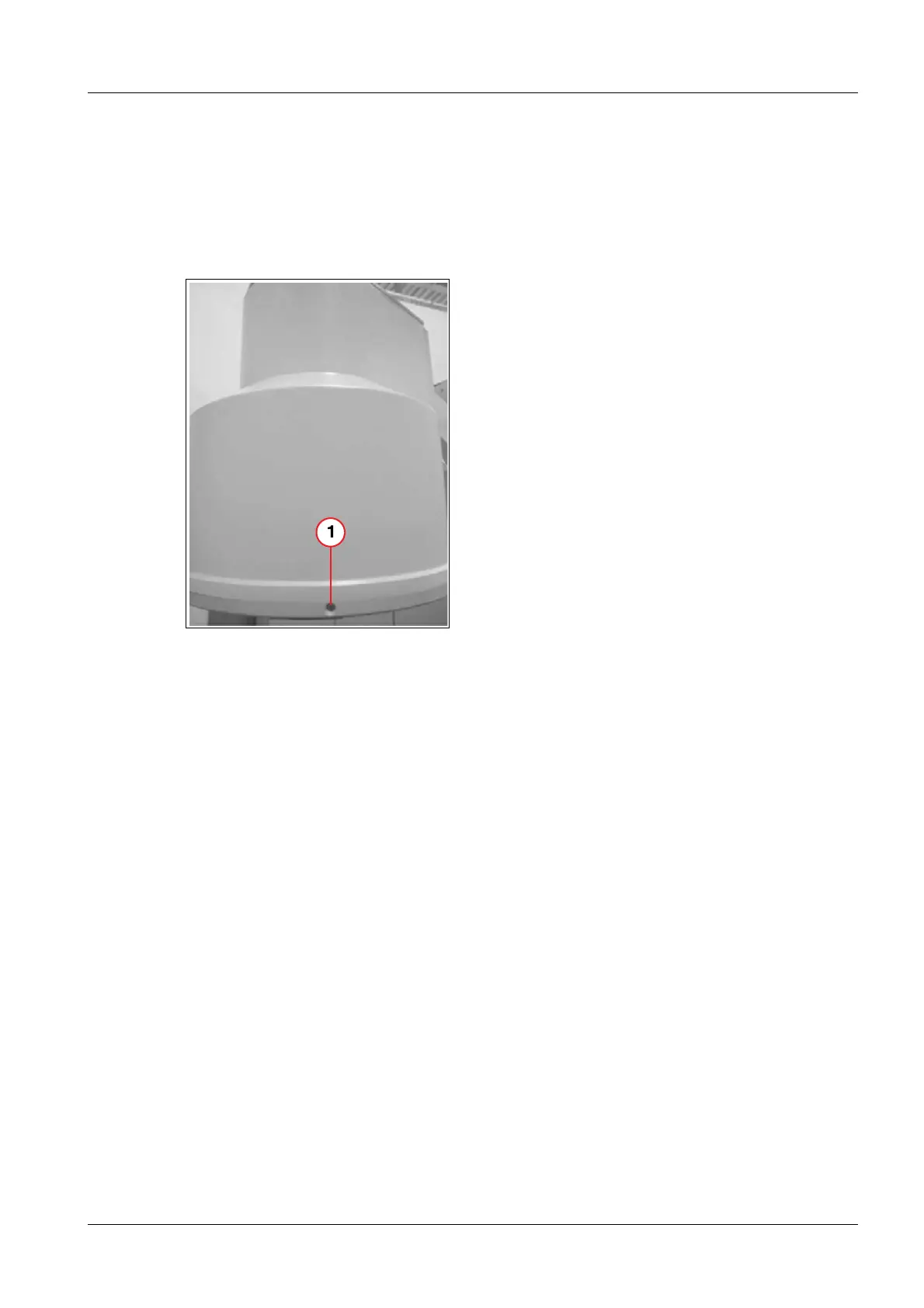

Fig. 10: Adjusting the laser light localizer
