12 Installation and Settings
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 12 of 20
Medical Solutions

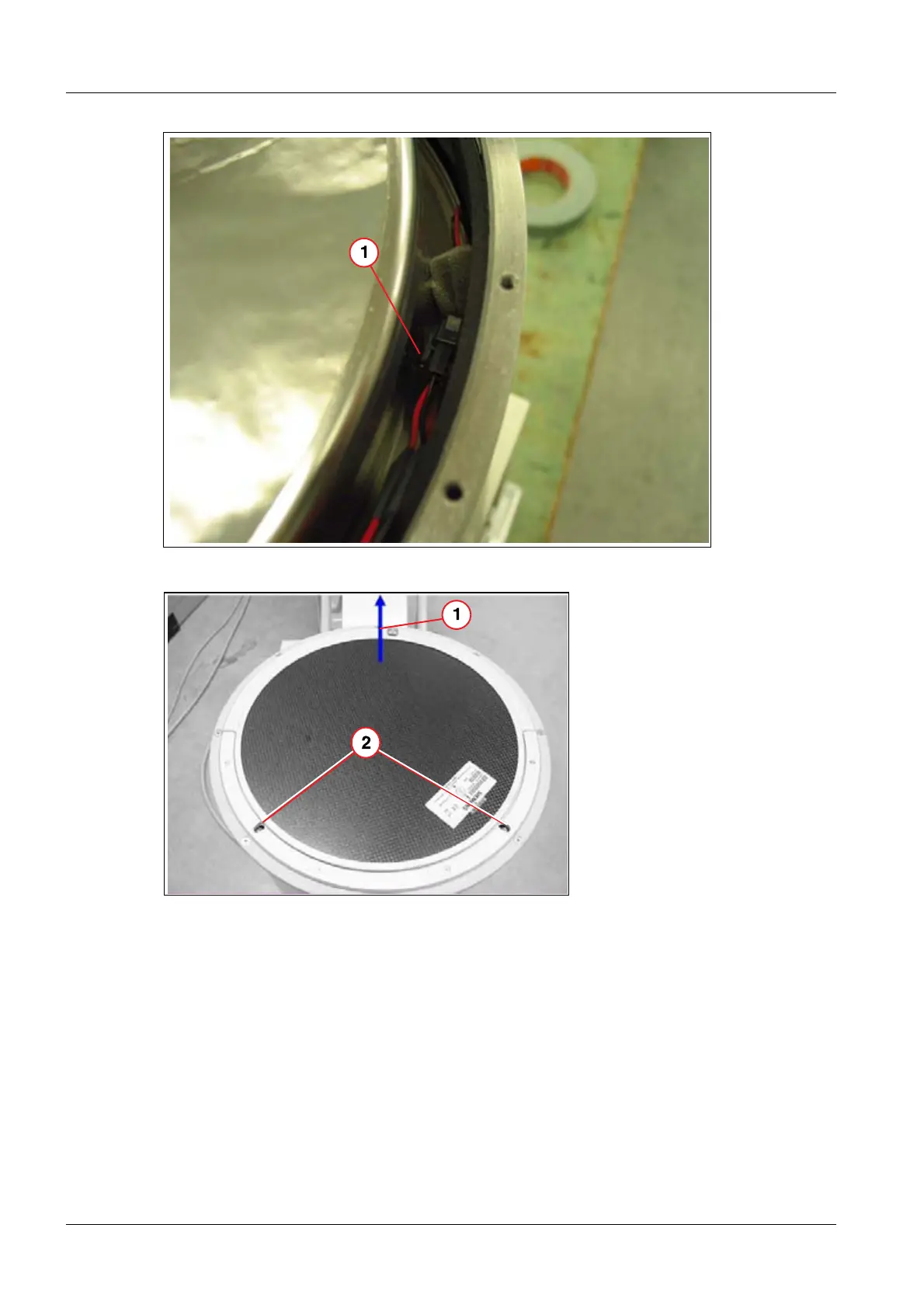

Fig. 8: I.I._3
Fig. 9: Mounting the laser light localizer
• Fasten the laser light localizer to the I.I. housing with Allen screws (making sure there
are no foreign bodies on the I.I. output screen); next, screw on the holder for the re-
moveable grid, then insert the removeable grid and secure it with the knurled thumb-
screw. For the mounting position of the laser light localizer, see ((1/Fig.9/p.12)).For
the position of the laser diodes see (2/Fig.9/p.12)
