Disassemble/Assemble of the Lower Housing Assembly

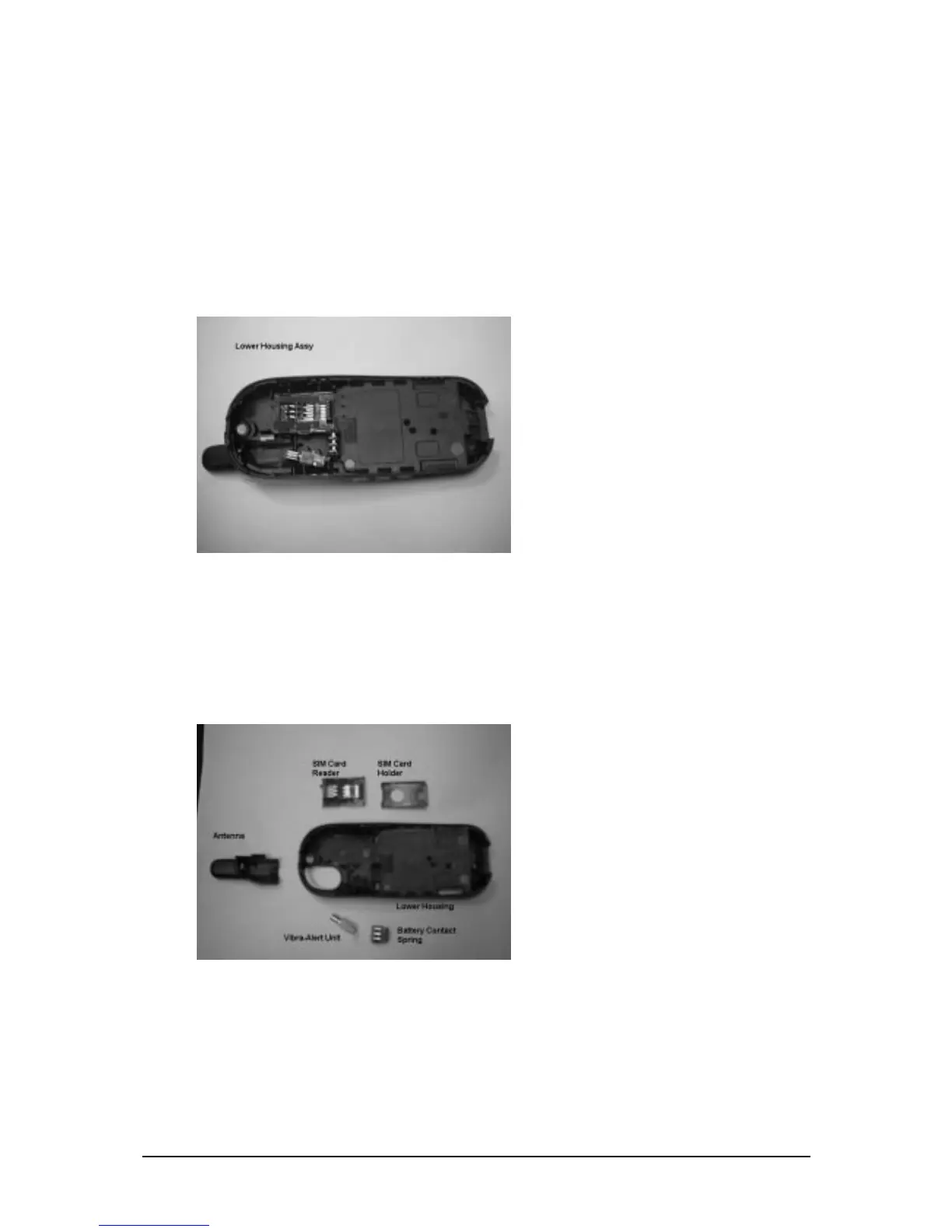

STEP 1:
Open the housing with the opening tool and carefully pull the lower housing section off as
illustrated in PHOTO 2.7
PHOTO 2.7 Lower Housing Assy – STEP 1
STEP 2:
Remove in sequence by hand the SIM Card Holder, SIM Card Reader, Battery Contact Spring,
Vibra-Alert Unit and the Antenna as illustrated in PHOTO 2.8
PHOTO 2.8 Disassembly Lower Housing – STEP 2
For Remove/Install the Antenna, watch out for the two catches on the Lower Housing. For install
of the other parts, watch out for the guide notches. For the assembly of the Lower Housing just
reverse the sequence for the disassembly.
