V1.0
25
Disassemble/Assemble the Control Board Assembly
STEP 1:
Open the housing with the opening tool and carefully pull the lower housing section off as
illustrated in PHOTO 2.9

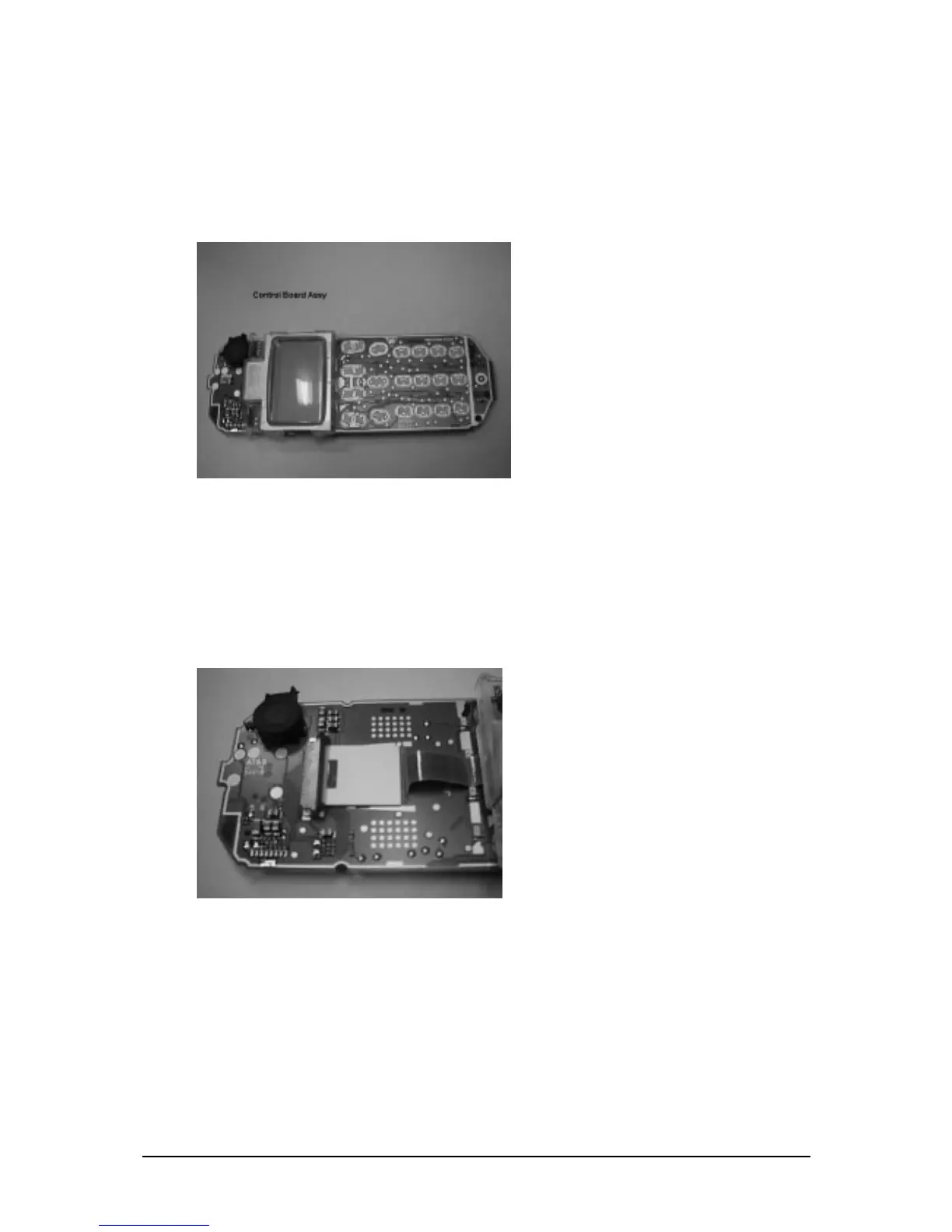

PHOTO 2.9 Control Board Assy – STEP 1
STEP 2:
Unlock the catches of the Display Module from the Control Board and move the display module
to the lower part of the PCB. Lift up carefully the retaining clip of the display connector on the
Control Board as illustrated in PHOTO 2.10
PHOTO 2.10 Disassemble Control Board Assy – STEP 2
To Next Page
