V1.0
39

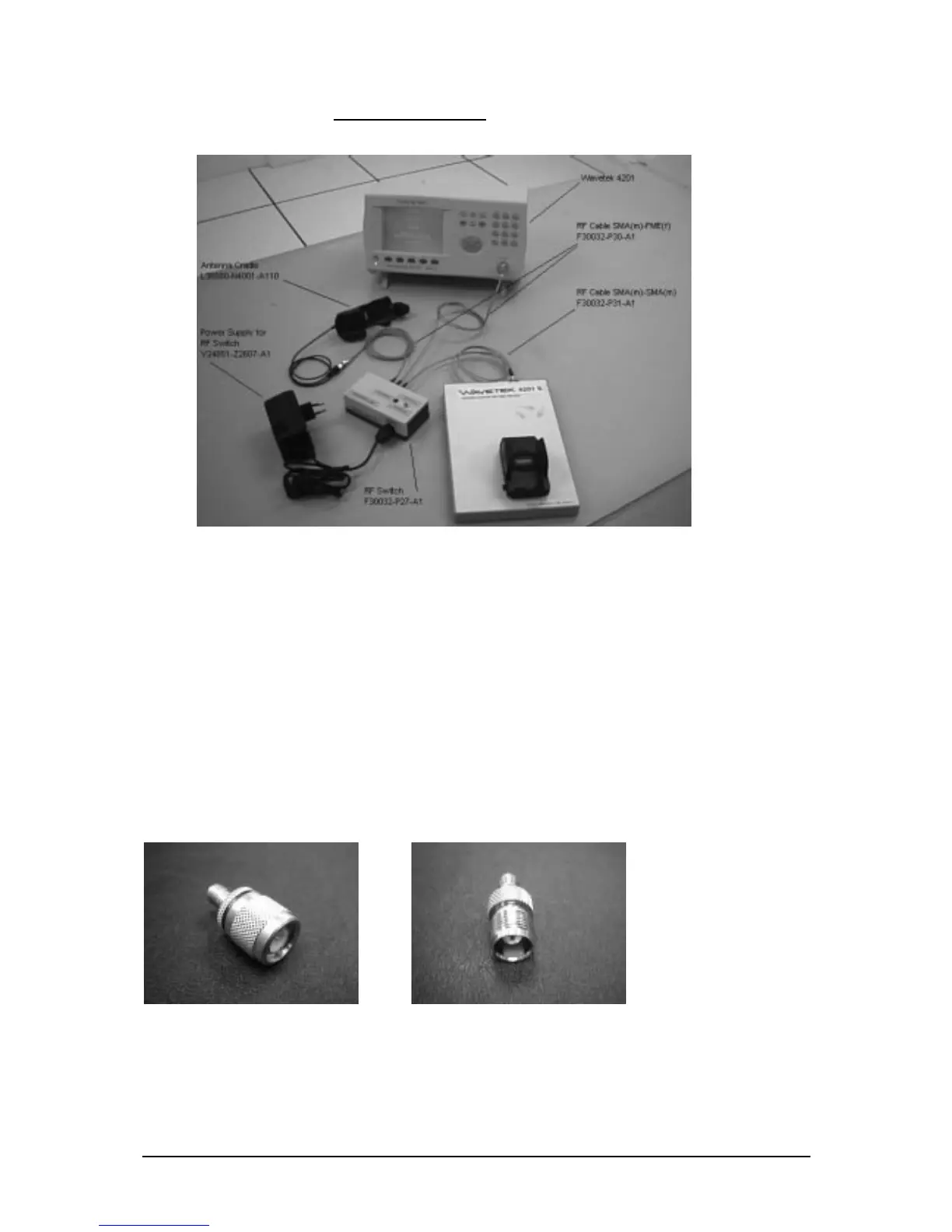

Wavetek 4201S Test Station
Other equipment
One Pentium MMX Window 95/98 PC with a serial port to connect to the GSM test set through
the PC serial cable provided for the GSM test set.
One Test SIM card and a fully charged battery for used with the mobile phone model.
Additional RF connector will be needed for setup using Wavetek 4107 test set and Wavetek
Antenna Coupler.
For LSO Test Station setup base on the Wavetek 4107 test set, you need a TNC(male) to
SMA(female) connector. For the Wavetek Antenna Coupler, you need a TNC(female) to
SMA(female) connector. The part number for the connectors will be announced soon.
For Wavetek GSM test set For Wavetek Antenna Coupler
