Disassemble/Assemble of the Upper Housing Assembly
STEP 1:
Open the housing with the opening tool and carefully pull the lower housing section off as
illustrated in PHOTO 2.12

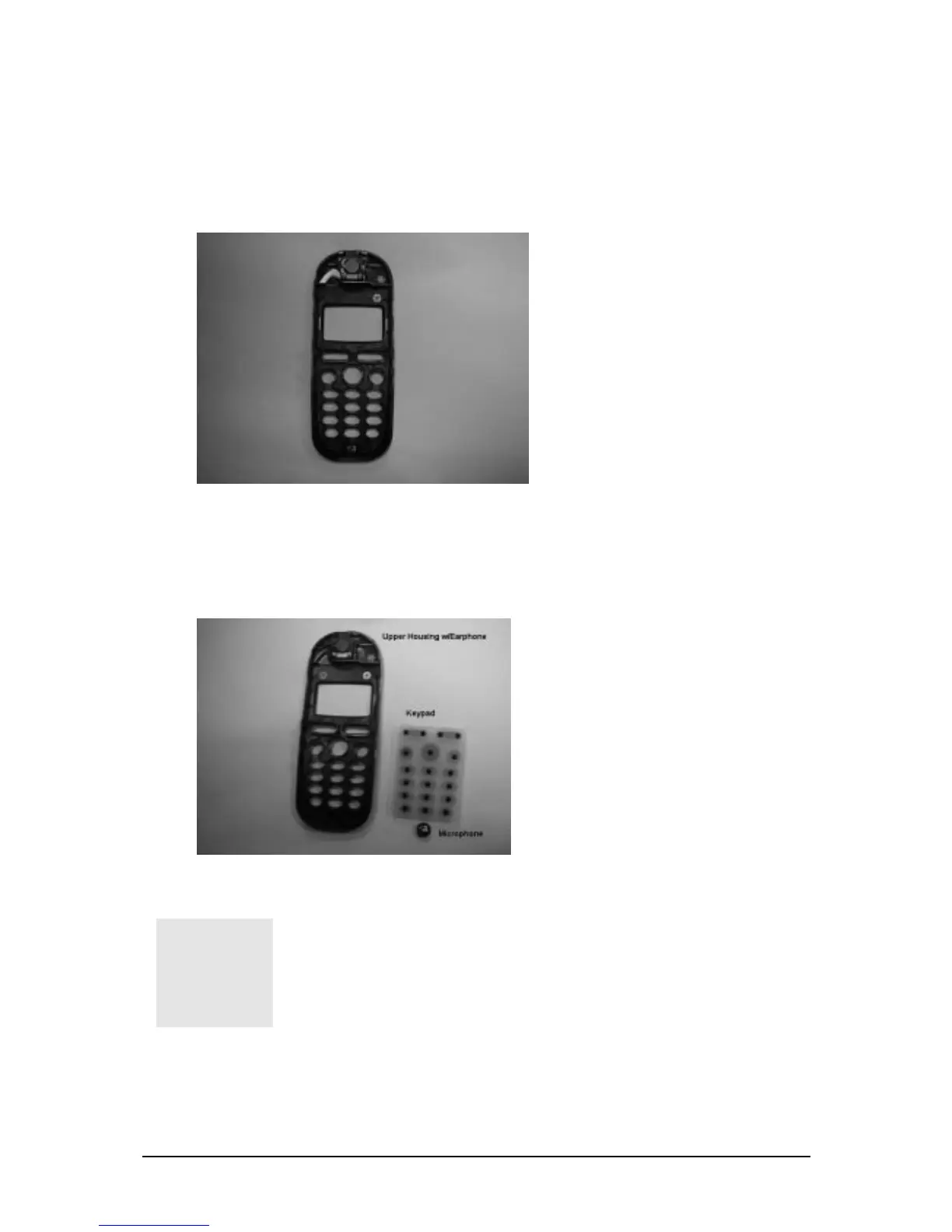

PHOTO 2.12 Upper Housing Assy – STEP 1
STEP 2:
Remove the Keypad by hand and use a fine point metal tweezers to remove the microphone as
illustrated in PHOTO 2.13
PHOTO 2.13 Disassemble Upper Housing – STEP 2
The loudspeaker is glued to the upper housing section by a foam
covered with glue on both sides. When you remove it, the foam
will be damaged. Please use new loudspeaker for assembling
Upper Housing Assembly.
For assembly of a new Upper Housing install a new earphone first, watch out for the orientation.
For install of the other parts just reverse the sequence for the disassembly.
