STEP 3:
Remove the Display Module and the Buzzer Sealing from the Control Board as illustrated in
PHOTO 2.11

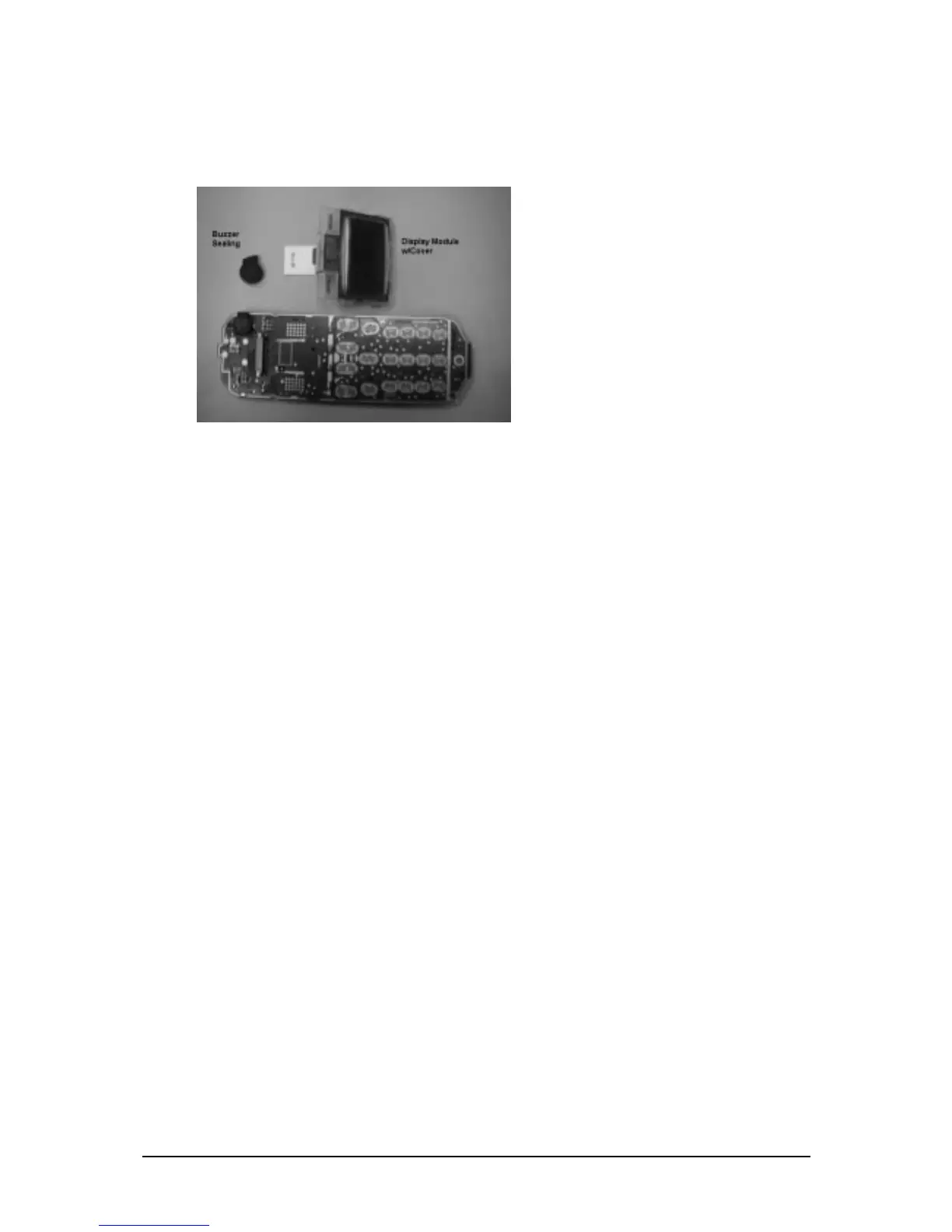

PHOTO 2.11 Disassemble Control Board Assy – STEP 2
For Remove/Install the display module, watch out for the catches on the display module and the
guide hole of the PCB. For the assembly of the Control Board assembly just reverse the
sequence for the disassembly.
