Running the test sequence
Make sure that your CTS firmware is Version 3.01 or higher. For
CMD 55 it must be Version 4.03 and higher. Please check with the
Service Info SB_0500 for the CTS/CMD Hardware Options.
Insert a Test SIM card and a fully charged battery into the Siemens mobile phone and place it
onto the phone holder on the Antenna Coupler. Switch the RF switch to INT ANT position and

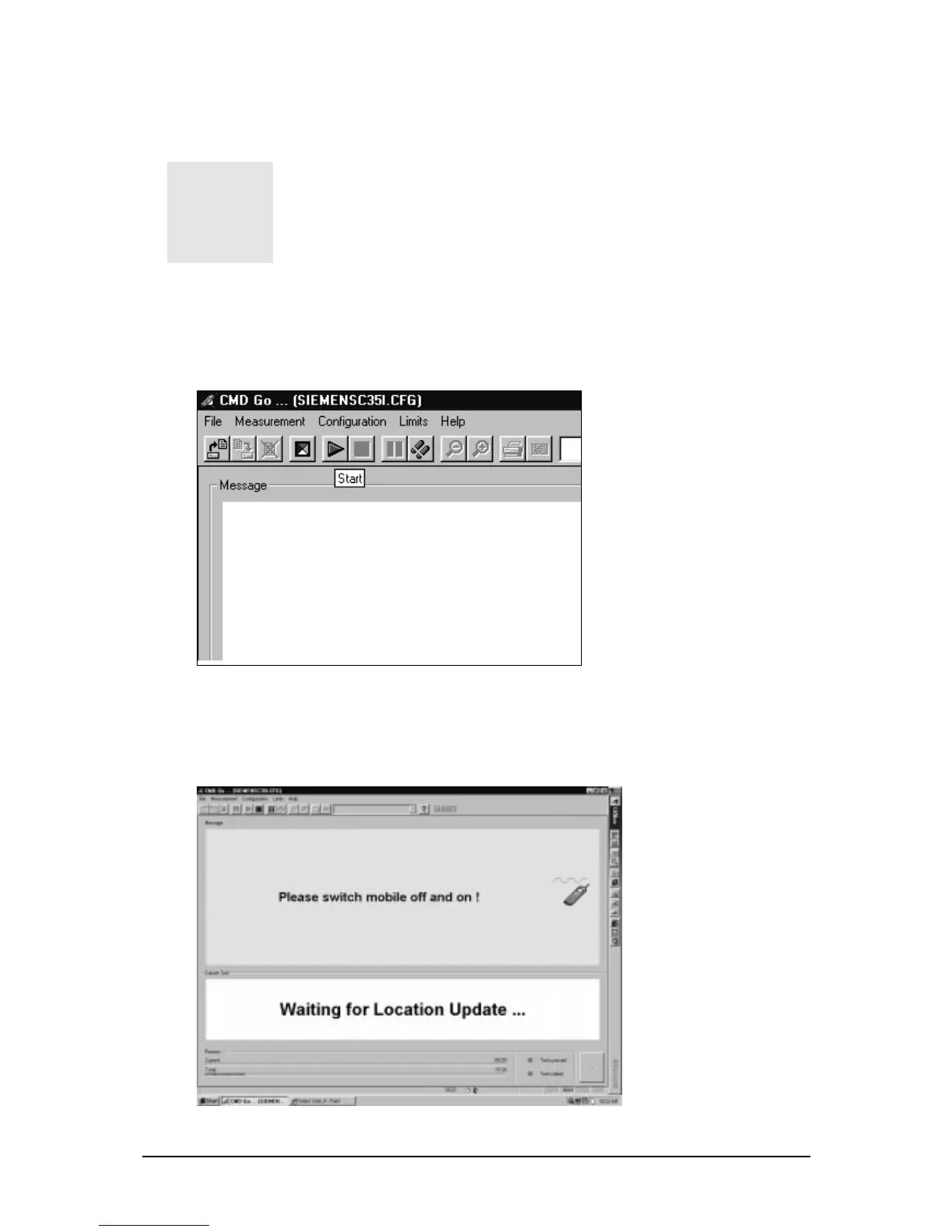

select the Start button to run the test sequence in the configuration file.
Follow the instruction on the screen and switch on the phone. The mobile phone will start
Network Search and doing Location Update to the GSM test set through the off-air signal from
Antenna Coupler.
