$QWHQQD &RQQHFWRU
Affected Units
Type: C/M/S35
Affected IMEIs / Date Codes:
All / All
Affected SW-Versions:
All
Fault Code for LSO reporting: 3ANC
Fault Description
Fault Symptoms for customers:
Network Search when using the external antenna (carkit)
No location update possible on external antenna (carkit)
Fault Symptom on GSM-Tester:
Output power problems on the external antenna
No location update possible
Component Information
The Antenna Connector is a mechanical switch operated by the RF plug of a carkit or, for testing
purposes, of an RF clip.

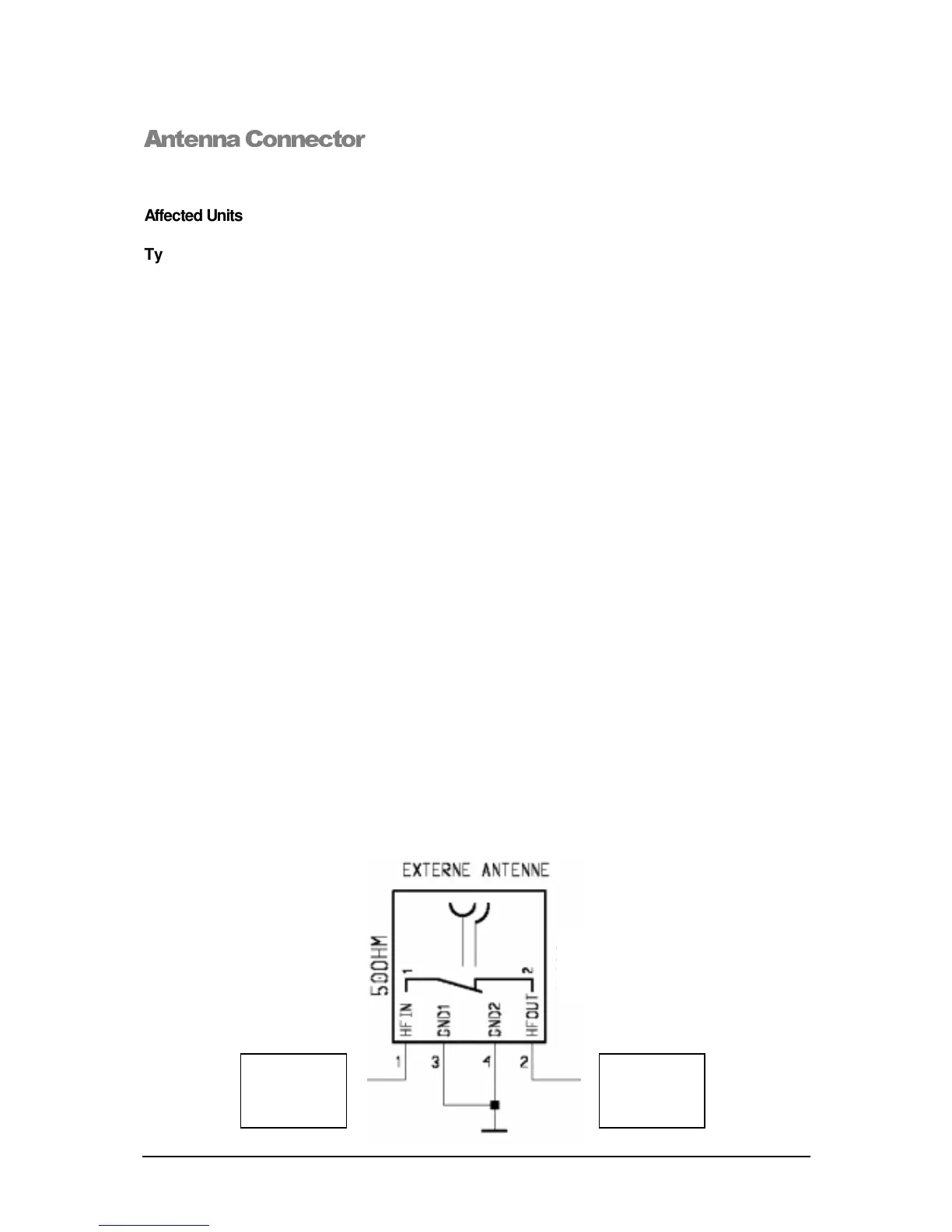

Normally the RF signal goes to and comes from the internal antenna. Whenever an RF plug is
plugged into the antenna connector the connection to the internal antenna is opened and the
connection to the external antenna socket is made. See drawing below.
From
Power
Amplifier/
