CMR Installation and Operation Manual | Issue: July 2021, Revision 01.0
7
3 Packing and Storage

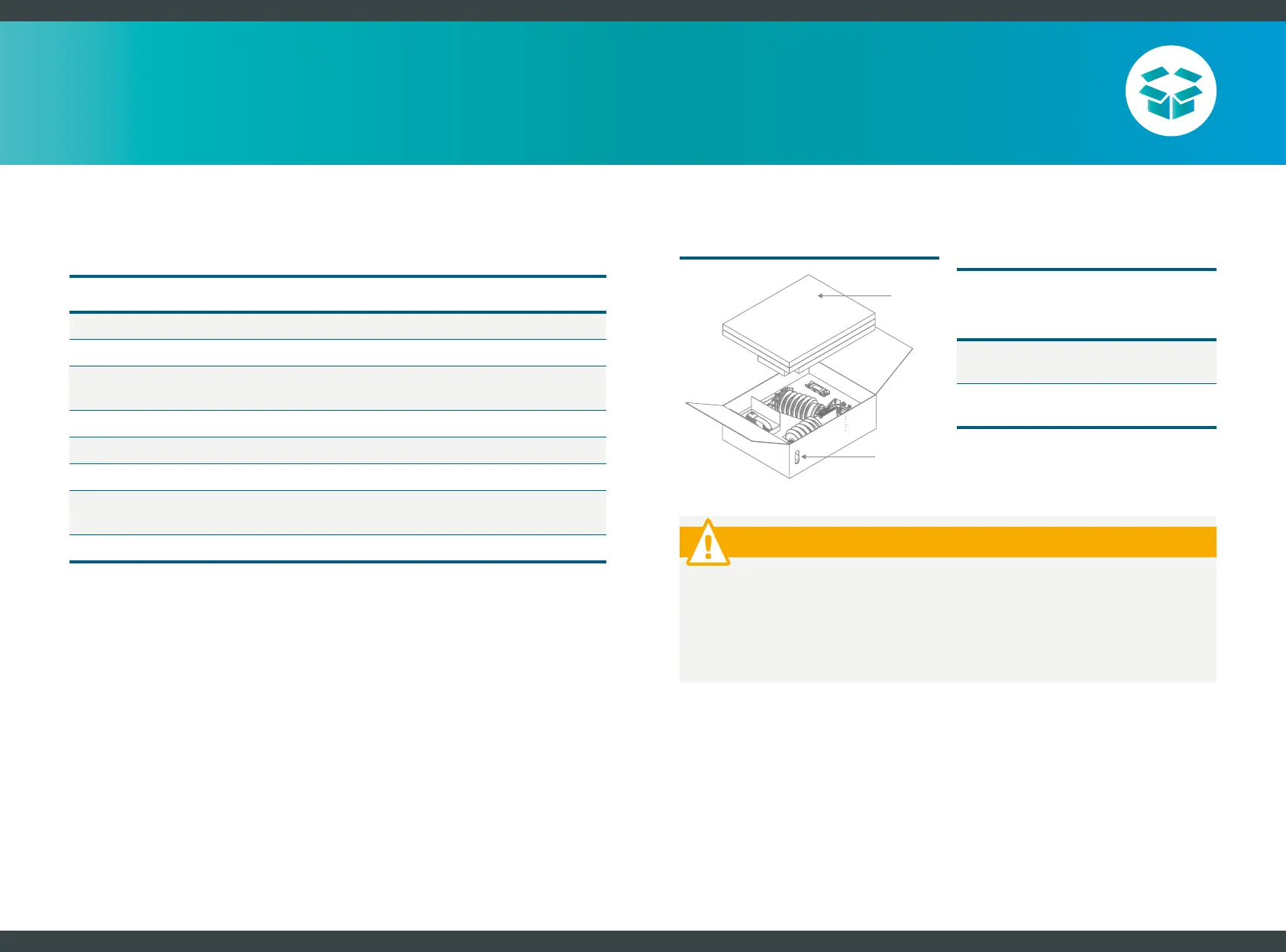

Figure 1: Compact Recloser packaging
FOAM INSERT
HANDLE
Typical weights and dimensions:
Compact Recloser with
Battery Module and Crossarm
Clamp Assembly
900 mm L x 700 mm W x 300 mm
H / 36" L x 28" W x 12" H
Approx. 23 kg /
50 lbs Nett
Approx. 30 kg /
65 lbs Gross
Additional miscellaneous items ordered,
such as mounting hardware, will be
packaged in separate cardboard cartons.
CAUTION
Heavy object
Can cause muscle strain or back injury
Conduct risk assessment and use lifting aids and proper lifting techniques.
Recommend minimum two-person lift using handles provided in the packaging.
3.1 Required tools
Tool description Where it is used
Nefab Tool or similar Unpacking (for crate only)
5/16" Socket on powered drill Unpacking (for crate only)
Lifting shackles <18mm dia. pin
& sling with suitable load rating
Installation
9/16"/16mm spanner or socket Installation
3/4"/19mm spanner or socket Installation
15/16"/24mm spanner or socket Installation
Torque wrench/s for 17Nm/13lb-ft,
30Nm/22lb-ft & 40Nm/30lb-ft
Installation
Phillips No.2 Screwdriver Maintenance (Battery Module)
3.2 Single-phase packaging
Compact Reclosers are packaged as individual units in a reinforced recyclable
cardboard box with foam inserts. The box is labelled with the unit details and
configuration settings (if factory configured). Siemens recommends retaining the
factory-supplied packaging for storage and transportation to the installation site.
