Input/Output Terminals
Function diagrams
2-511
© Siemens AG 2011 All Rights Reserved
SINAMICS G120 / Control Units CU240B/E-2 Parameter Manual (LH11), 01/2011

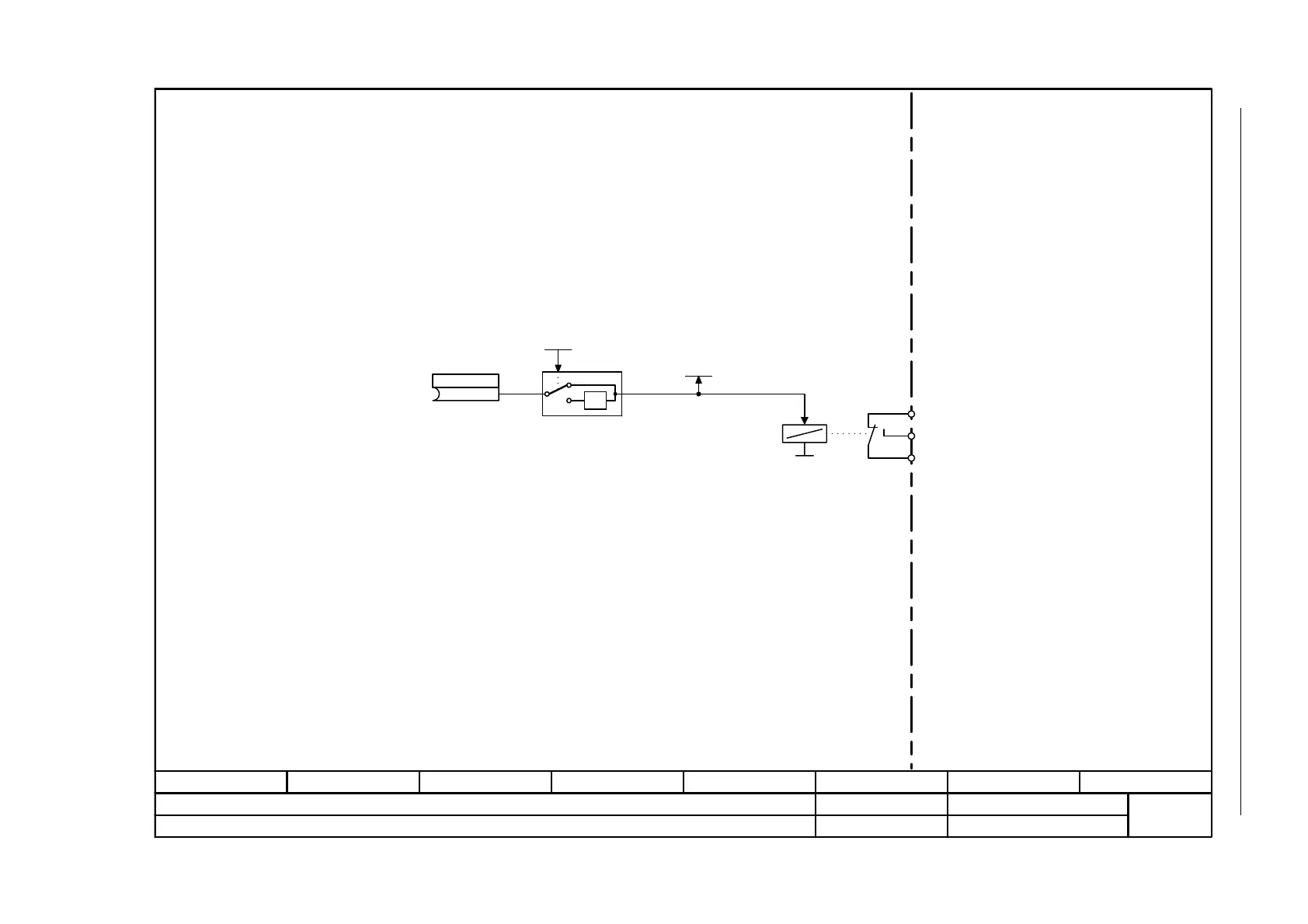

Fig. 2-16 2231 – CU240B-2: Digital output (DO0)
- 2231 -
Function diagram
87654321
FP_2231_97_02.vsd
External Interfaces
G120 CU240B-2
13.12.2010 V4.4
Digital output (DO0)
-1
0
1
(52.3)
CU S_src DO 0
p0730
CU DO inv
p0748
.0
NO
COM
NC
Kl.20
Kl.19
Kl.18
DO0
<2> Kl. = Terminal
<2>
Sampling time of the DO : 2 ms
CU DO status
r0747
