Siemens FC2005 Installation Instruction

DACT
Power limited
Relays
Non power limited, 2.0A@30VDC(Resistive), 0.5A@30VAC(Resistive)
S_NO S_CO S_NC U_NO U_CO U_NC
A_NO A_CO A_NC
T_NO T_CO T_NC
Supervisory relay
Dry contact
User defined relay
Dry contact
Alarm relay
Dry contact
Trouble relay
Dry contact
De vice m odule Manufacture
MX8000 Honeyw ell
DACT compatibility list
DACT
PORT1
DACT
PORT2
Primary Phone line
Secondary Phone line
RJ31-X
Jack
Ring
Tip
1 2 3 4 5 6 7 8
Tip
To premises phones
Ring
(Secondary Lines Incoming Telco Phone Lines)
RJ31-X
Jack
Tip
To premises phones
1 2 3 4 5 6 7 8
Ring
Ring
Tip
(Primary Lines Incoming Telco Phone Lines)

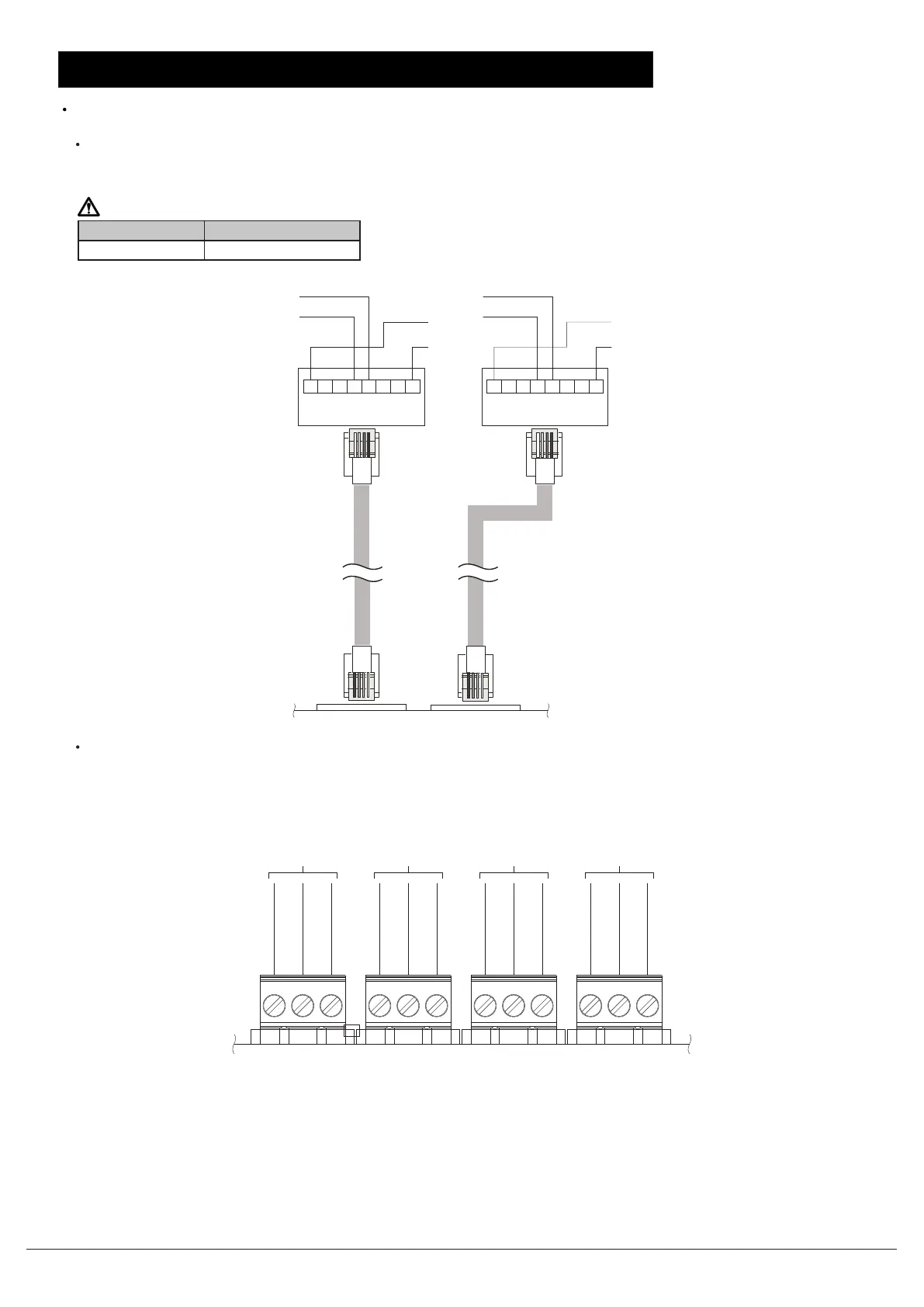

FC2005/FC901 SYSTEM CONNECTION DIAGRAM
FC2005/FC901 SYSTEM CONNECTION DIAGRAM
Document ID: A5Q00039713A
Page 11/12 02.2012
Fire Safety & Security Products
Building Technologies
FC2005/FC901 installation instruction
Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ 07932
