18.3 Views
K2
K1
1
1
3
1
1
1
X3
X4
S1
X5
X1
H1
H2
H3
S3
X2
S2

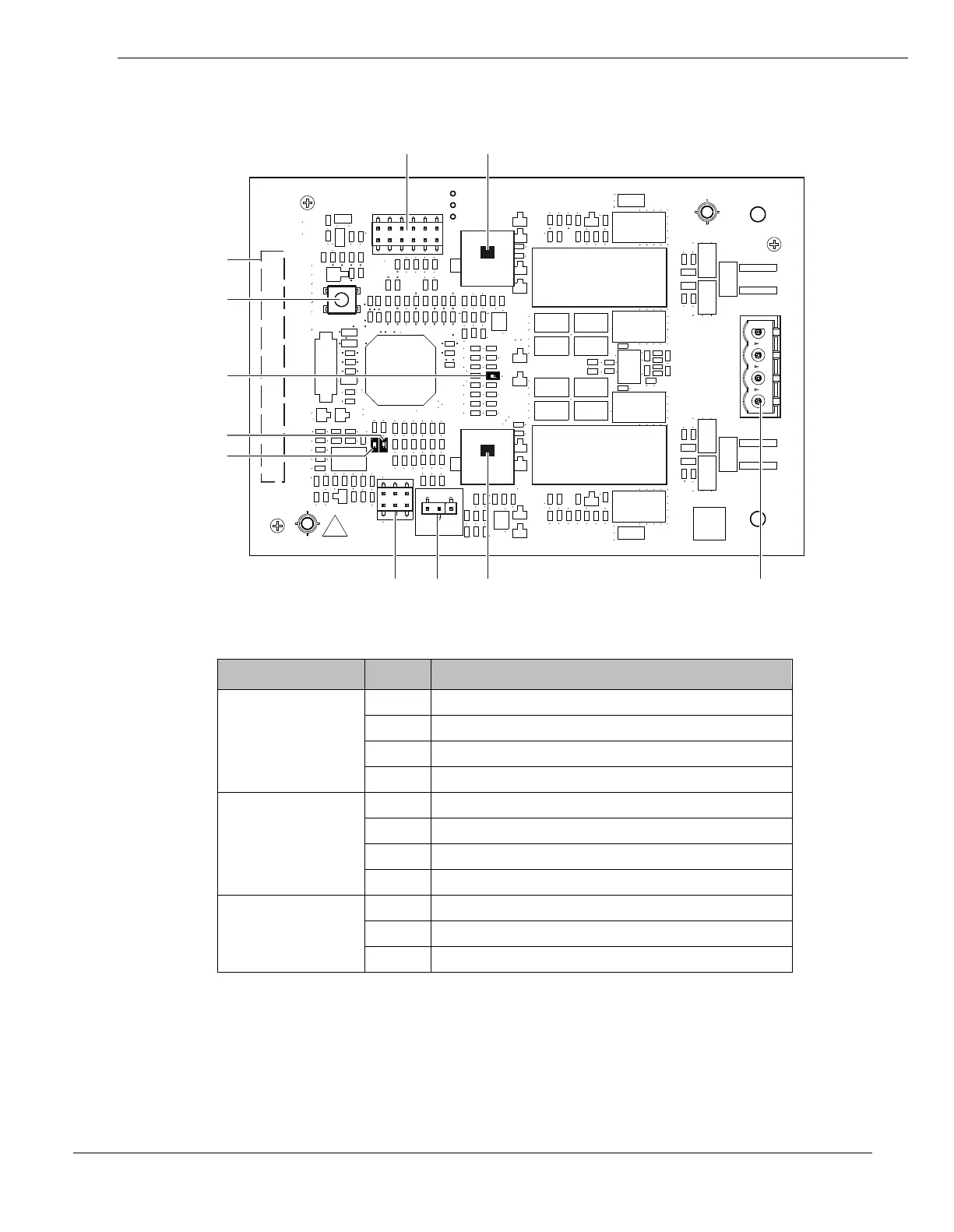

Printed circuit board view for XCI2001-U1
Element
Des.
Function
Connector X1 Plug for periphery board connection
X2 Service plug for programmed connection (not used)
X4 Diagnostic service plug (not used)
X5 Releasing relay outputs
Adjustment elements S1 Switch: Arm/Disarm releasing output 1
S2 Switch: Arm/Disarm releasing output 2
S3 Reset key
X3 Jumper for degraded mode enable
LEDs H1 Display: Releasing output 1 status ON/OFF
H2 Display: Releasing output 2 status ON/OFF
H3 Flashing: Releasing module is active
