6.4 Wiring the Operating Unit

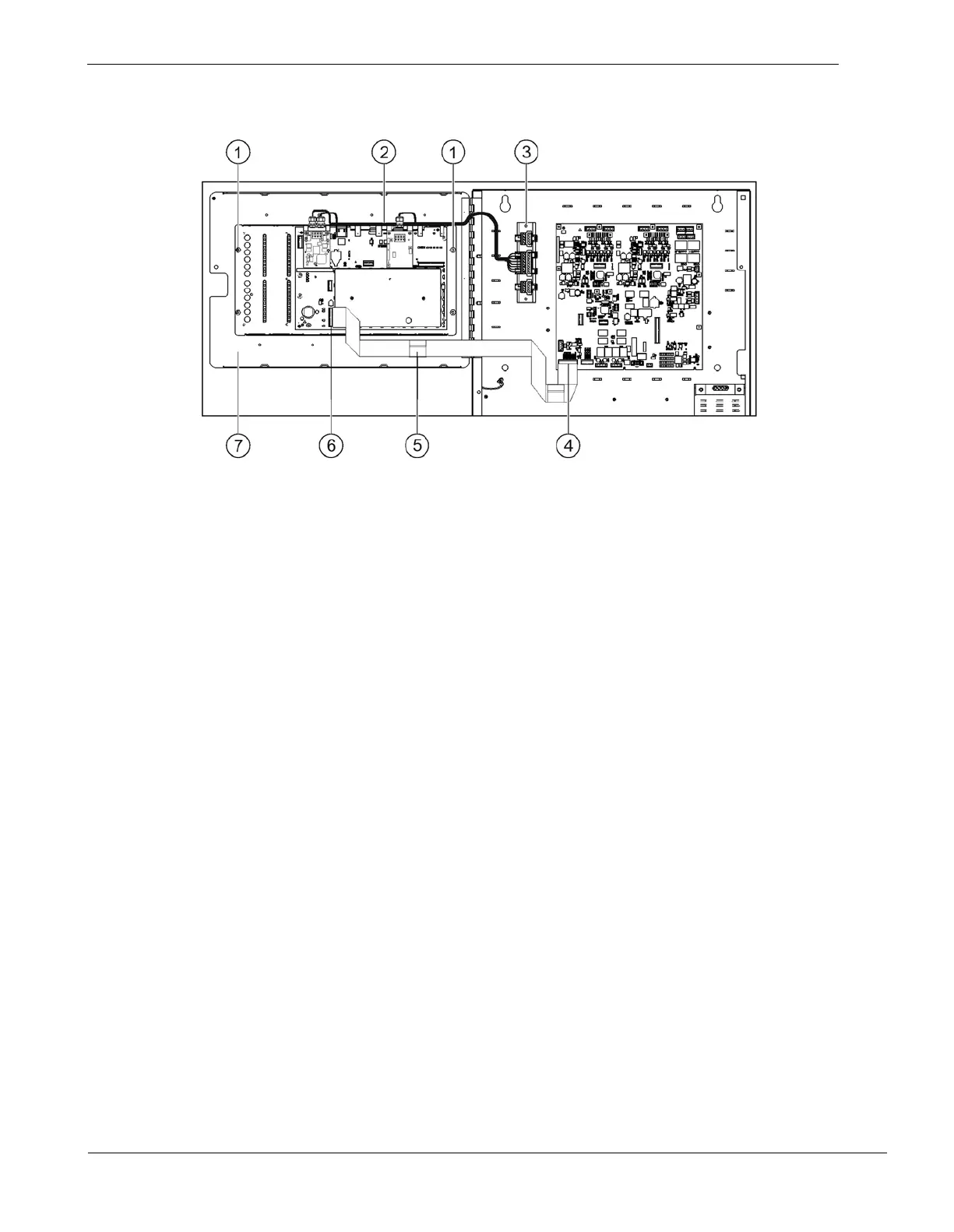

Wiring the FCM2018 operating unit (inside view)
1 Screw fastenings of operating unit
2 Wiring to modules of operating unit
3 DIN Rail kit FHA2031-U1
4 Periphery bus connection on periphery board (X201)
5 Ribbon cable fixing with cable support
6 Peripheral data bus connection on Operating Units &
Mainboard (X3)
7 Inner door with FCM2018 operating unit
Wiring
1. Insert the connection cable to the periphery board into the intended slots (4 and 6).
2. Stick the supplied cable supports (5) into the panel as shown and fix the flat cable.
3. Guide the cables for the operating unit modules (2) to the DIN Rail set (3) as shown and fix these
cables with cable ties.
4. Insert the supplied inscription strips underneath the operating unit film as shown in the following figure.
5. Swivel the inner door towards the panel and secure it using the locking screw.
