FCM2041-U3 OPERATOR INTERFACE MANUAL | CHAPTER 4
OTHER MODES4-2
DIAGNOSTICS Diagnostics displays a series of statistics typically used by Siemens Industry, Inc. to
evaluate the operation of the system.
LAMP TEST Press the menu button to display the OI Menu Screen. Next, press the Lamp Test
soft key at the bottom of the screen. See Figure 4-2 for FCM2041-U3.
The Lamp Test begins and will run for 30 seconds. All of the LEDs on the OI will
illuminate and the screen will go dark. (You can exit the Lamp Test at any time by
pressing the Menu Button.)
ALTERNATE LANGUAGE When both a base language and an alternate language are selected in the Zeus
programming tool, the OI will display a “language” soft key on the Main Menu
screen. Pressing this key will toggle to the language indicated on the button label.
For example, if English is the base language and French is the alternate language,
pressing the button “Français” will toggle the panel display to French. See Figure 4-2
for FCM2041-U3.
Alert
Report
Maint
10:53
Category text information
Logout
Diagnostics
Lamp Test
Press any lit green arrow key to continue.
Press “?” for more help information.
ALERT: Firefighter’s Mode, view events.
REPORT: View/Print event and system info.
MAINT: Control devices and inputs/outputs.
FUNCTION KEYS: Execute logic commands.
LOGOUT: Leave password protected area.
DIAGNOSTICS: For factory use only.
LAMP TEST: 30 second PMI LED test.
Function Keys
Menu
FireFighter@1
Français

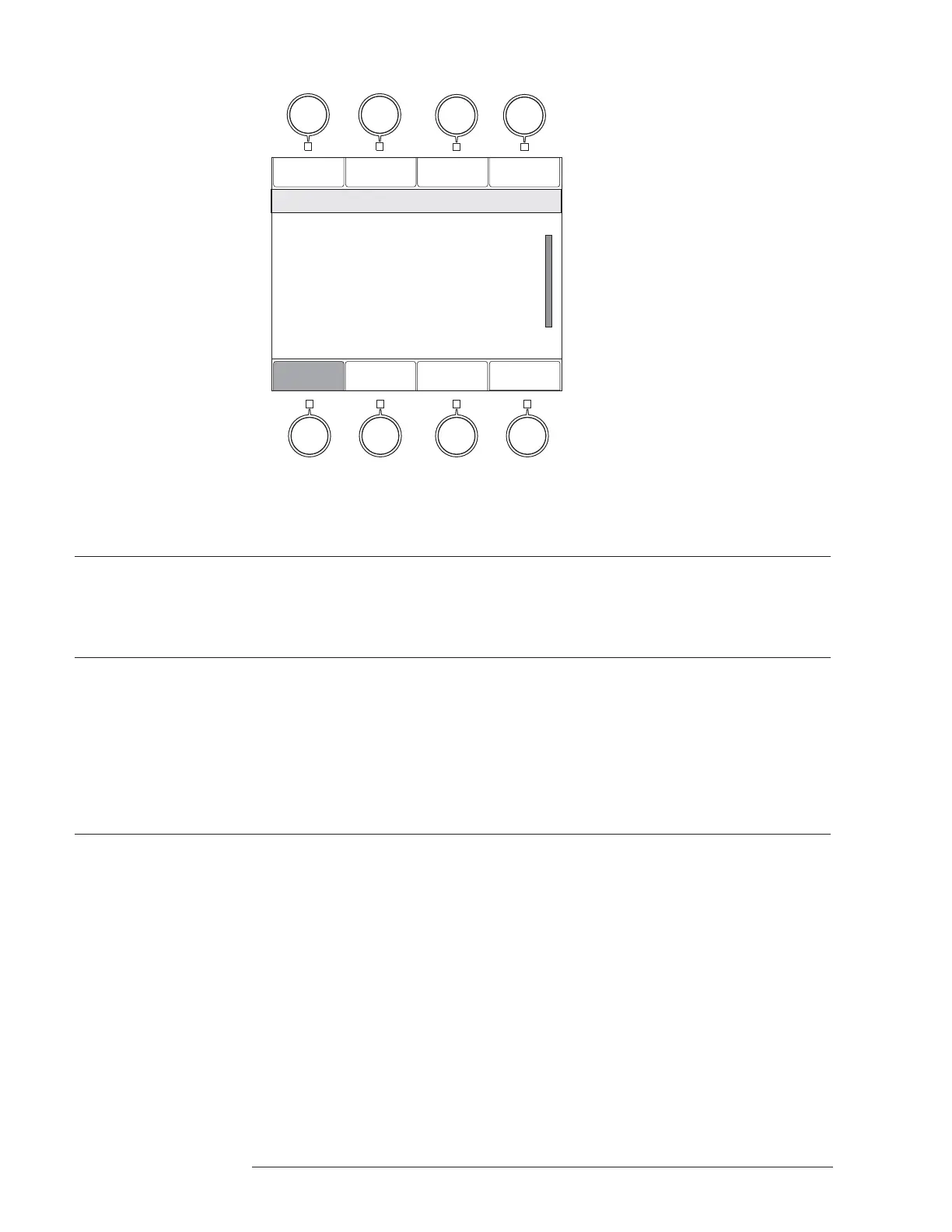

Figure 4-2
FCM2041-U3 Menu Screen - Logout
