1-14 DESCRIPTION
FIREFINDER-XLS INSTALLATION, OPERATION AND MAINTENANCE MANUAL | CHAPTER 1

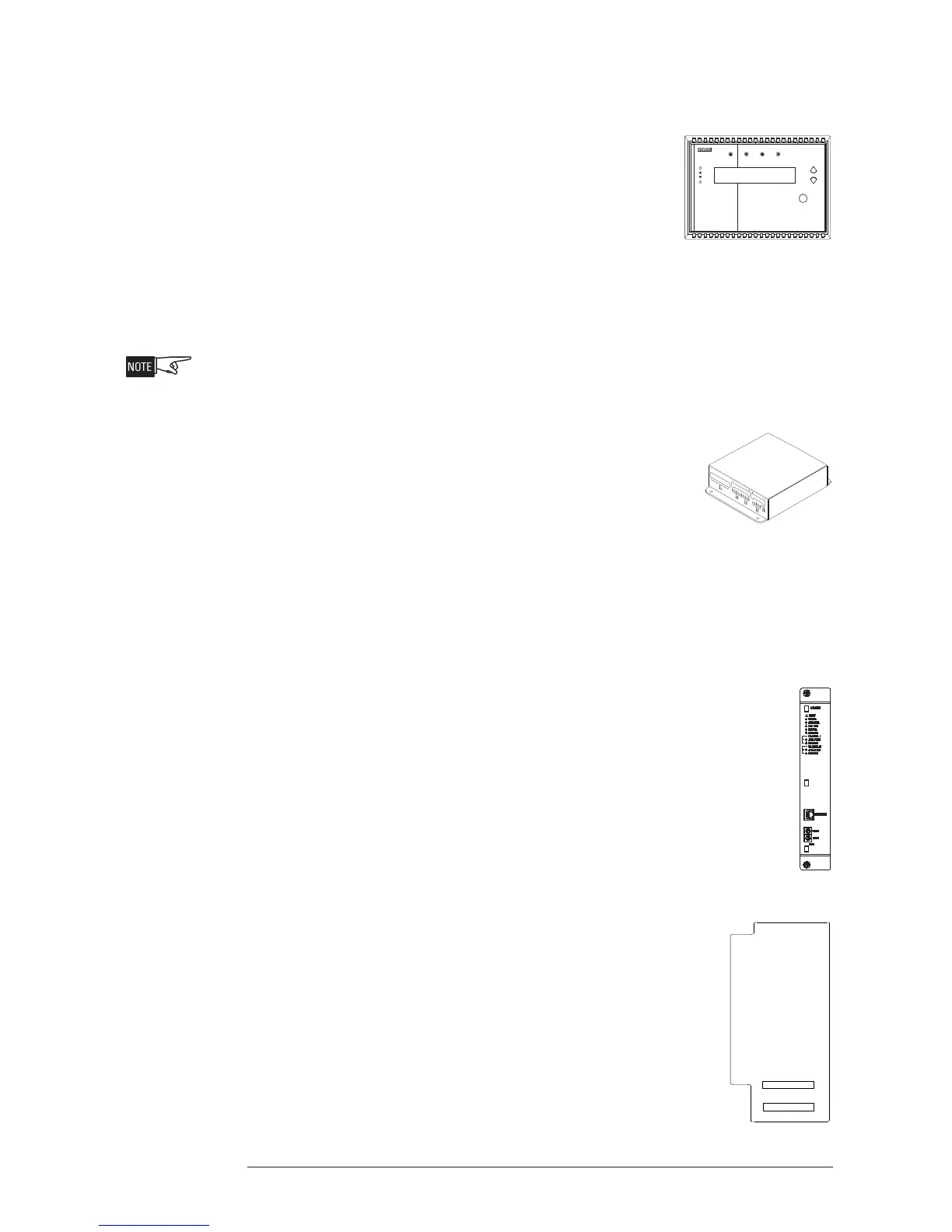

SSD System Status Display The SSD displays the Alarm, Trouble, Security, and Supervi-
sory event status of a system remotely from the PMI/PMI-
2/PMI-3. It has four 40 character alphanumeric LCD charac-
ter lines, backlit upon status change or display toggling. This
module is supervised by the main panel and also has LEDs
and an optional sounder to indicate the status of the
system. The SSD has the capability to store up to 1500
event messages and has pushbuttons to scroll through
these events. Its display is independent from the display on
the PMI/PMI-2/PMI-3 and during the SSD initial power up, it
is configured as a Display Only module. SSD-C and SSD-C-REM models have the
capability to control the system remotely from the PMI/PMI-2/PMI-3.
The SSD, SSD-C, or SSD-C-REM must be operated in display-only mode if the
system is configured for expanded queue mode.
VPM VESDA® Peripheral The VPM is an HNET module that interfaces to a VESDA
Module HLI High Level Interface. The VPM must be mounted on a
VPM-MP mounting plate (S54430-F95-A2) inside a CAB
enclosure with an HLI card and a socket card (VESDA-HLI-
Kit S54430-F99-A2). This equipment will support VESDA
LaserFOCUS™, LaserCOMPACT™, LaserPLUS™,
LaserSCANNER™, LaserINDUSTRIAL and FireTRACER detectors. One VPM can
support two VESDA-HLI-Kits and a total of 200 VESDA detectors. The VPM uses one
network address on the FireFinder-XLS System. All VESDA detectors connected to
the VPM are addressed using a VESDA programmer. The VPM communicates the
status of the VESDA devices over HNET to the FireFinder-XLS System where it can
be displayed on the PMI/PMI-2/PMI-3.
XDMC XLS Digital The XDMC has a library of factory-recorded phrases which the user may
leverage to form custom messages. This operation is performed with the
XDMC Message Composer tool, which is available both within the Zeus
programming tool and as a standalone application. The user may also
provide a library of custom phrases using the Composer tool. An XDMC
can store up to 300 prerecorded messages and 60 minutes of audio.
XMI FireFinder-XLS to The XMI provides an interface between the FireFinder-XLS
MDACT Interface System and the MDACT Digital Alarm Communicator. Both the XMI and
the MDACT must be installed in the same MOM-2 cardcage.
Mounting plate Model MOM2-XMP is required to install the
MOM-2 into the FireFinder-XLS enclosure models
CAB-1/-2/-3. The XMI has two 60-pin receptacles for the
FireFinder-XLS data bus allowing the MOM-2 containing the
XMI to be installed into any module location in the rear of a
CAB-1/-2/-3. The XMI receives 24V power from the PSC-12 and
produces a local 5VDC and 24VDC for the MOM-2 which in turn
provides power to the MDACT.
Digital Message Card
AUDIBLES
SILENCED
ON
SUPERVISORY
ALARM
LOCAL
ACK
TROUBLE
SECURITY
XMI
JP2
JP1
