Siemens HCP User Manual

Siemens Industry, Inc.
Building Technologies Division
P/N 315-034860-138

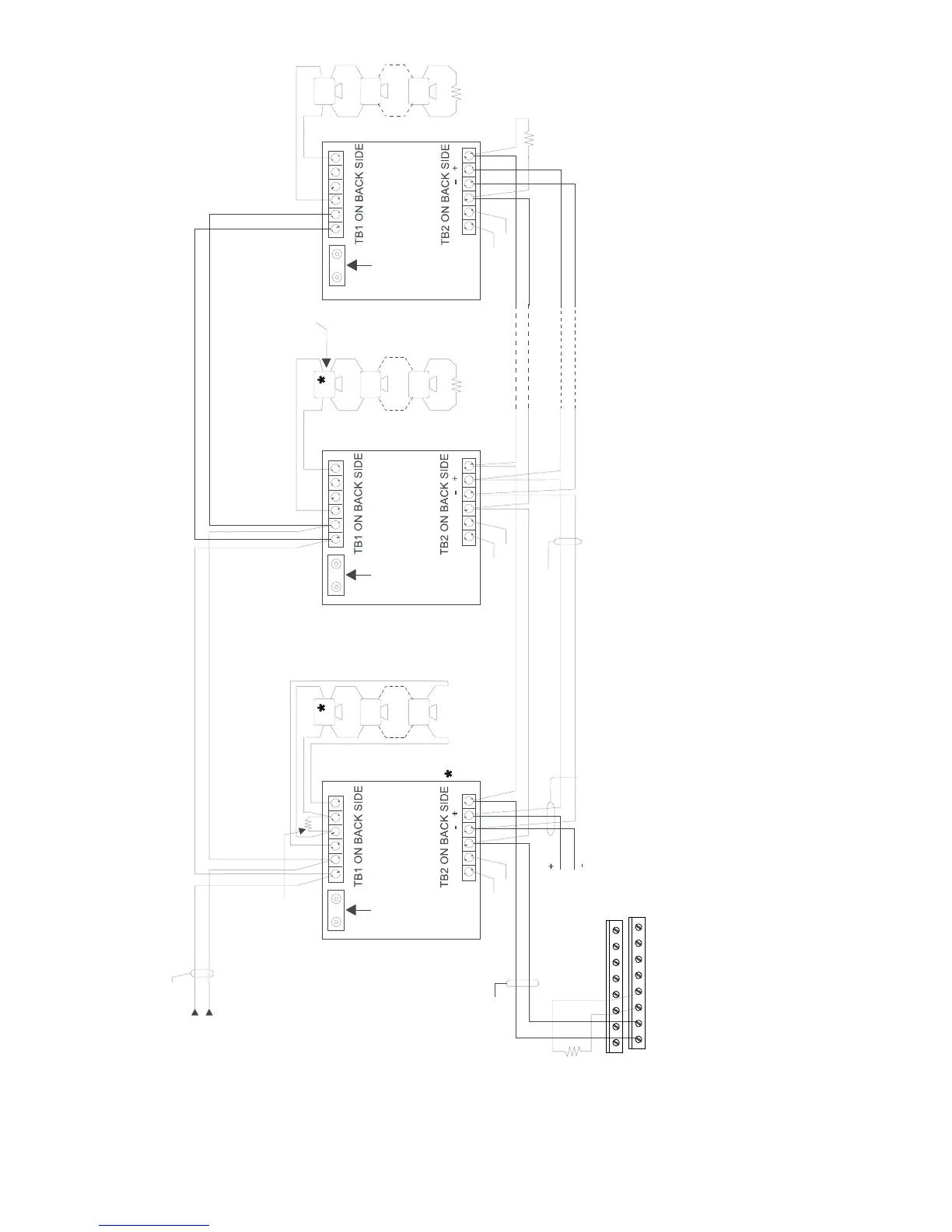

Figure 9 HCP Used On An XLSV As A 70.7V/25V Speaker Zone
POSITIVE AND NEGATIVE
GROUND FAULT DETECTED
AT <500 OHMS FOR
TERMINALS 3-6 ON TB1.
POSITIVE AND NEGATIVE GROUND FAULT DETECTED
AT <500 OHMS FOR TERMINALS 3-6 ON TB1.
POSITIVE AND NEGATIVE GROUND FAULT DETECTED
AT <500 OHMS FOR TERMINALS 3-6 ON TB1.
SUPERVISED RISER
EARTH
SHIELD
SHIELD
HCP
HCP DC SUPPLY FROM
PSC-12 (TB3), PSX-12 (Tb3),
OR PAD-4* (TB16)
FROM DLC
DEVICE LOOP IN CC-5 / CC-2
POWER LIMITED
70.7V/25V RMS SPEAKER UNITS:
SEE COMPATABILITY GUIDE
P/N 315-096363 FOR LIST OF
COMPATABLE SPEAKERS.
DC INPUT RATING 18.8-28.2VDC, 30mA FILTERED FULL WAVE
SUPERVISED BY HCP MODULES
NFPA STYLE Y
AUDIO RISER CONNECTIONS
SUPERVISORY: 14 VDC, 1mA
AUDIO OUTPUT: 70.7/25 VRMS,
40 WATTS MAX
POWER LIMITED
STYLE Z
SUPERVISED SPEAKER ZONE CONNECTIONS
SUPV: 14 VDC, 1mA
ACTIVATED: 70.7 V/25V RMS, 25 WATTS MAX
24K, W, +/-5%½
EOL RESISTOR
P/N 140-034677
EARTH
SHIELD
HCP
STYLE Y
SUPERVISED SPEAKER ZONE CONNECTIONS
SUPV: 14 VDC, 1mA
ACTIVATED: 70.7 V/25V RMS, 25 WATTS MAX
CAPACITOR COUPLED 70.7V/25V RMS SPEAKERS
24K, W½, +/-5%
EOL RESISTOR
P/N 140-034677
EARTH
SHIELD
HCP
24K, W½, +/-5%
EOL RESISTOR
P/N 140-034677
68K, 1/4W, +/-5% EOL RESISTOR ON LAST HCP SPEAKER ZONE DEVICE P/N 140-034728
ALL WIRING MUST COMPLY WITH NATIONAL AND LOCAL CODES.
12345678
910111213141516
ZAC-40 LOCATED IN ONE SLOT OF CC-5/CC-2
654321 654321
654321
123456 123456
123456
LINE 1
LINE 2
PROGRAMMING POINTS
PROGRAMMING POINTS
PROGRAMMING POINTS
68K, 1/4W, +/-5%
EOL RESISTOR
P/N 140-034728
*REFER TO PAD-4 INSTALLATION INSTRUCTIONS, P/N 315-050217, FOR PROPER SETTING OF
SWITCH 4. THE AUXILIARY POWER OUTPUT MUST BE CONFIGURED TO “ALWAYS ON”.
