1 Safety notes 22.05.2018
1.2 Mounting notes
∂ Ensure that the relevant national safety regulations are complied with
∂ In the geographical areas where DIN regulations apply, the requirements of VDE
must be satisfied, especially the standards DIN/VDE 0100, 0550, and
DIN/VDE 0722
∂ M5 fixing screws in the LMV5 housing with a maximum tightening torque of 2 Nm.
The thread of the mounting plate should be checked with regard to the maximum
tightening torque in the application or defined accordingly.
2
0
0
1
8
2
2
3
2
2
5
0
M
o
u
n
t
i
n
g
p
l
a
t
e
S
i
z
e
>
2
m
m

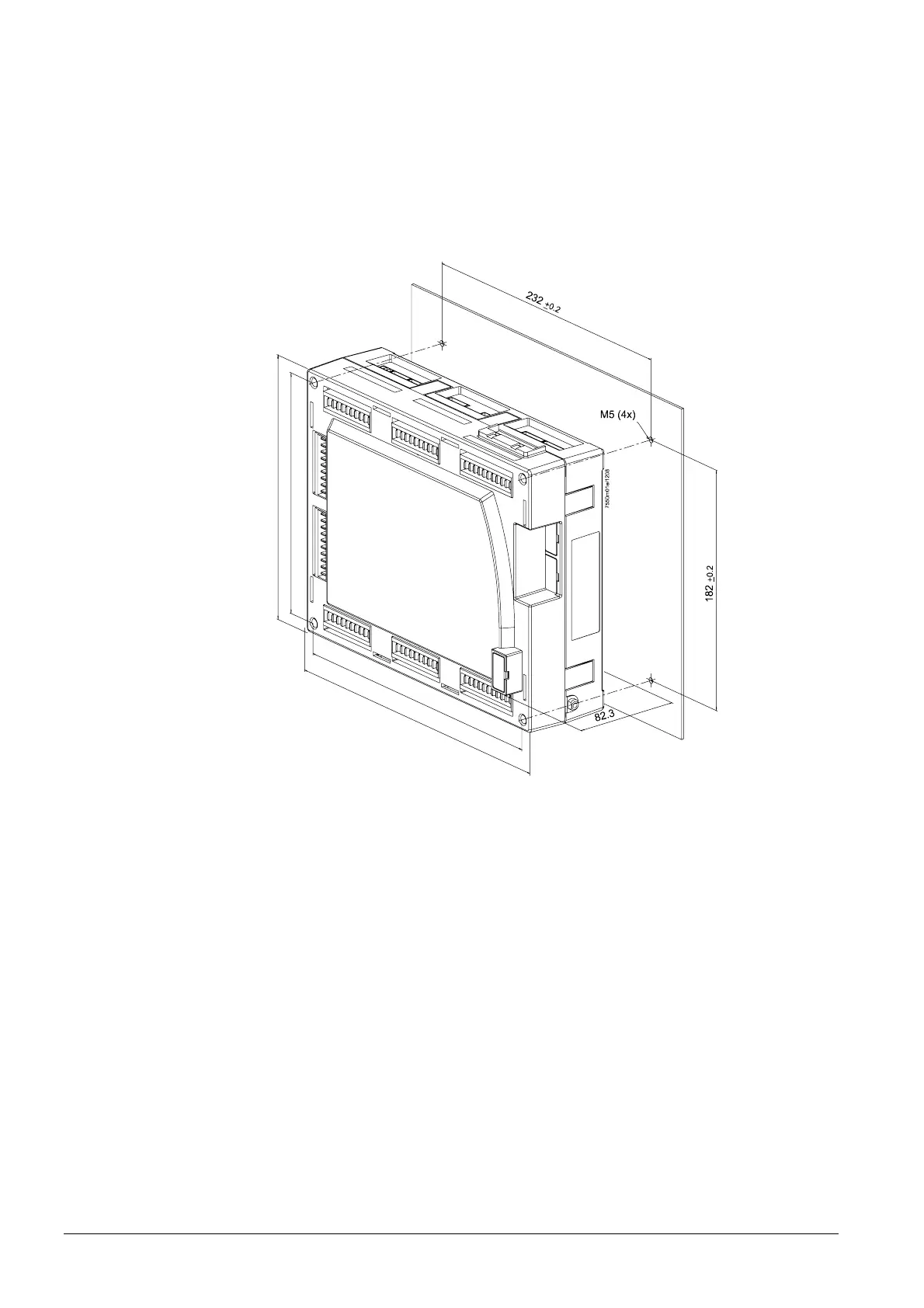

Figure 1: Mounting the LMV5
Notes on mounting the LMV5
