Building Technologies Basic Documentation LMV5... CC1P7550en
18 VSD module 22.05.2018
18.3 Connection terminals
Also refer to chapter Connection terminals / coding of connectors.

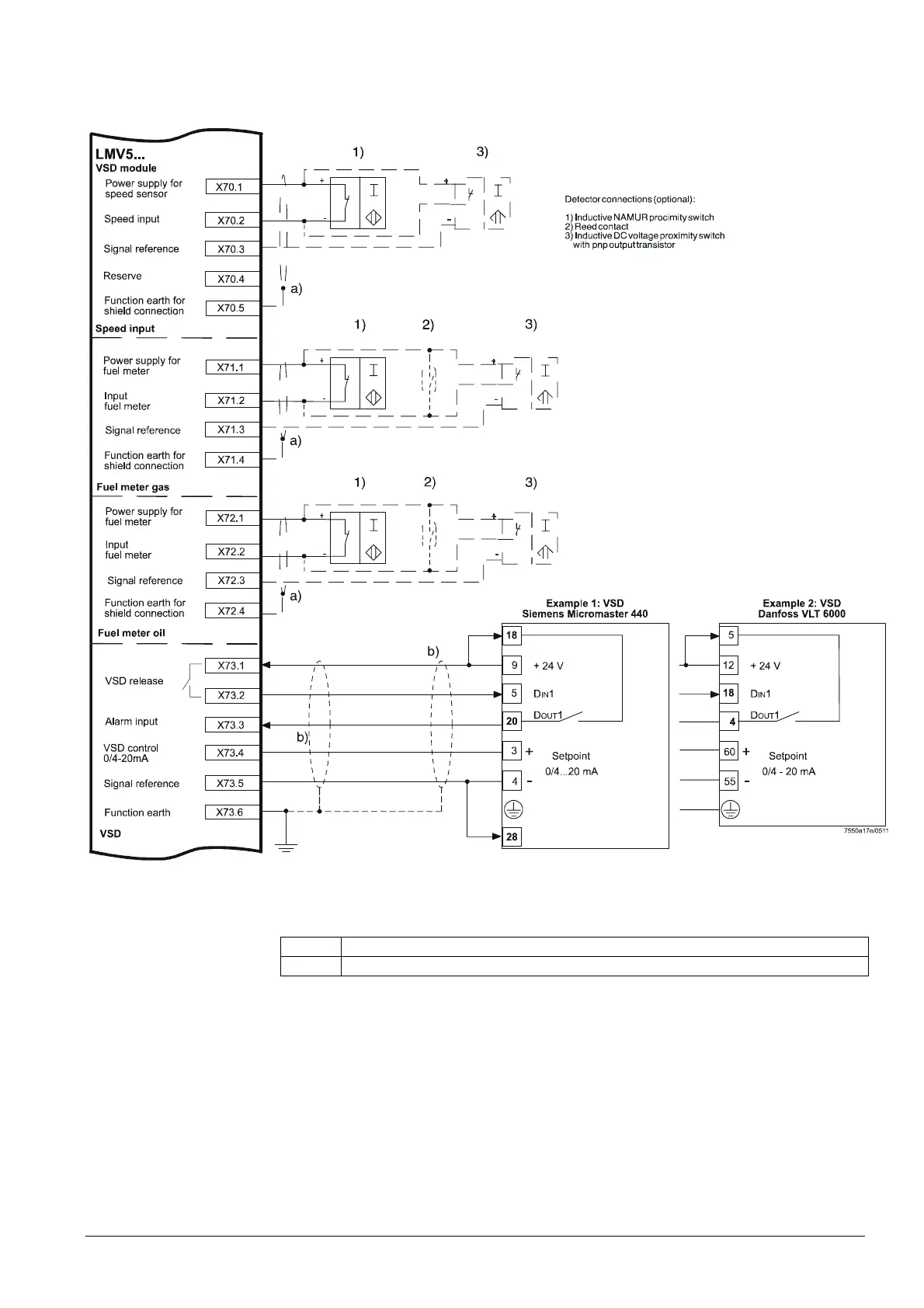

Figure 115: Connection terminals of LMV5
Shielding:
a) Optional shield connection for arduous environmental conditions
b) Alternative connection of VSD, refer to documentation of used VSD
