Siemens LMV50 series

To Next Page

To Previous Page

191/327

Building Technologies Basic Documentation LMV5... CC1P7550en

10 Connection terminals / coding of connectors 22.05.2018

10.2 Connection terminals LMV51.000x1 /

LMV51.000x2 / LMV51.040x2

7550z44/1114

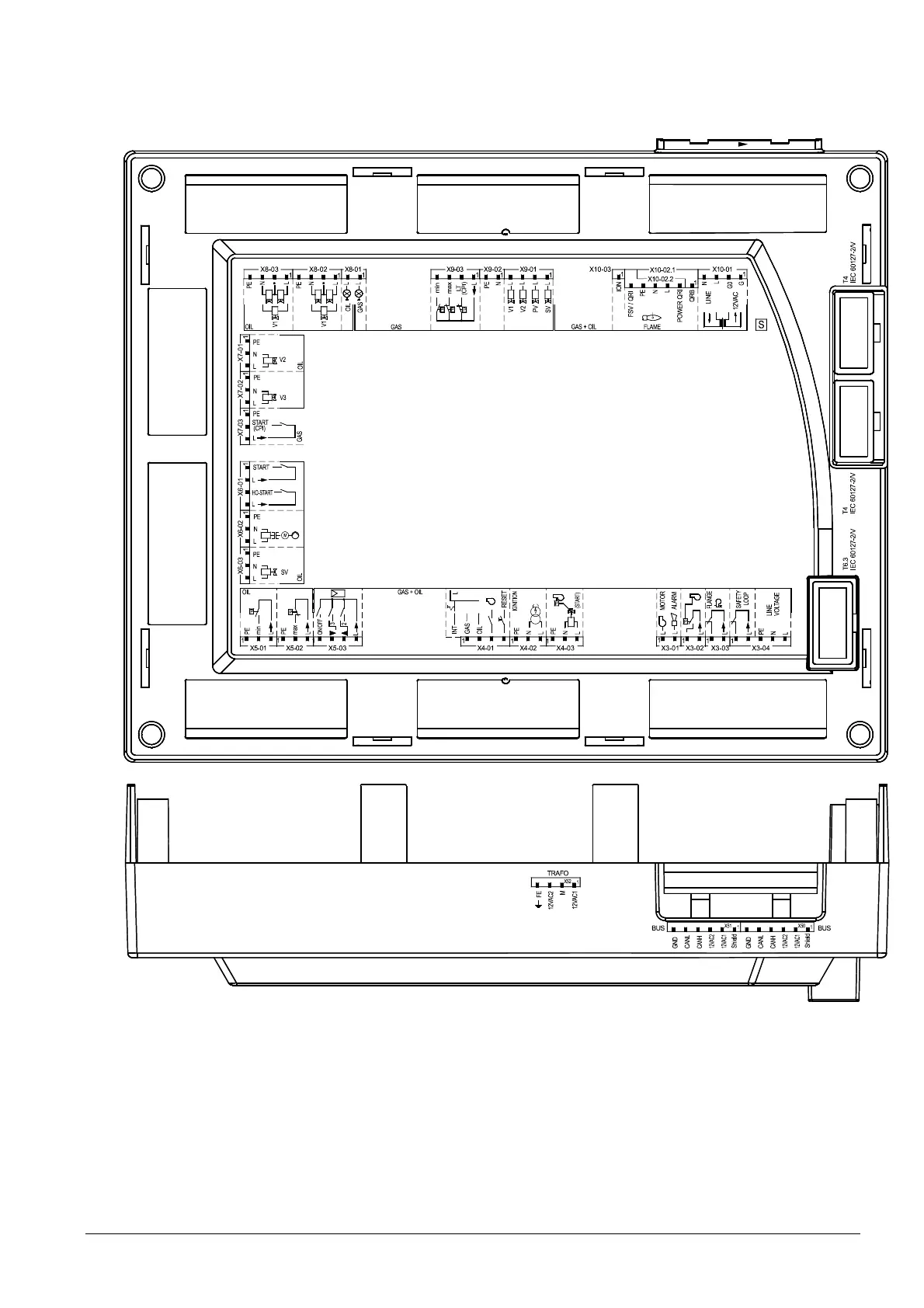

Figure 87: Connection terminals LMV51.000x1 / LMV51.000x2 / LMV51.040x2
