11 Description of connection terminals (AC 120 V) 22.05.2018
Description of connection terminals (cont’d)
Terminal marking
Connection symbol
Safety class Input Output
Description of connections Electrical rating

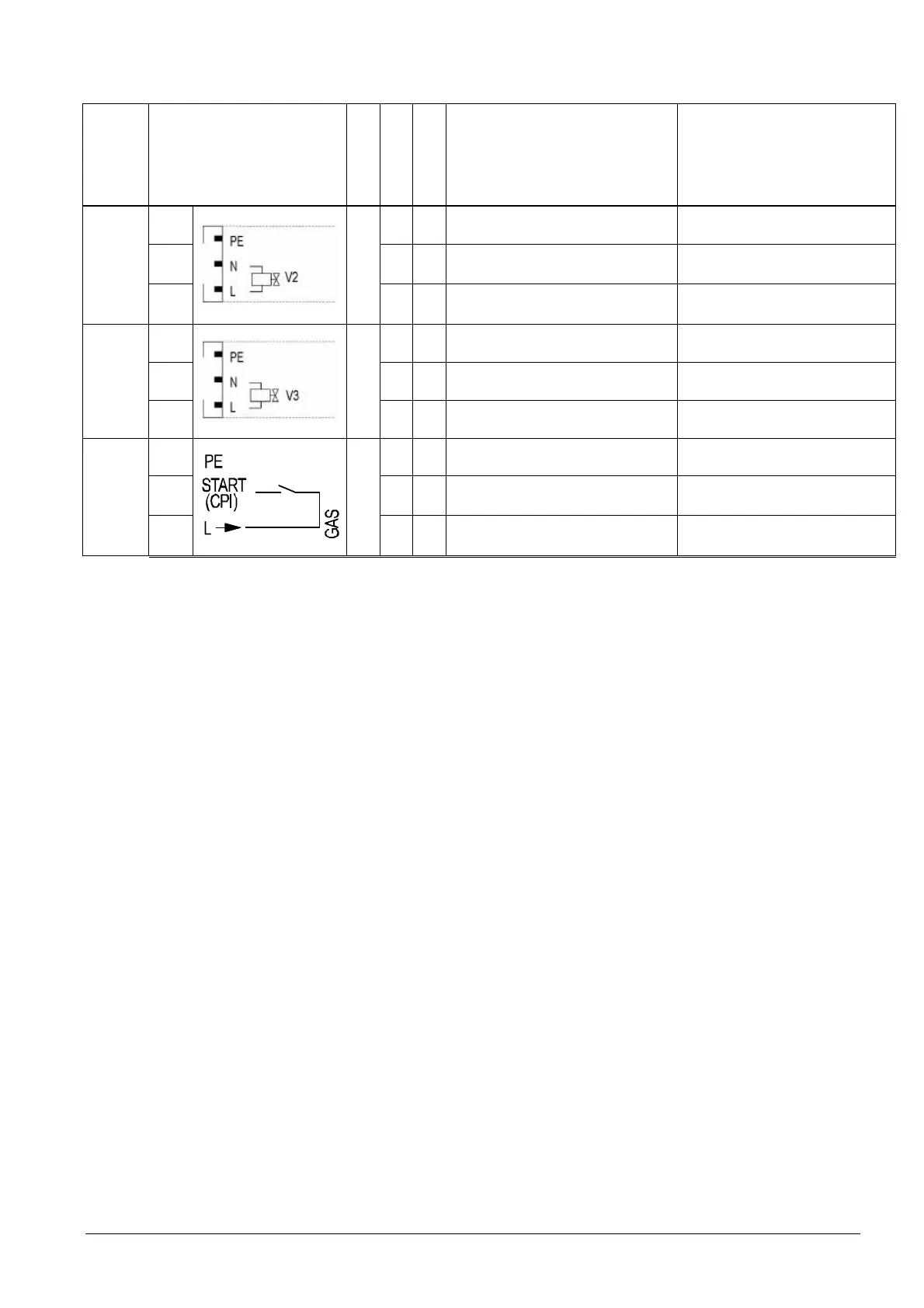

X7-01
PIN 1
I
˜ Protective earth (PE)
PIN 2
˜ Neutral conductor (N)
PIN 3 Fuel valve 2 (oil)
AC 120 V +10 % / -15 %, 50...60 Hz,
1.6 A, (pilot duty), cosι 0.4
X7-02
PIN 1
I
˜ Protective earth (PE)
PIN 2
˜ Neutral conductor (N)
PIN 3 Fuel valve 3 (oil)
AC 120 V +10 % / -15 %, 50...60 Hz,
1.6 A, (pilot duty), cosι 0.4
X7-03
PIN 1
I
˜ Protective earth (PE)
PIN 2 ˜ Start release gas / oil CPI
AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 3 ˜ Power signal (reserve)
AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
