Siemens LMV50 series

207/327
Building Technologies Basic Documentation LMV5... CC1P7550en
12 Description of connection terminals (AC 230 V) 22.05.2018

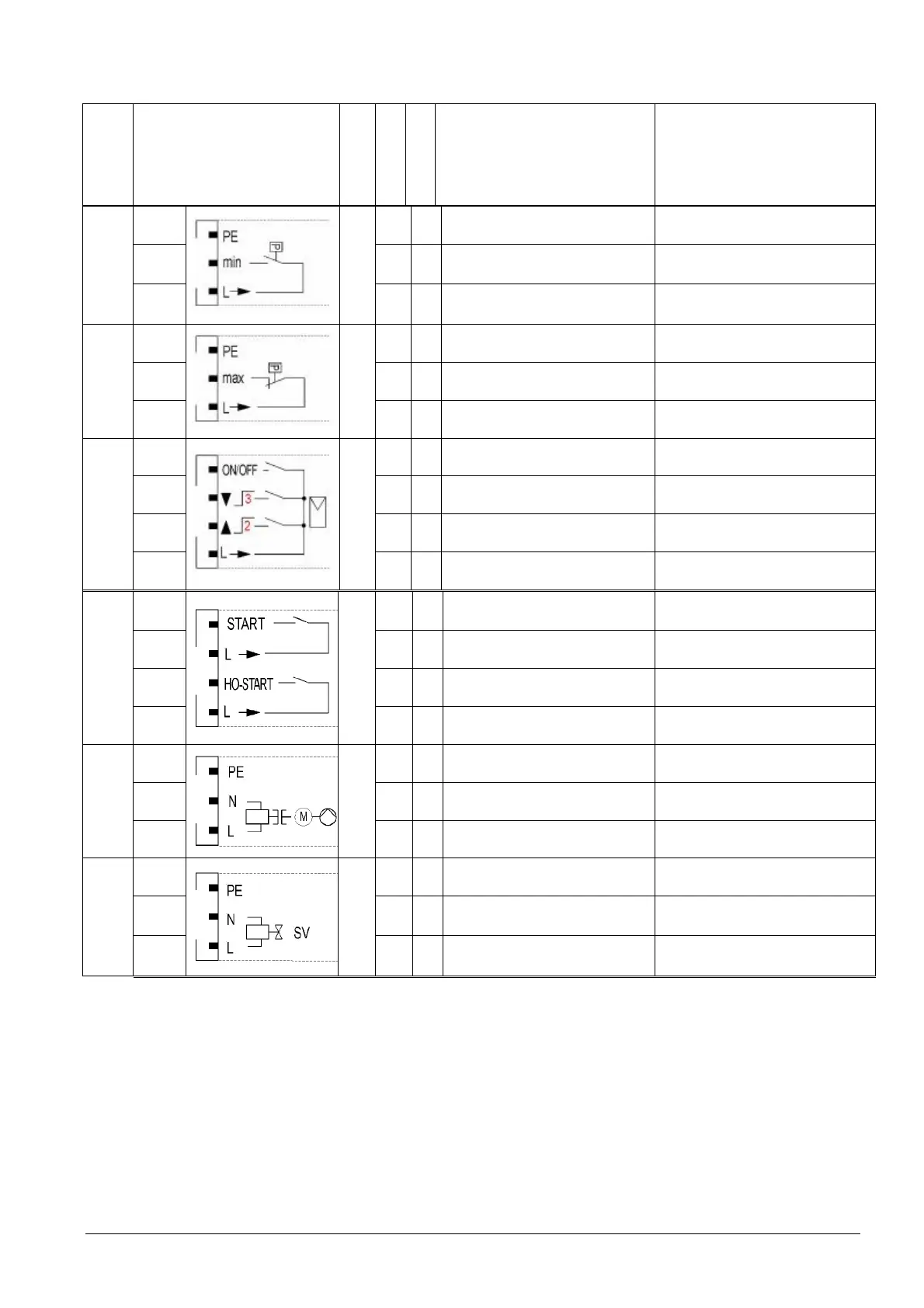

Description of connection terminals (cont’d)
Terminal markings
Connection symbol
Safety class Input Output
Description of connections Electrical rating
X5-01
PIN 1
I
˜ Protective earth (PE)
PIN 2 ˜ Pressure switch min-oil (Pmin-oil)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 3 ˜
Power signal for pressure switch-
min-oil (Pmin-oil)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
X5-02
PIN 1
I
˜ Protective earth (PE)
PIN 2 ˜ Pressure switch-max-oil (Pmax-oil)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 3 ˜
Power signal for pressure switch-
max-oil (Pmax-oil)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
X5-03
PIN 1
I
˜ Controller (ON / OFF)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 2 ˜ Controller closes / stage 3
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 3 ˜ Controller opens / stage 2
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 4 ˜ Power signal for control of controller
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
X6-01
PIN 1
I
˜ Start release oil (START)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 2 ˜
Power signal start release oil
(START)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
PIN 3 ˜ Direct heavy oil start
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN 4 ˜ Power signal direct heavy oil start
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
X6-02
PIN 1
I
˜ Protective earth (PE)
PIN 2
˜ Neutral conductor (N)
PIN 3 ˜ Oil pump / magnetic coupling
AC 230 V +10 % / -15 %, 50...60 Hz,
2 A, cosι 0.4
X6-03
PIN 1
I
˜ Protective earth (PE)
PIN 2
˜ Neutral conductor (N)
PIN 3 Fuel valve (shut-off valve-oil)
AC 230 V +10 % / -15 %, 50...60 Hz,
1 A, cosι 0.4
