12 Description of connection terminals (AC 230 V) 22.05.2018

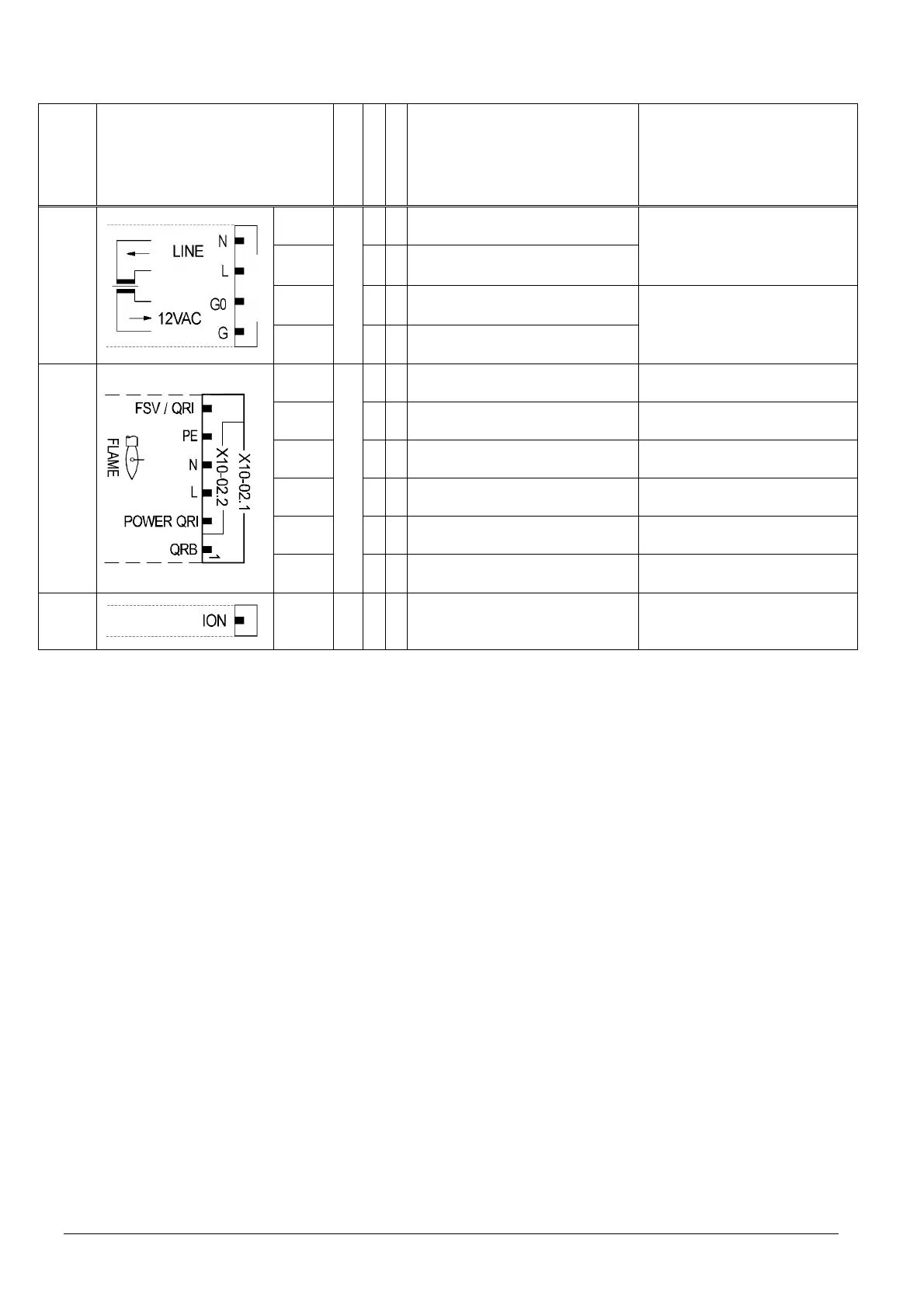

Description of connection terminals (cont’d)
Terminal markings
Connection symbol
Safety class Input Output
Description of connections Electrical rating
X10-01
PIN 4
I
˜ Neutral conductor (N)
AC 230 V +10 % / -15 %, 50...60 Hz,
Max. 1 mA
PIN 3
˜ Power signal transformer
PIN 2
˜ AC power signal G0
AC 12 V +10 % / -15 %, 50...60 Hz,
Max. 1.2 mA
PIN 1
˜ AC power signal fan (G)
X10-02
PIN 6
I
˜ QRI (IR detector) / QRA7 signal voltage Umax DC 5 V
PIN 5
˜ Protective earth (PE)
PIN 4
˜ Neutral conductor (N)
PIN 3
˜ Power signal
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
PIN 2
˜ QRI (IR detector) / QRA7 power supply
DC 14 / 21 VC
Imax 100 mA
PIN 1
˜ QRB signal voltage Max. DC 8 V
X10-03
PIN 1
I
˜
Ionization probe (ION) (alternatively
QRA2/ QRA4 / QRA10, refer to chapter
Description of inputs and outputs)
Umax (X3-04-PINS),
Imax. 0.5 mA
