13 Mounting , electrical installation and service 22.05.2018
AGG5.641 (cable type 1) LMV5 ♠ actuator
Shield
7
5
5
0
z
0
1
e
/
0
6
1
3

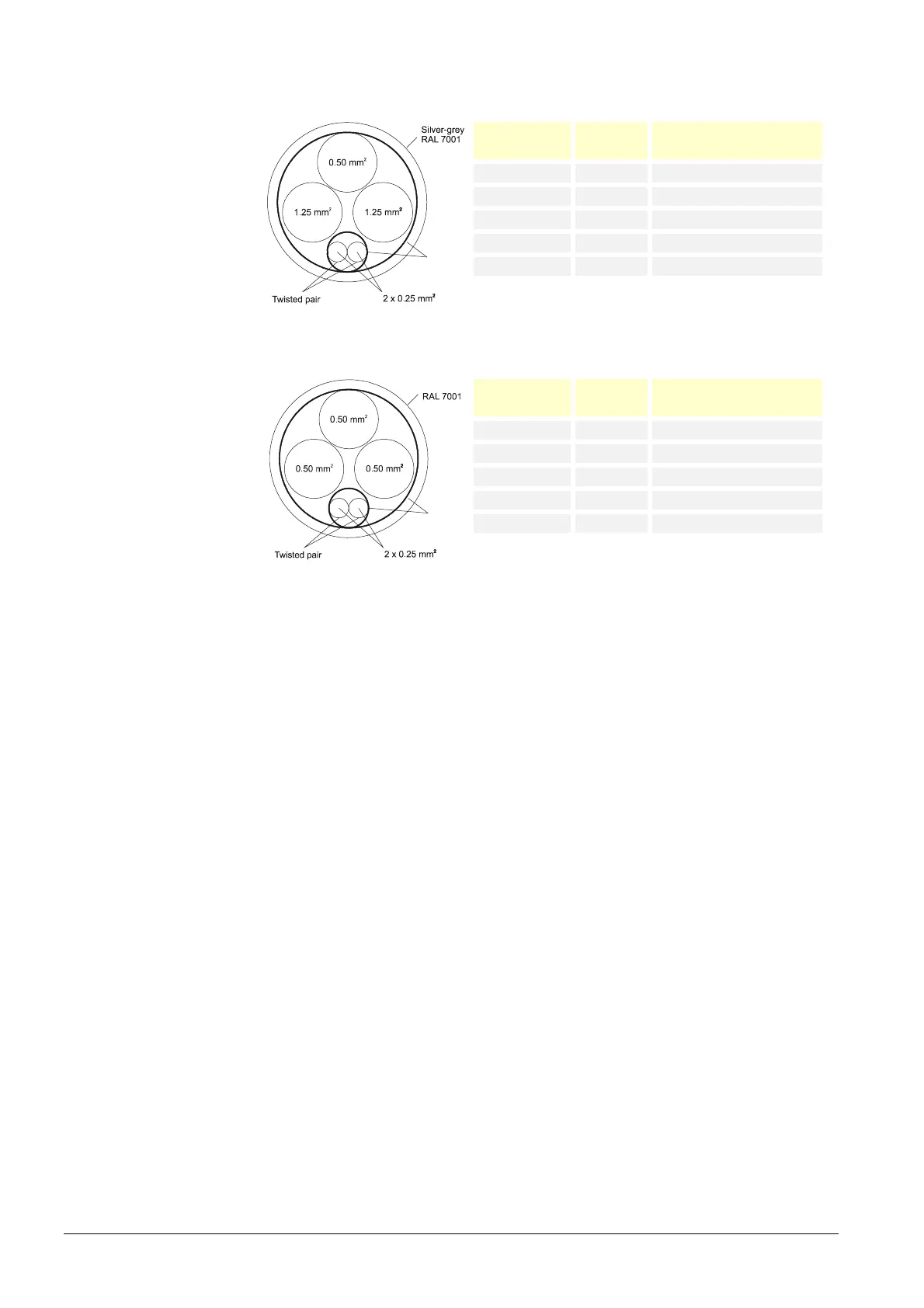

Figure 100: AGG5.641
Connection Color Cross-sectional area
in mm²
12 VAC 1 White 1.25
12 VAC 2 Brown 1.25
CANH Yellow 0.25
CANL Green 0.25
GND Black 0.5
AGG5.631 (cable type 2) LMV5 ♠ AZL5
Shield
Silver-grey
7
5
5
0
z
0
2
e
/
0
6
1
3
Figure 101: AGG5.631
Connection Color Cross-sectional area
in mm²
12 VAC 1 White 0.5
12 VAC 2 Brown 0.5
CANH Yellow 0.25
CANL Green 0.25
GND Black 0.5
Types of cable
