Mezzanine Modules
A mezzanine module conditions the signal from a non-conductivity detector. The mezzanine
plugs into the Base3 DPM in order to tailor the DPM for a specific measurement.
Three primary types of mezzanine are available to accommodate FID and FPD detectors, and
various detectors that produce a scaled analog output (AI) mezzanine. Some of the
mezzanines have a dual range function for maximum flexibility. See the table below for details
relating to the various mezzanine options.
The AI mezzanine can be used for reading a detector voltage signal from a specialized or third
party detector, such as the Valco PDD, where the device only supplies a scaled voltage output.
The AI signal will be treated like a normal detector signal, with a 50% balance range.
Table 3-1 Mezzanine Part Number Descriptions
Mezzanine Detector Sub
Module Type
Usage Normal
Range
Alternate
Range
2020960-001 FID Low level FID 0.2nA none
2020960-003 Standard FID 1nA 20nA
2021328-002 Large Scale FID 100nA 1000nA
2021328-001 FPD FPD 100nA none
2021328-003 FPD, 0.18 Hz Filter 100nA none
2021326-001 Universal Voltage AI ±1V ±10V
1901614-001
Dummy Plug
When Base DPM is Filament only,
and no mezzanine required
none none
3.6 Base3DPM Status Indicator LEDs

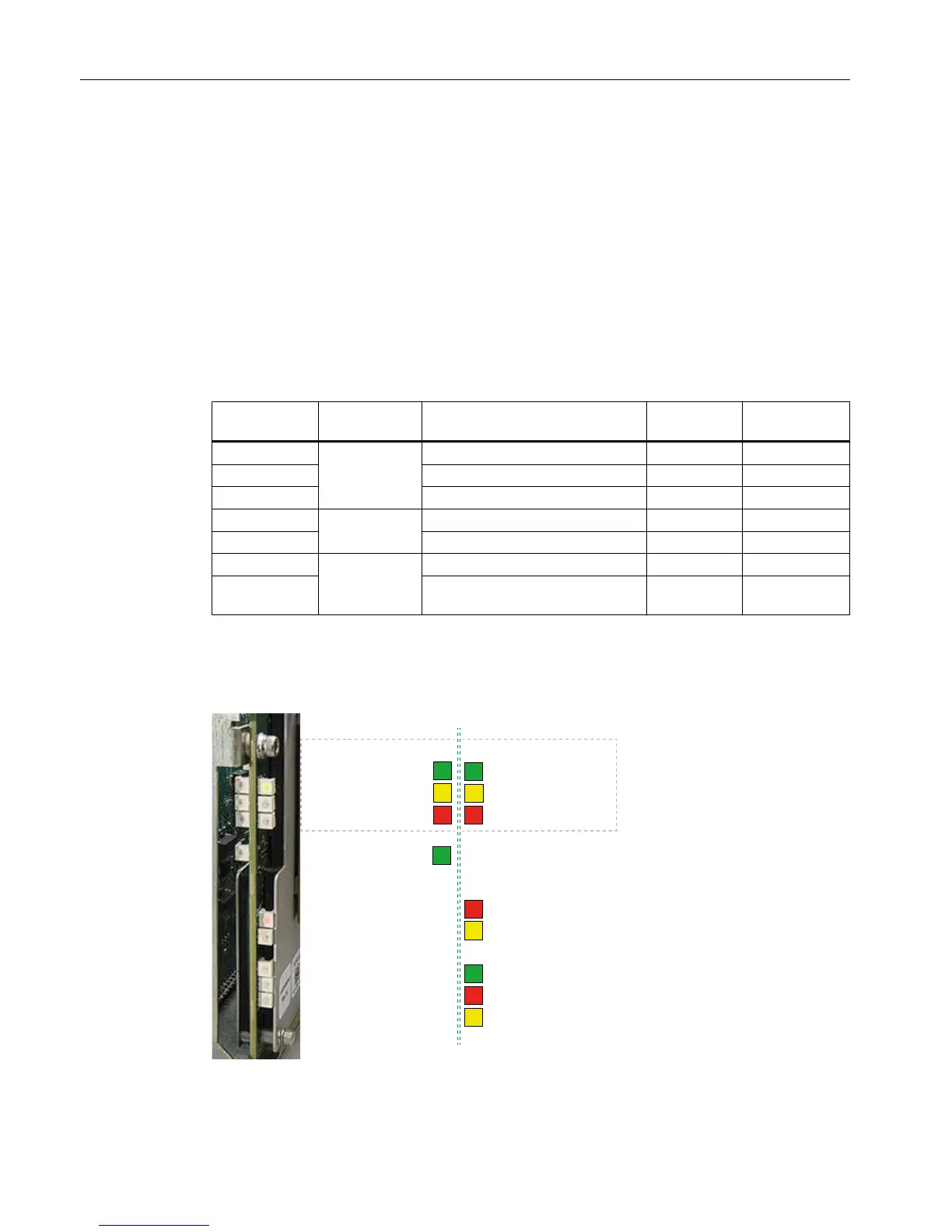

Figure 3-11 Base3DPM Status LEDs
Flame Photometric Detector
3.6 Base3DPM Status Indicator LEDs
Maxum Edition II Detectors
28 Service Manual, May 2018, A5E42019847001
